The Sunsynk 10kW 21.28kWh 51.2V Self Consumption Solar Power System is a high-capacity single-phase hybrid solar system designed for larger homes and small businesses that need substantial solar production, lithium storage and reliable backup capability.

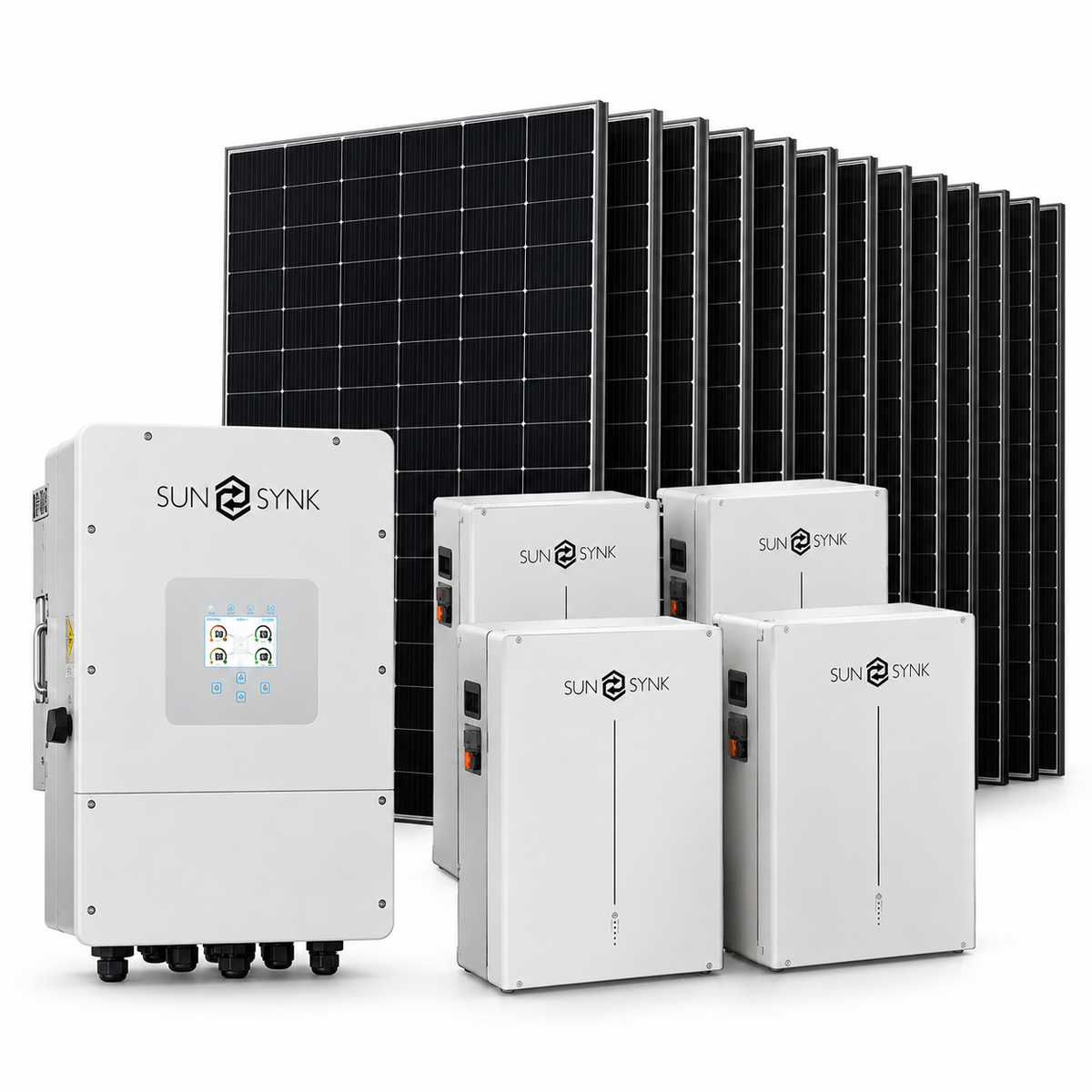

The system combines a Sunsynk 10kW hybrid inverter with 21.28kWh of Sunsynk lithium storage and a 7.08kWp Jinko solar array. The battery bank uses four 5.32kWh 51.2V Sunsynk batteries to provide the current capability required for the 10kW inverter.
System Includes
- 1 x Sunsynk 10kW 48V Single Phase Hybrid Inverter
- 4 x Sunsynk Wall Mount 5.32kWh 51.2V Lithium Batteries — 21.28kWh total
- 12 x Jinko Tiger Neo 590W TOPCon N-Type Dual Glass Bifacial Solar Panels — 7.08kWp total
- 1 x Eaton Bussmann KETO-2 Battery Disconnector with 315A Fuses
- 2 x Onesto 63A 240V–415V 6kA AC 2 Pole Circuit Breakers
- 1 x Earth Neutral Bridge Single Phase 50A AC Protection Box
- 1 x 600V Protection Box, 2 Inputs / 2 Outputs, 16A Isolator with Type I/II SPD
- 3 x Sustainable 70mm² single-core battery cable pairs, 1m
- 50m x Sustainable 4mm² black double-insulated halogen-free solar cable
- 2 x MC4-EVO2 Connector Twin Packs
- 2 x MC4 Pre-terminated Cables, 2m
- 1 x PV on Roof and Hazard Labels Pack
Solar Array
The 12-panel array provides 7.08kWp of installed PV capacity. A typical two-string arrangement of six modules per MPPT keeps the array within the inverter's operating voltage limits.
Battery Storage
Four 5.32kWh Sunsynk lithium batteries provide 21.28kWh of nominal storage. This four-battery configuration is selected to better match the current demand of the 10kW inverter when operating from battery power.
Roof Mounting Options
Select the applicable K2 Systems roof mounting option for tile, IBR, corrugated, IBR MiniRail, IBR/Corrugated SingleRail or standing-seam/KlipLok roofs. Mounting quantities are sized for the 12-panel array.
Important: This is a supply-only solar power system. Final installation design, string layout, cable sizing, protection selection and compliance must be confirmed by a suitably qualified installer for the specific site.
