The SunSwim range of heat pumps focuses on providing a consistently pleasant swimming temperature
while keeping monthly running costs as low as possible. When maintained correctly, it adds comfort, efficiency,
and long-term value to your home.
Key Features
- Cutting-edge inverter technology keeps your pool warm even in colder weather
- WiFi-controlled inverter-type heat pump
- One of the quietest and most energy-efficient units available
- Low startup current, making it friendly for PV/solar power systems
- Relatively easy to install and maintain
- Rust-proof, aesthetically pleasing casing

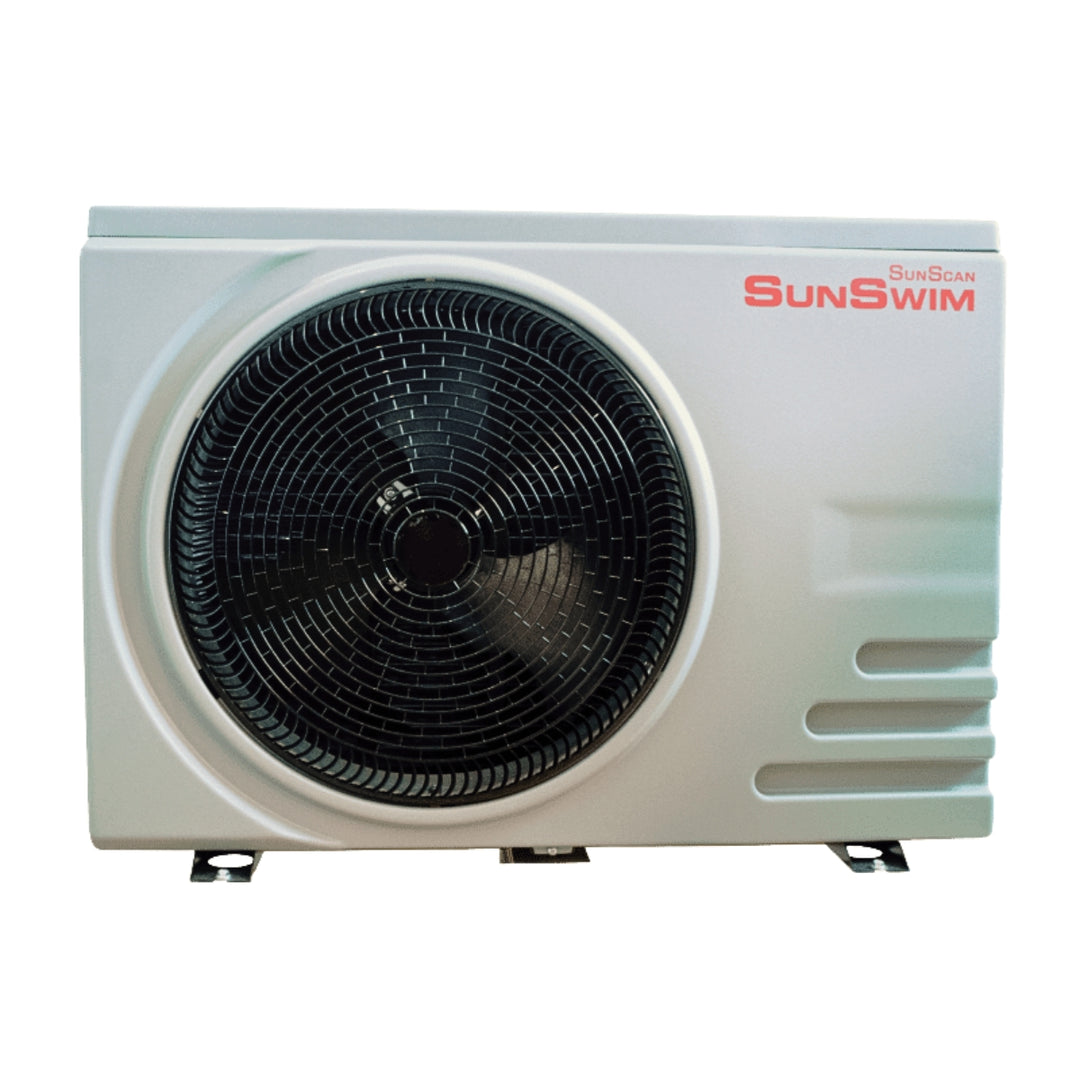

Included with the SunScan SunSwim 7.6kW Pool Heat Pump
- SunSwim 7.6kW inverter pool heat pump (suitable for pools up to 38 000L with blanket)
- Cantilever arm (per set)
- Support channel for heat pumps
- Spring nut
Technical Specifications
| Model |
SSP-INV007 |
| kW Rating |
7.6 kW |
| Maximum Pool Size (with blanket) |
38 000 L |
| Heating Capacity (Air 26°C, Hygro 80%, Water 26°C → 28°C) |
|---|
| Heating Capacity (kW) |
7.62 ~ 1.75 |
| Power Input (kW) |
1.10 ~ 0.13 |
| Current Input (A) |
5 ~ 0.59 |
| COP |
14.52 ~ 6.91 |
| Heating Capacity (Air 15°C, Hygro 70%, Water 26°C → 28°C) |
|---|
| Heating Capacity (kW) |
5.74 ~ 1.33 |
| Power Input (kW) |
1.16 ~ 0.18 |
| Current Input (A) |
5.27 ~ 0.82 |
| COP |
7.53 ~ 4.94 |
| Cooling Capacity (Air 35°C, Water 29°C → 27°C) |
|---|
| Cooling Capacity (kW) |
4.06 ~ 1.12 |
| Power Input (kW) |
1.15 ~ 0.17 |
| Current Input (A) |
5.23 ~ 0.77 |
| EER |
6.48 ~ 3.52 |
| Power Supply |
230V / 1 / 50Hz |
| Max Power Input |
2.053 kW |
| Rated Current |
5.27 A |
| Refrigerant |
R32 / 380 g |
| Heat Exchanger |
Titanium |
| Air Flow Direction |
Horizontal |
| Water Flow Volume |
2.5 m³/h |
| Defrost Type |
4-way valve |
| Working Temperature Range |
-15°C to 43°C |
| Noise Level |
≤ 43 dB(A) |
| Casing Material |
ABS plastic |
| Net Dimensions (L × W × H) |
836 × 379 × 591 mm |
| Package Dimensions (L × W × H) |
930 × 400 × 716 mm |
| Net Weight |
42 kg |
| Gross Weight |
51 kg |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
