Staubli Multi Contact Female EVO2 MC4 Coupler

Staubli Multi Contact Female EVO2 MC4 Coupler

Staubli Multi Contact Female EVO2 MC4 Coupler

Regular price R 59.00 incl. VAT Sale price R 44.00 incl. VATSave R 15
R 3826 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Product Description:

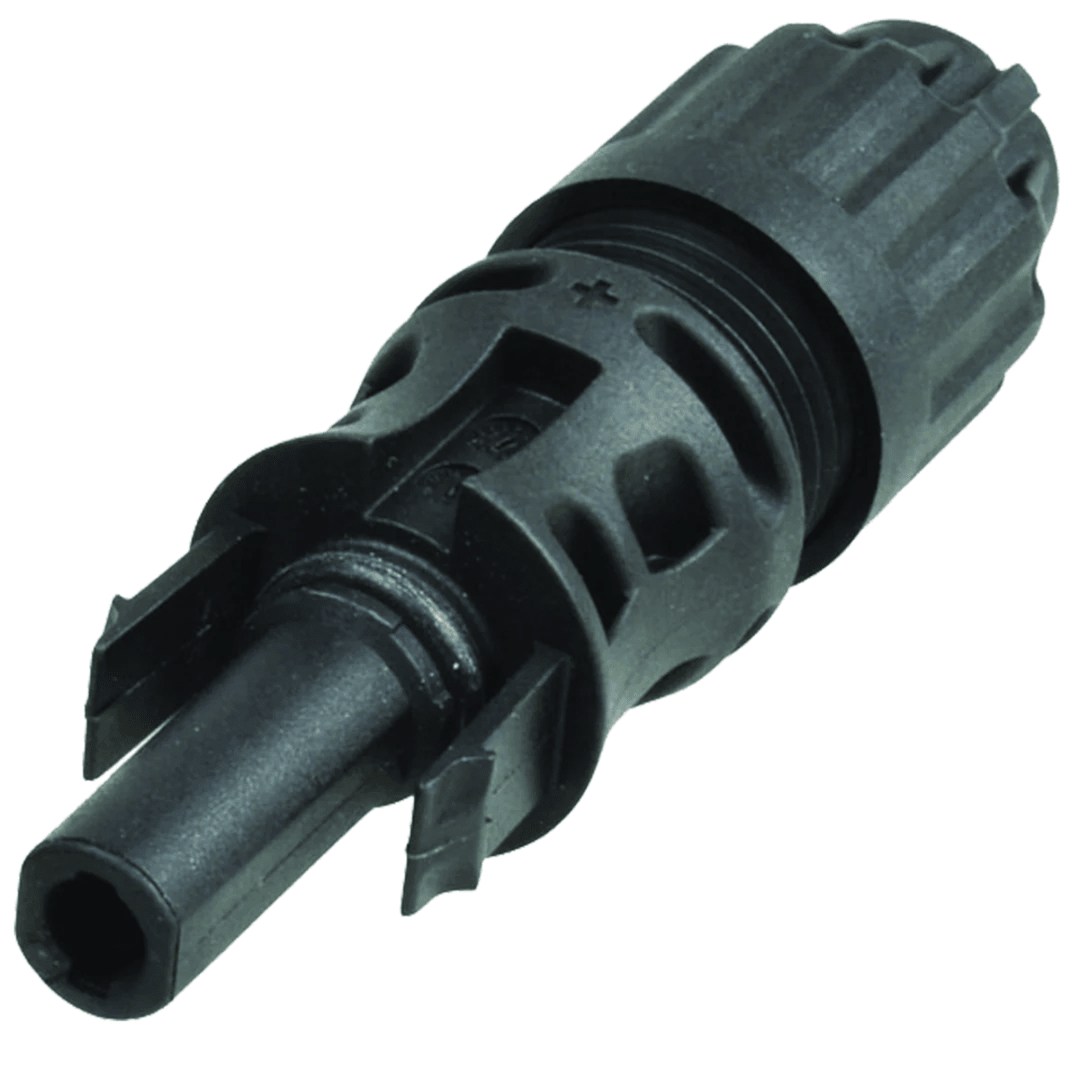

Staubli PPV-KBT4-EVO 2/6I-UR Cable coupler, female, MC4-Evo2

Technical Specifications

Staubli PPV-KBT4-EVO 2/6I-UR Cable coupler, female, MC4-Evo2

Connector system Ø 4 mm

  • Ø range of cable gland: 4.7 - 6.4mm
  • Conductor cross section: 4 and 6mm²
  • Rated voltage: 1500 V DC (TÜV, UL, JET)
  • Rated current: TÜV (85°C)
  • 39 A (2,5 mm² / 14 AWG)
  • 45 A (4,0 mm² / 12 AWG)
  • 53 A (6,0 mm² / 10 AWG)
  • 69 A (10,0 mm² / 8 AWG)
  • Rated impulse voltage: 16 kV (1500 V)
  • Ambient temperature range: -40°C ... +85°C (TÜV / UL)
  • Upper limiting temperature: 115°C (TÜV)
  • Degree of protection, rated: IP65 / IP68 (1h / 1m)

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
