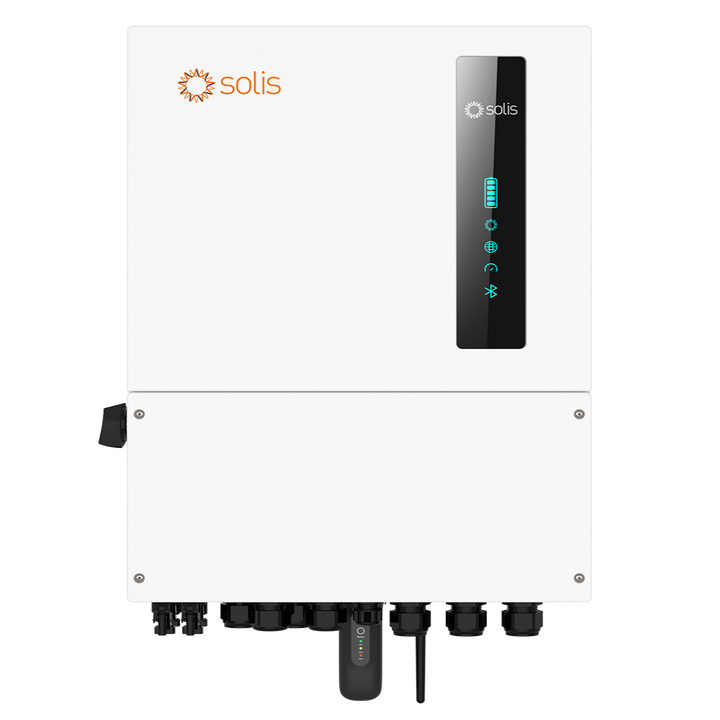

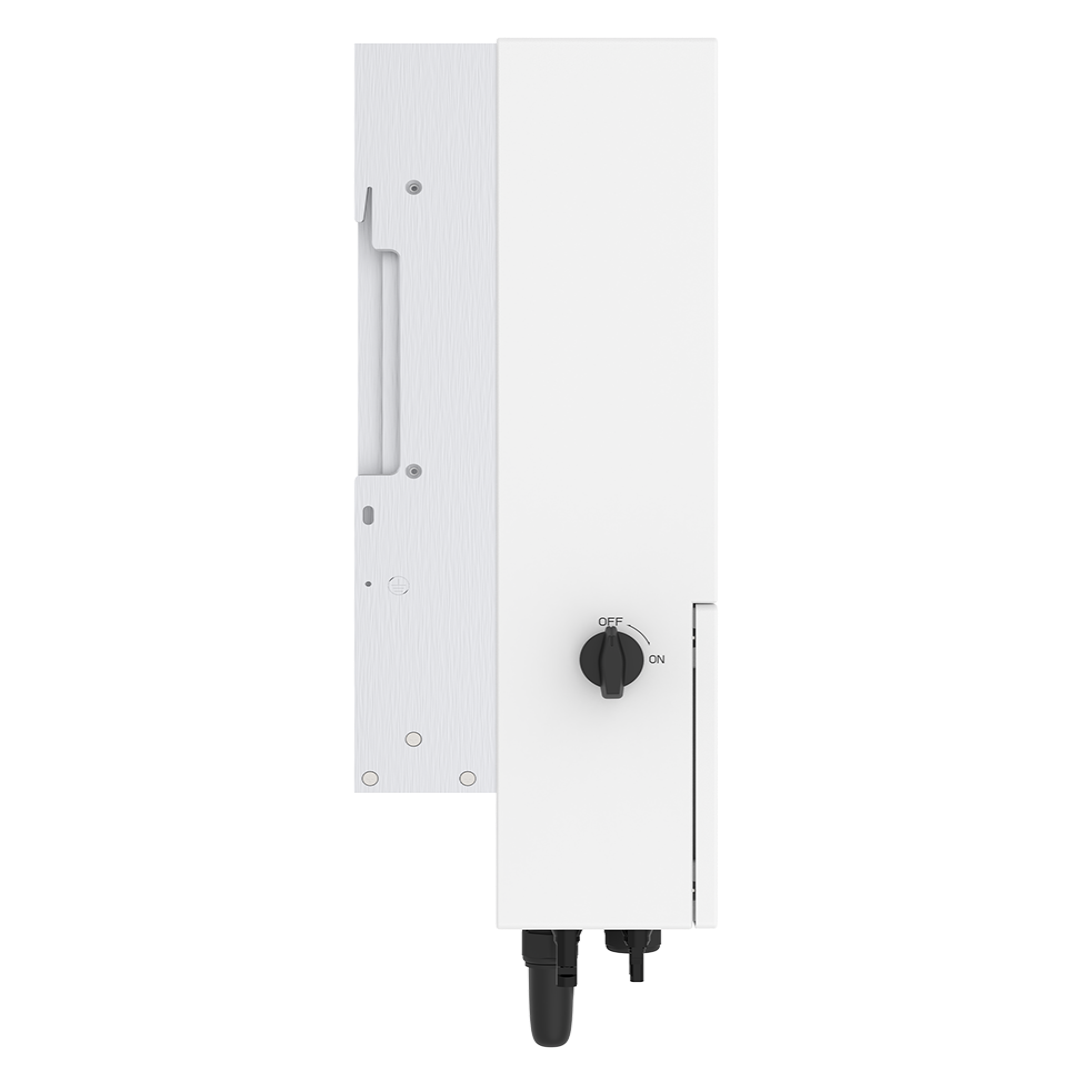

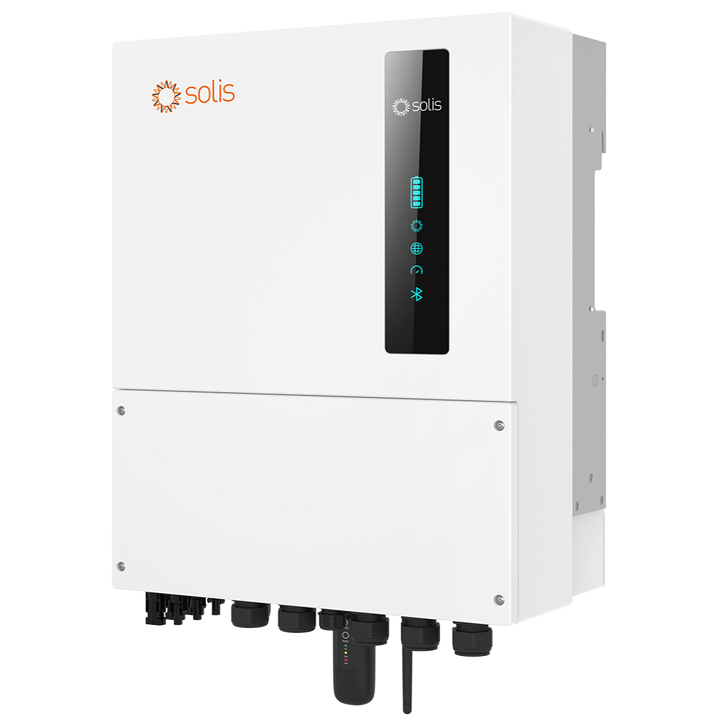

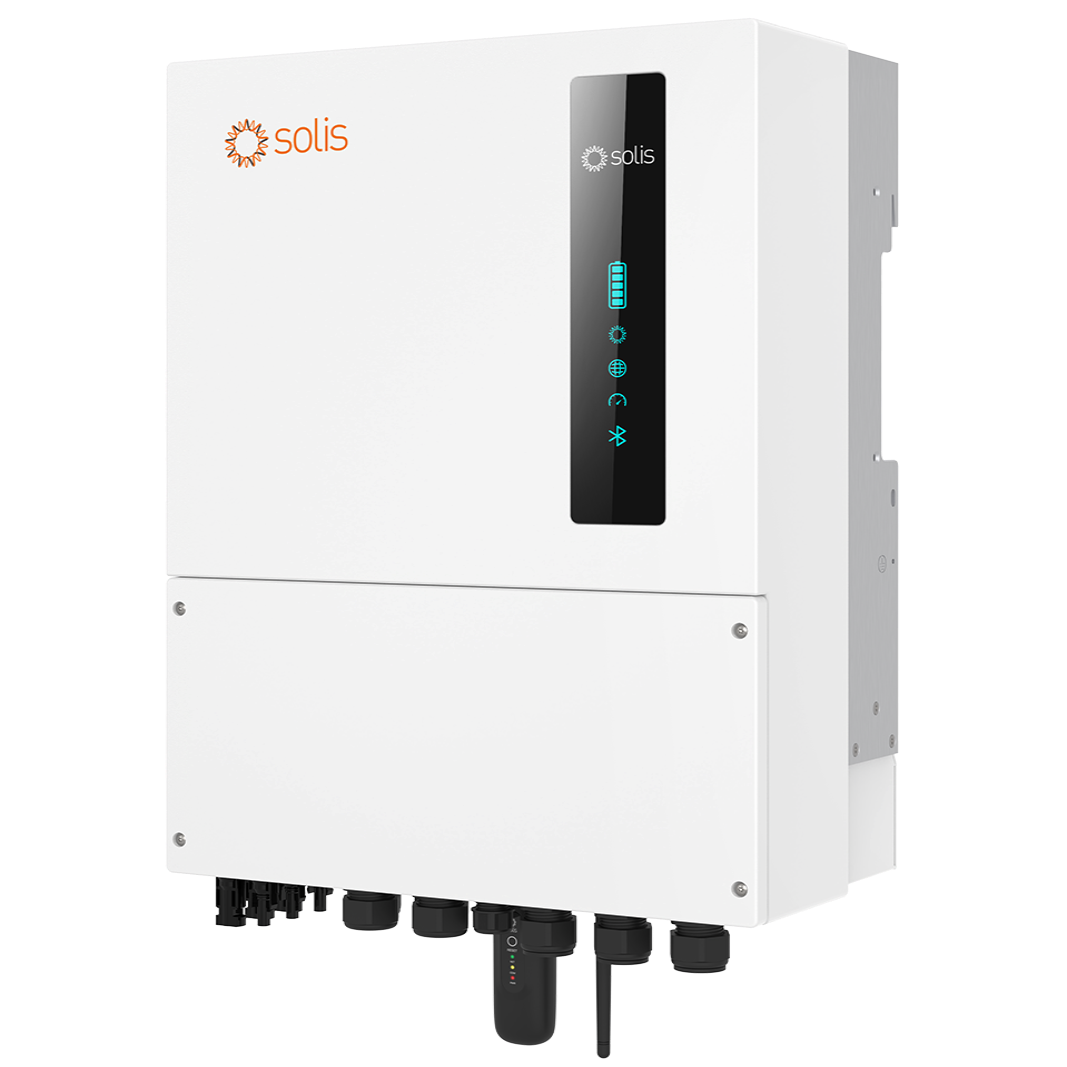

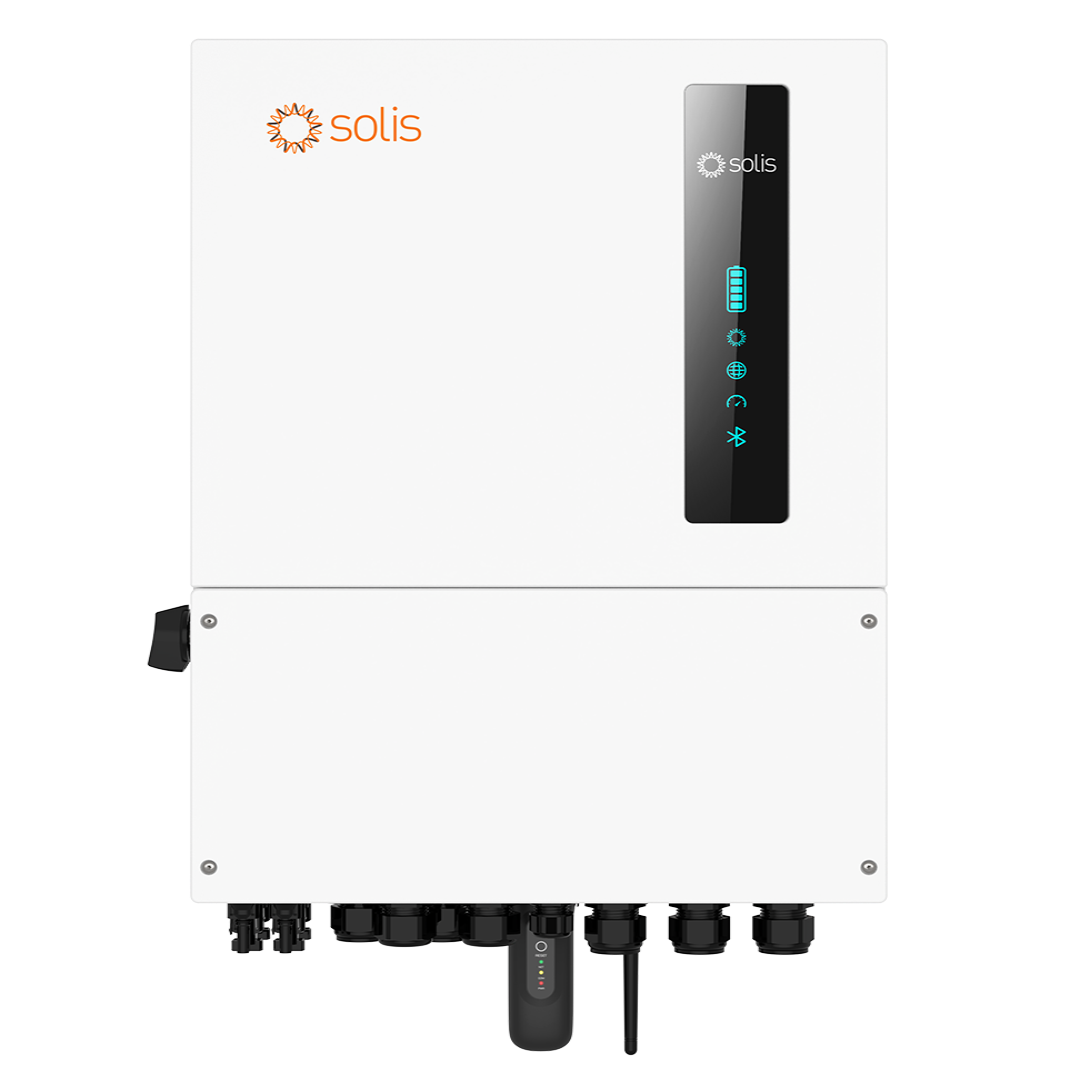

Solis S6 Pro 6kW Advanced Hybrid Inverter

Solis S6 Pro 6Kw Advanced Hybrid Inverter
Solis S6 Pro 6Kw Advanced Hybrid Inverter
Solis S6 Pro 6Kw Advanced Hybrid Inverter
Solis S6 Pro 6Kw Advanced Hybrid Inverter
Solis S6 Pro 6Kw Advanced Hybrid Inverter

Solis S6 Pro 6kW Advanced Hybrid Inverter

Regular price R 28,008.00 incl. VAT Sale price R 22,406.00 incl. VAT Save R 5,602
R 19,48348 excl. VAT
incl. VAT /


Tax included. Shipping calculated at checkout.
  • Secure online payments

Product Description:

S6-EH1P(3-6)K-L-PRO series energy storage inverter is designed for residential PV energy storage system,Support multiple parallel machines to form a single-phase or three-phase system with maximum power of 36kW. With UPS level switching time, 10s surge power overload and critical loads. Support 135A Charge and discharge capacity, provide higher energy throughput density. A variety of intelligent protection functions make home power supply safe and secure.

Features

  • Automatic UPS switching
  •  Up to 135A max charge/discharge current
  •  6 customisable charge/discharge time settings
  •  10 second 200% surge power backup overload capability
  •  Supports 1ph and 3ph flexible connection with max 36kW in parallel
  •  Supports peak shaving control in both "self-use" and "generator" mode
  •  Generator connectivity with multiple input methods and automatic generator On/Off control
  •  Compatible with lead-acid and lithium batteries, with multiple battery protection features

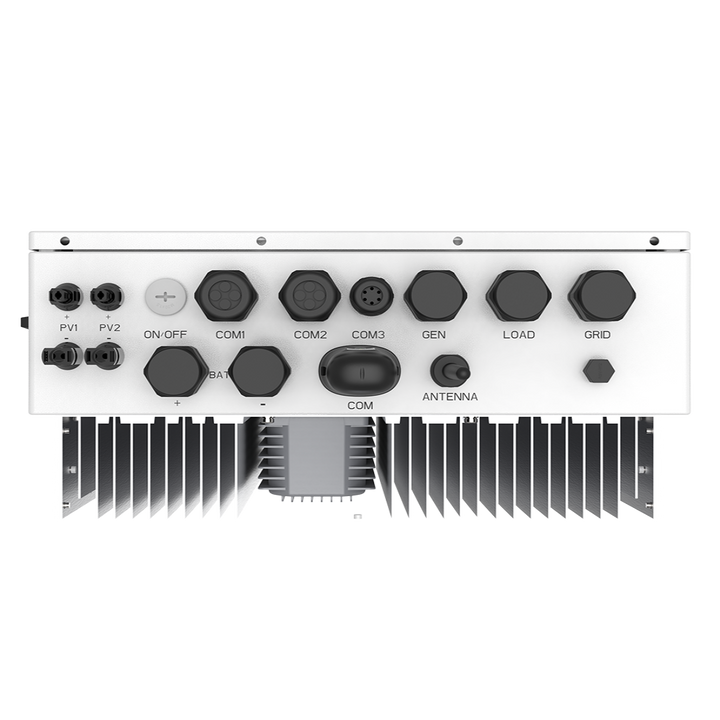

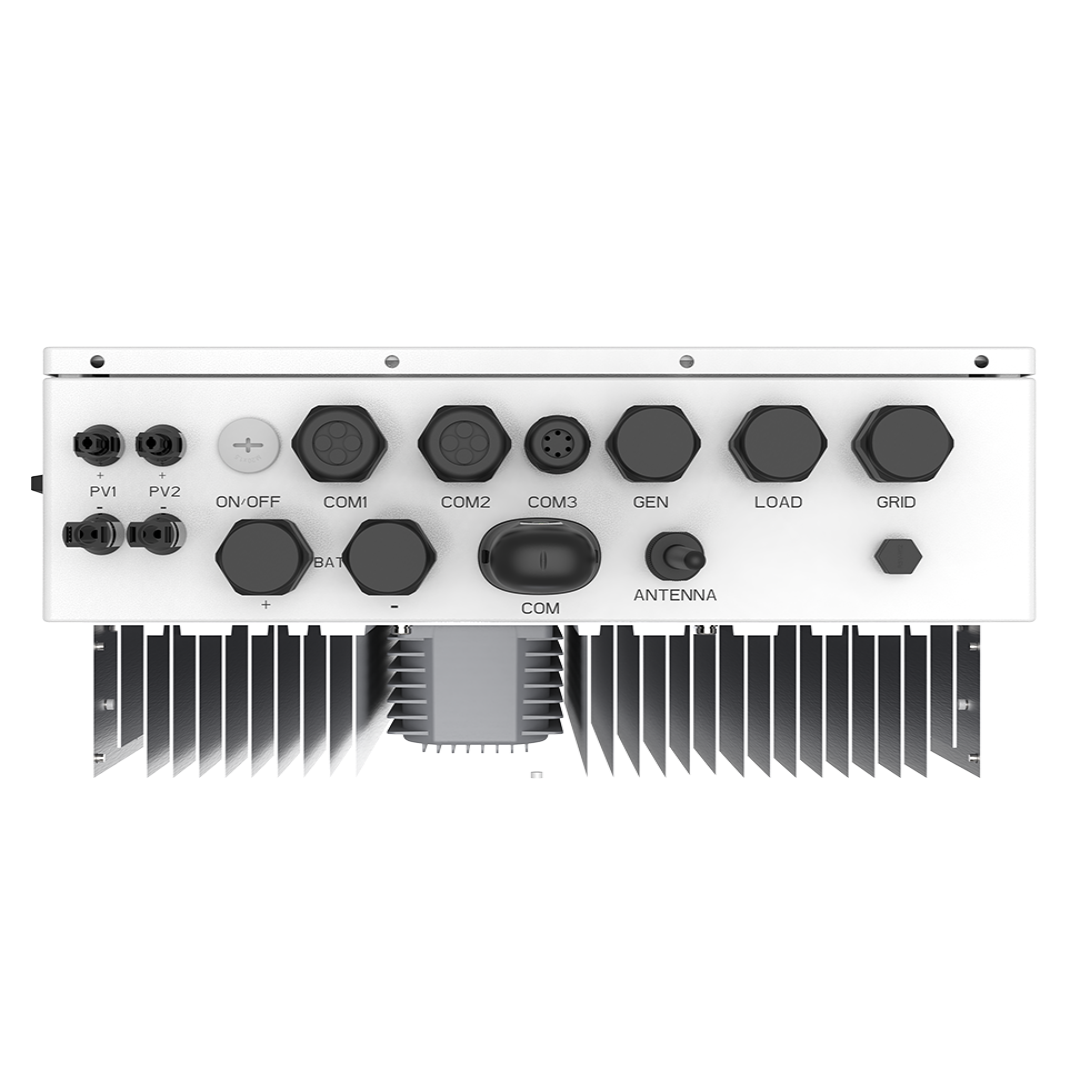

  • DC connection: MC4 plug (PV port) / Terminal Block (BAT port)
  • AC connection: Terminal Block
  • Display: LED + APP
  • Communication: RS485, CAN, Optional: Wi-Fi, GPRS, LAN
  • SA: NRS 097 certified and COCT Certified

Technical Specifications

Input DC (PV side)

  • Recommended max. PV power: 9.6 kW
  • Max. input voltage: 600 V
  • Rated voltage: 330 V
  • Start-up voltage: 90 V
  • MPPT voltage range: 90-520 V
  • Max. input current: 16 A / 16 A
  • Max. short circuit current: 24 A / 24 A
  • MPPT number/Max. input strings number: 2/2

Battery

  • Battery type: Li-ion / Lead-acid
  •  Battery voltage range: 40-60 V
  •  Max. charge / discharge power: 6 kW
  •  Max. charge / discharge current: 135 A
  •  Communication: CAN/RS485

Output AC (Grid side)

  • Rated output power: 6 kW
  • Max. apparent output power: 6.6 kVA
  • Operation phase: 1/N/PE
  • Rated grid voltage: 220 V / 230 V
  • Rated grid frequency: 50 Hz / 60 Hz
  • Rated grid output current: 27.3 A / 26.1 A
  • Max. output current: 30 A
  • Power factor: >0.99 (0.8 leading - 0.8 lagging)
  • THDi: <2%

Input AC (Grid side)

  • Input voltage range: 187-253 V
  • Max. input current: 40 A
  • Frequency range: 45-55 Hz / 55-65 Hz

Output AC (Back-up)

  • Rated output power: 6 kW
  •  Max. apparent output power: 2 times of rated power, 10 s
  •  Back-up switch time: <4 ms
  •  Rated output voltage: 1/N/PE, 220 V / 230 V
  •  Rated frequency: 50 Hz / 60 Hz
  •  Rated output current: 27.3 A / 26.1 A
  •  Max. output current: 40 A
  •  THDv (@linear load): <2%

Efficiency

  • Max. efficiency: > 97.5%
  • EU efficiency: > 96.2%

Protection

  • DC reverse-polarity protection: Yes
  •  Ground fault monitoring: Yes
  •  Integrated AFCI (DC arc-fault circuit protection): Yes (Activation required)
  •  Protection class/Over voltage category: I/II

General Data

  • Dimensions (W*H*D): 406*560*205 mm
  • Weight: 24 kg
  • Topology: High frequency isolation (for battery)
  • Operating ambient temperature range: -40 ~ +60°C

  • Ingress protection: IP66

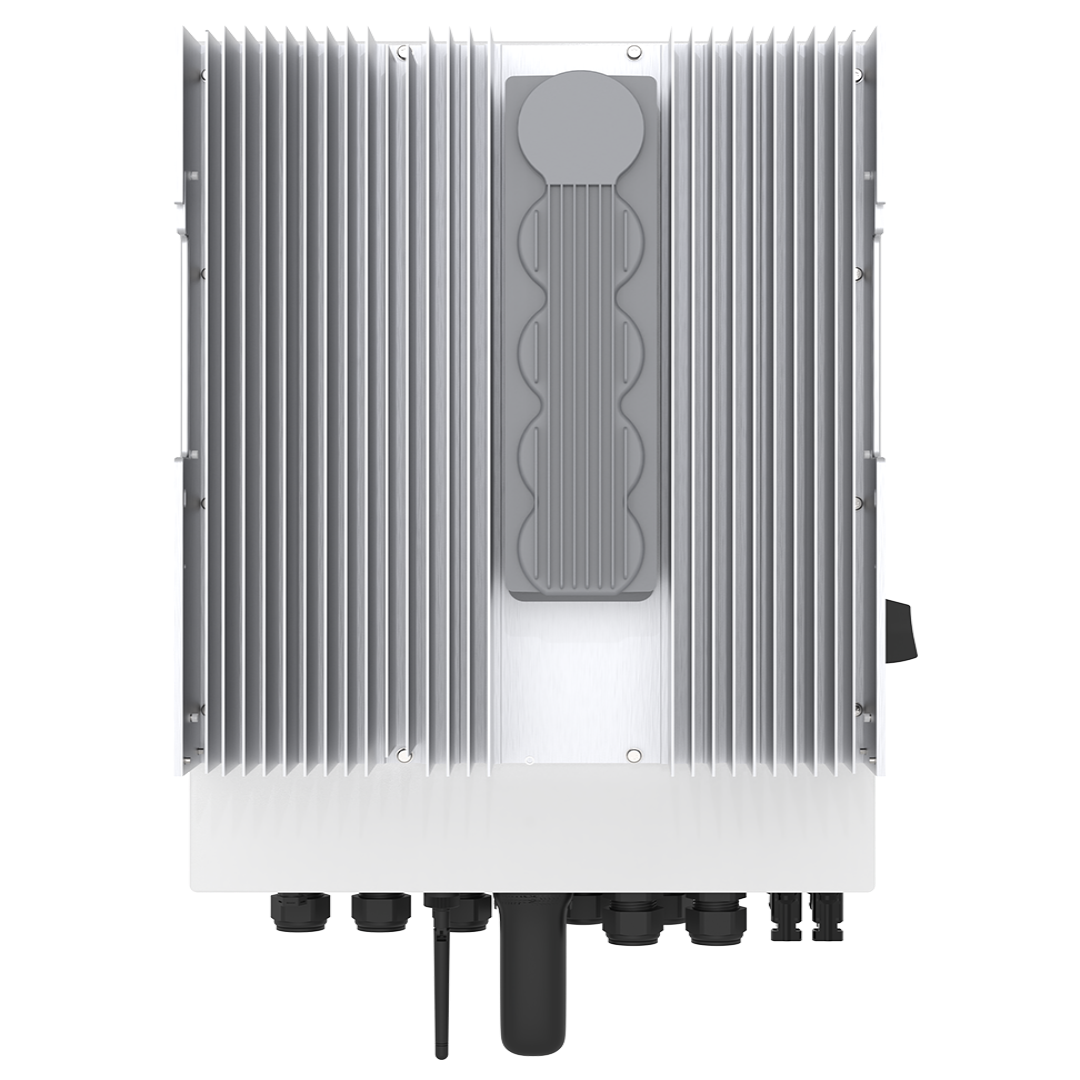

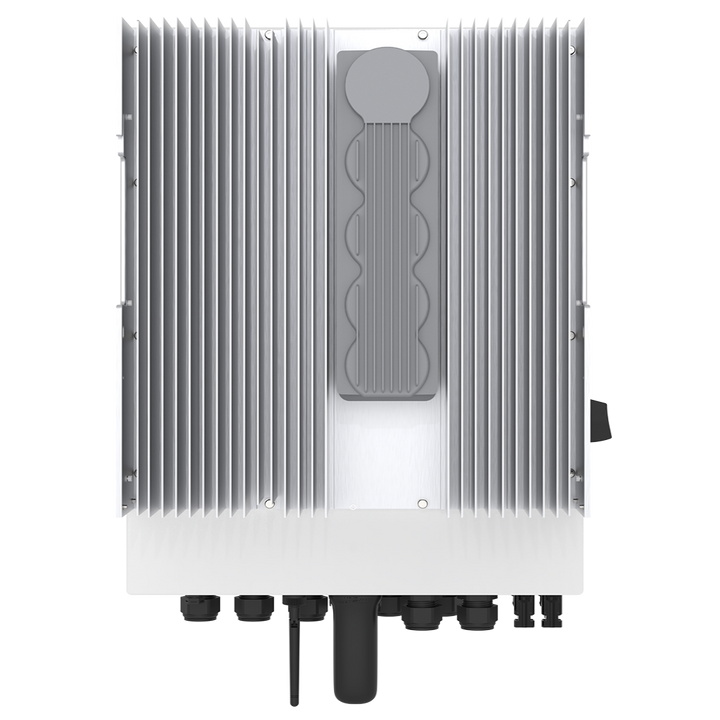

  • Cooling concept: Natural convection

  • Max. operation altitude: 4000 m

  • Safety/EMC standard: IEC/EN 62109-1/-2, EN 61000-6-2/-3

  • Grid connection standard: NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
