Product Overview

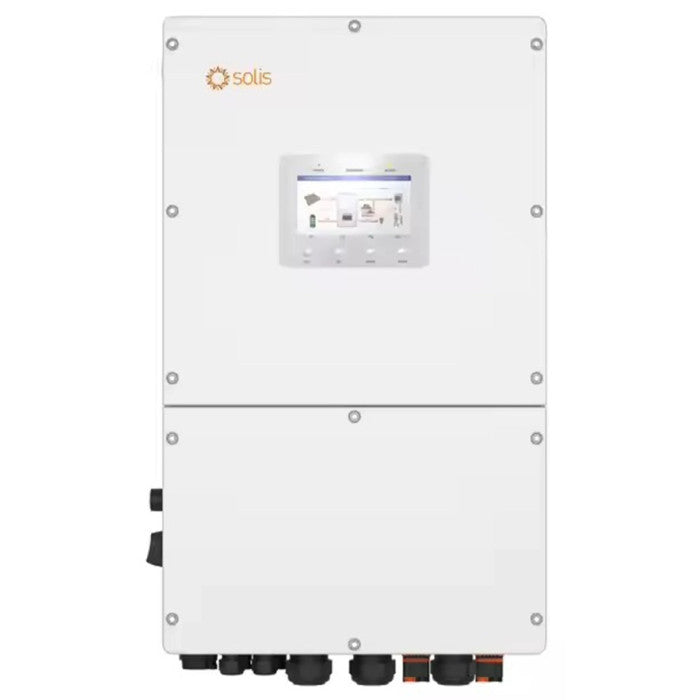

The Solis S6 6kW Single Phase Hybrid Inverter is a low-voltage energy storage inverter for residential and small commercial solar systems. It combines solar PV, battery storage, grid connection and generator input in one unit to support both grid-connected and off-grid applications.
Key Features
- 6kW rated single-phase AC output for solar and battery-backed energy systems.
- Two MPPT trackers support flexible PV array design, with a 90-435V MPPT operating range and 500V maximum PV input voltage.
- 40-60V battery interface for lithium-ion or lead-acid battery systems, with CAN and RS485 communication.
- Backup output supports twice the rated apparent power for 10 seconds and a transfer time of less than 10ms.
- Dedicated generator input rated up to 6kW.
- IP66 enclosure, 7-inch LCD display, Bluetooth and app access for practical on-site operation.
Applications
- Residential solar and battery storage systems.
- Single-phase properties requiring essential-load backup during grid interruptions.
- Hybrid systems that combine solar PV, battery storage, grid supply and a compatible generator.
- New installations or suitably designed upgrades requiring a 6kW hybrid inverter.
Why Choose This Product?
This Solis hybrid inverter provides a practical 6kW platform for combining solar generation and battery storage in a single-phase system. Its dual-MPPT design, low-voltage battery interface, backup capability and IP66 protection make it suitable for professionally designed energy-storage installations.
Important Notes
- Installation and commissioning must be completed by a qualified electrician in accordance with applicable local regulations and utility requirements.
- Confirm battery compatibility, battery communications, system protection settings and required accessories before purchase or installation.
- Optional Wi-Fi, GPRS and LAN communications are listed by the manufacturer; confirm the required monitoring accessory for the installation.
- Confirm warranty terms, registration requirements and current supplier availability before publishing the product or supplying a system.
Technical Specifications
| Specification |
Detail |
| Brand |
Solis |
| Model |
S6-EH1P6K-L-PLUS |
| Supplier Part Reference |
SOL-S6-EH1P6K-L-PLUS-10Y |
| Product Type |
Single-phase hybrid energy storage inverter |
| Rated AC Output Power |
6kW |
| Maximum Apparent Output Power |
6kVA |
| Operation Phase |
L/N/PE |
| Rated Grid Voltage |
220V / 230V |
| Rated Grid Frequency |
50Hz / 60Hz |
| PV Inputs |
2 MPPTs |
| Recommended Maximum PV Array Size |
12kW |
| Maximum Usable PV Input Power |
9.6kW |
| Maximum PV Input Voltage |
500V |
| PV Start-up Voltage |
90V |
| MPPT Voltage Range |
90-435V |
| Battery Voltage Range |
40-60V |
| Battery Type |
Lithium-ion / lead-acid |
| Maximum Battery Charge / Discharge Power |
6kW |
| Maximum Battery Charge / Discharge Current |
135A |
| Battery Communication |
CAN / RS485 |
| Maximum AC Passthrough Current |
40A |
| Backup Switch Time |
<10ms |
| Generator Input |
Maximum 6kW |
| Maximum Efficiency |
96.2% |
| EU Efficiency |
96.1% |
| Ingress Protection |
IP66 |
| Dimensions (W x H x D) |
335 x 560 x 253mm |
| Weight |
23kg |
| Operating Ambient Temperature |
-25 to +60 degrees C |
| Display |
7-inch LCD display with Bluetooth and app |
| Communication |
RS485, CAN; optional Wi-Fi, GPRS and LAN |
| DC Connection |
MC4 plug (PV port) / terminal block (battery port) |
| AC Connection |
Terminal block |
