Solis 8.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Solis 8.0kW Dual MPPT 3-Phase Grid Tied Solar Kit - Sustainable.co.za

Solis 8.0kW Dual MPPT 3-Phase Grid Tied Solar Kit

Regular price R 120,966.00 incl. VAT
R 105,18783 excl. VAT
incl. VAT /
Please choose your roof mounting system here, if required.


Tax included. Shipping calculated at checkout.
  • Secure online payments

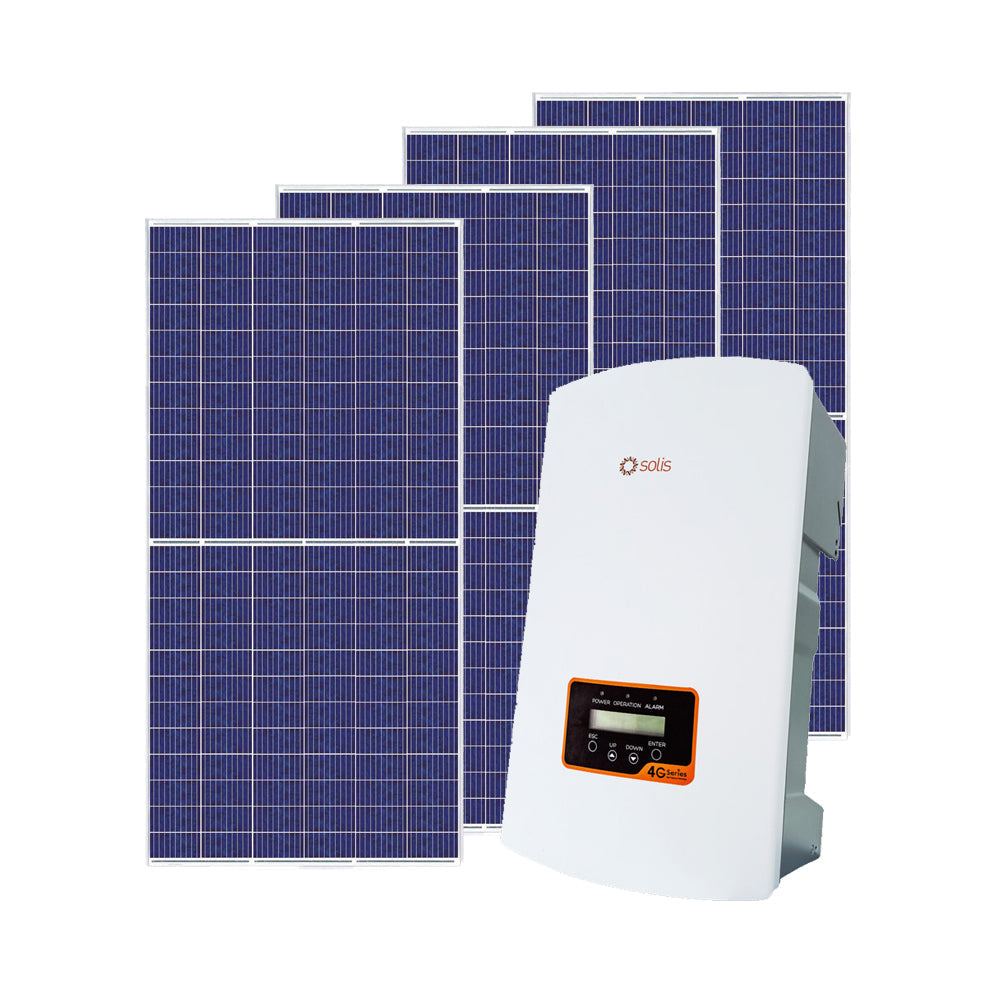

Solis 8.0kW Grid-tie Kit contains the following components

  • 18 x JA Solar 545W Mono Percium Half-cell Solar Panel.
  • 1 x Solis 4G 8.0kW Dual MPPT 3-Phase Grid Tie Inverter.
  • 1 x K&N 63A Three Phase AC Switch Disconnector.
  • 1 x K&N 25A/450V - 11A/920V Single String DC Switch Disconnector
  • 1 x 600V Protection Box 2 Inputs 2 Outputs 16A Isolator Type I_II SPD.
  • 3 x MC4 Pre terminated cable 2m (Pack of 2).
  • 1 x Multi Contact Cable Coupler Pack - MC4.
  • 20m x Sustainable 6mm² Black Panelflex.
  • 20m x Sustainable 6mm² Red Panelflex.
  • 20m x Sustainable 6mm² Black Double Insulated Halogen Free Solar Cable.
  • 20m x Sustainable 6mm² Red Double Insulated Halogen Free Solar Cable.
  • 1 x Optional Roof Mounting System.

PV Performance Estimation
A. Installation Data - New MCS Calculation

  • Installed capacity of PV system - kWP (stc): 8.200 KWp.
  • Orientation of the PV system - degrees from South: 0°.
  • Inclination of system - degrees from horizontal: 35°.

B. Calculation

  • kWh/kWp (KK) from table1: 1,673 kWh/kWp.
  • Shade factor (SF): 1.00.
  • Estimated annual output (kWpxKKxSF): 13,716 kWh.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
