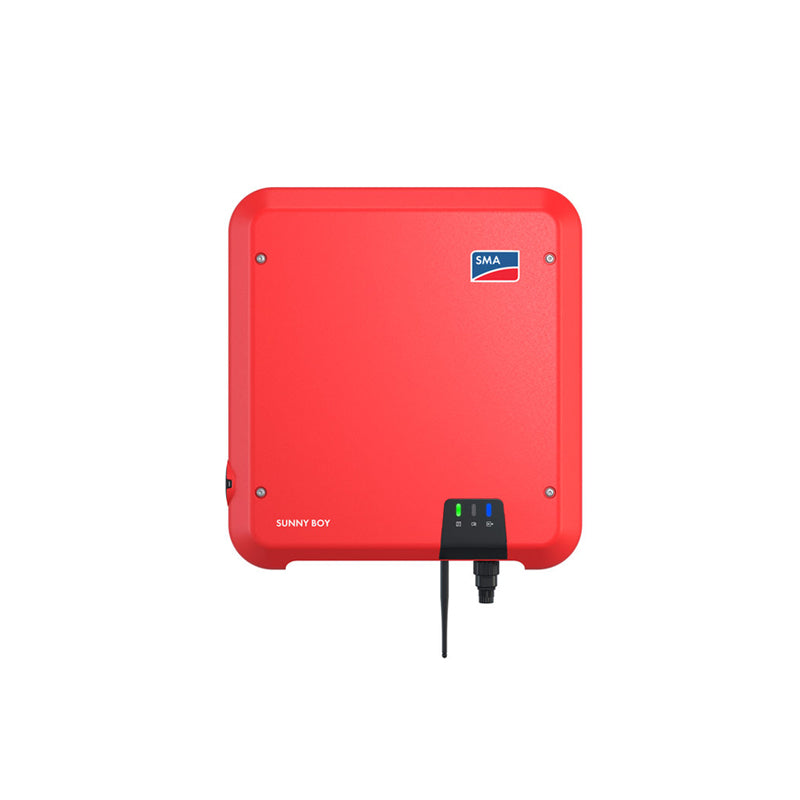

SMA SB 3.6-1AV-41 3.6kW Grid-Tie Inverter

SMA SB 3.6-1AV-41 3.6kW Grid-Tie Inverter - Sustainable.co.za

SMA SB 3.6-1AV-41 3.6kW Grid-Tie Inverter

Regular price R 27,781.00 incl. VAT
R 24,15739 excl. VAT
incl. VAT /


Tax included. Shipping calculated at checkout.
  • Secure online payments

Please note that this product is available on a 2-3 week lead time.

Features Easy Installation and Commissioning

It couldn’t be any easier: A system can be designed professionally and easily with Sunny Design. And thanks to its extremely light design and intuitive user interface, the Sunny Boy can be quickly installed – without having to open the inverter.

  • Simple system design with Sunny Design.
  • Secure plug-and-play installation without opening the inverter.
  • Compact and lightweight (< 16 kg).
  • Quick commissioning using a tablet, smartphone or laptop.
  • SA: NRS 097 certified and COCT Certified

Convenient and Future-Proof

With the Sunny Boy, PV system operators and installers are always up-to-date. Additionally, thanks to current communication standards, intelligent energy management and SMA storage solutions can at any time be flexibly added to systems with the Sunny Boy.

  • Future-proof communication via Ethernet and WLAN.
  • Automatic inverter updates.
  • Choose between local and online monitoring via Sunny Portal and Sunny Places.
  • Compatible with intelligent energy management and SMA storage solutions.

Technical data Input (DC)

  • Max. generator power: 5500 Wp.
  • Max. input voltage: 600 V.
  • MPP voltage range: 130 V to 500 V.
  • Rated input voltage: 365 V.
  • Min. input voltage / initial input voltage: 100 V / 125 V.
  • Max. input current input A / input B: 15 A / 15 A.
  • Max. input current per string input A / input B: 15 A / 15 A.
  • Number of independent MPP inputs / strings per MPP input: 2 / A:2; B:2.

Output (AC)

  • Rated power (at 230 V, 50 Hz): 3680 W.
  • Max. apparent power AC: 3680 VA.
  • Nominal AC voltage / range: 220 V, 230 V, 240 V / 180 V to 280 V.
  • AC power frequency / range: 50 Hz, 60 Hz / −5 Hz to +5 Hz.
  • Rated power frequency / rated grid voltage: 50 Hz / 230 V.
  • Max. output current: 16 A.
  • Power factor at rated power: 1.
  • Adjustable displacement power factor: 0.8 overexcited to 0.8 under excited.
  • Feed-in phases / connection phases: 1 / 1.

Efficiency

  • Max. efficiency / European Efficiency: 97.0% / 96.4%.

General data

  • Dimensions (W / H / D): 435 mm x 470 mm x 176 mm.
  • Weight: 16 kg.
  • Operating temperature range: ‒25°C to +60°C.
  • Noise emission, typical: 25 dB.
  • Self-consumption (at night): 1.0 W.
  • Topology: Transformerless.
  • Cooling method: Convection.
  • Degree of protection (as per IEC 60529): IP65.
  • Climatic category (as per IEC 60721-3-4): 4K4H.
  • Max. permissible value for relative humidity (non-condensing): 100%.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
