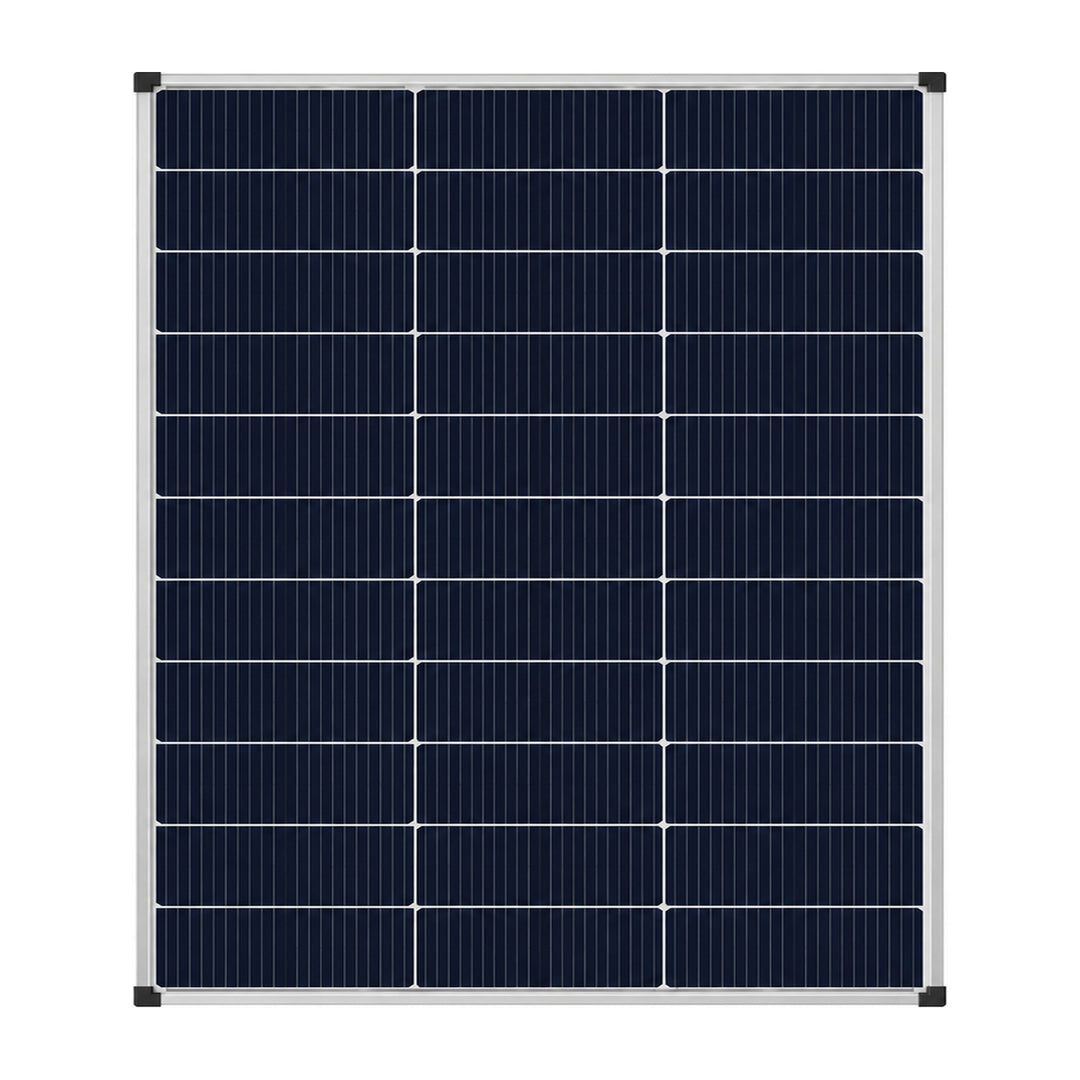

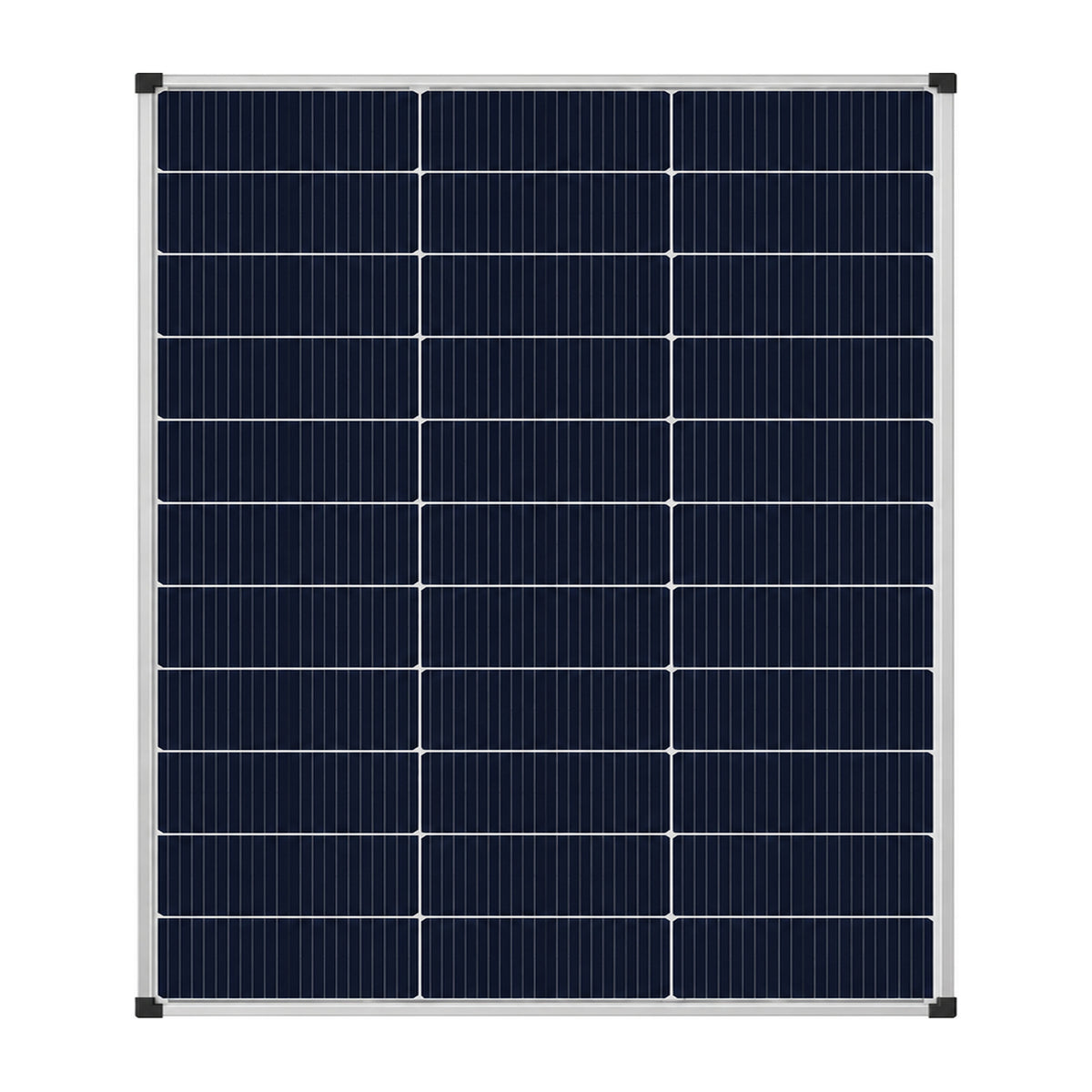

Product Overview
The SLP 60W solar panel supplies DC power for small solar installations. It is suited to customers planning low-power off-grid lighting, monitoring or other equipment, with the panel and control equipment selected to match the load.
Key Features
- 60W rated output under standard test conditions helps size the panel for the intended energy requirement.
- Maximum-power output of 17.40V and 3.44A provides the electrical ratings needed for controller selection.
Applications
- Small off-grid lighting installations with suitable control equipment.
- Low-power monitoring and remote DC equipment matched to the panel output.
- Battery-based solar systems using a suitably rated charge controller.
Why Choose This Product?
The SLP 60W panel provides a compact generation option for installations with modest power requirements. Its published voltage, current and dimensions make it straightforward to assess against the available mounting space and system design.
Important Notes
- Rated output is measured at standard test conditions: 1000W/m² irradiance, 25°C cell temperature and AM1.5. Actual output varies with sunlight, temperature, shading and installation.
- Use a suitable charge controller for battery charging. Have a qualified installer check voltage limits, battery requirements, cabling, protection and mounting.
Technical Specifications
| Specification |
Detail |
| Range name |
SLP |
| Product code |
SLP060-12 |
| Rated power at STC |
60W |
| Voltage at maximum power (Vmp) |
17.40V |
| Current at maximum power (Imp) |
3.44A |
| Open-circuit voltage (Voc) |
21.5V |
| Short-circuit current (Isc) |
3.78A |
| Dimensions |
774 x 675 x 35mm (drawing; includes screw-head projections) |
| Operating temperature |
-40°C to +85°C |
| Maximum system voltage |
1000V (datasheet rating) |
| NOCT |
47 ± 2°C |
