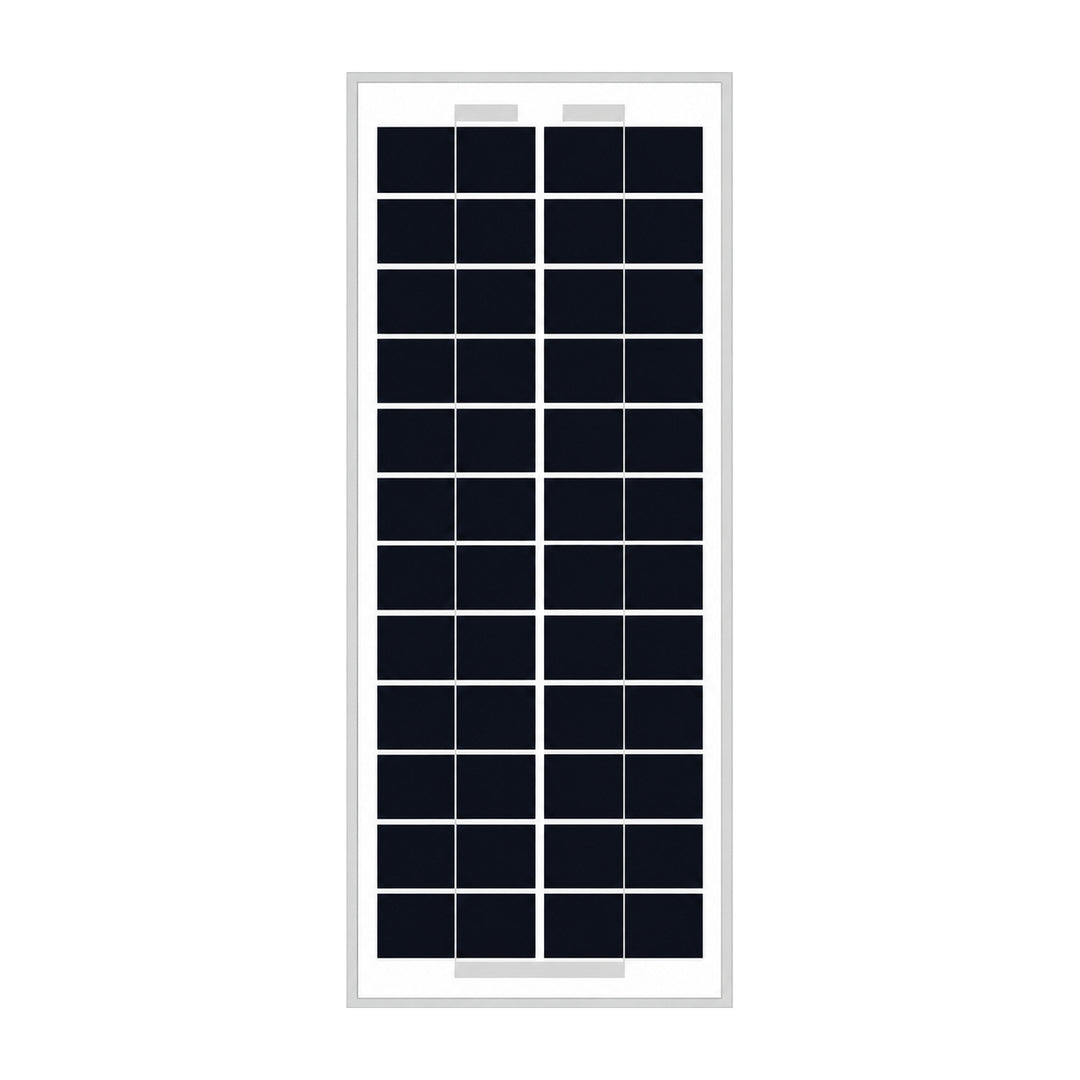

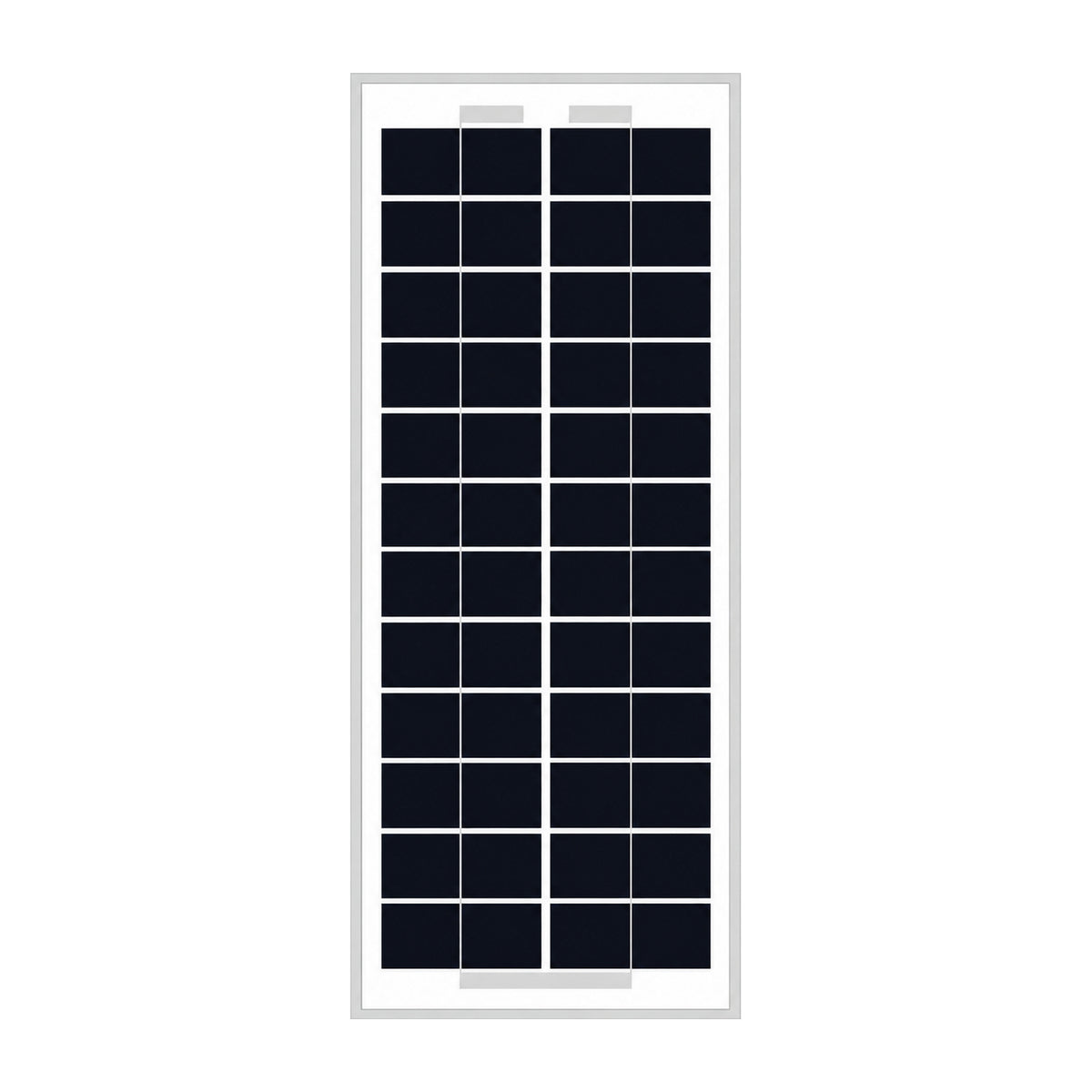

SLP 5W Monocrystalline Solar Panel

Product Overview

The SLP 5W monocrystalline solar panel supplies DC power for small solar installations. It is suited to customers planning low-power off-grid lighting, monitoring or other equipment, with the panel and control equipment selected to match the load.

Key Features

• 5W rated output under standard test conditions helps size the panel for the intended energy requirement.
• Maximum-power output of 13.92V and 0.36A provides the electrical ratings needed for controller selection.
• An anodised aluminium alloy frame supports a fixed installation.
• Supplied without cables and connectors, allowing wiring to be selected for the installation.

Applications

• Small off-grid lighting installations with suitable control equipment.
• Low-power monitoring and remote DC equipment matched to the panel output.

Why Choose This Product?

The SLP 5W panel provides a compact generation option for installations with modest power requirements. Its published voltage, current and dimensions make it straightforward to assess against the available mounting space and system design.

Important Notes

• Rated output is measured at standard test conditions: 1000W/m² irradiance, 25°C cell temperature and AM1.5. Actual output varies with sunlight, temperature, shading and installation.
• Use a suitable charge controller for battery charging. Have a qualified installer check voltage limits, battery requirements, cabling, protection and mounting.
• The maximum-power voltage is 13.92V. Confirm the charging arrangement rather than assuming compatibility with a nominal 12V battery.

Technical Specifications
