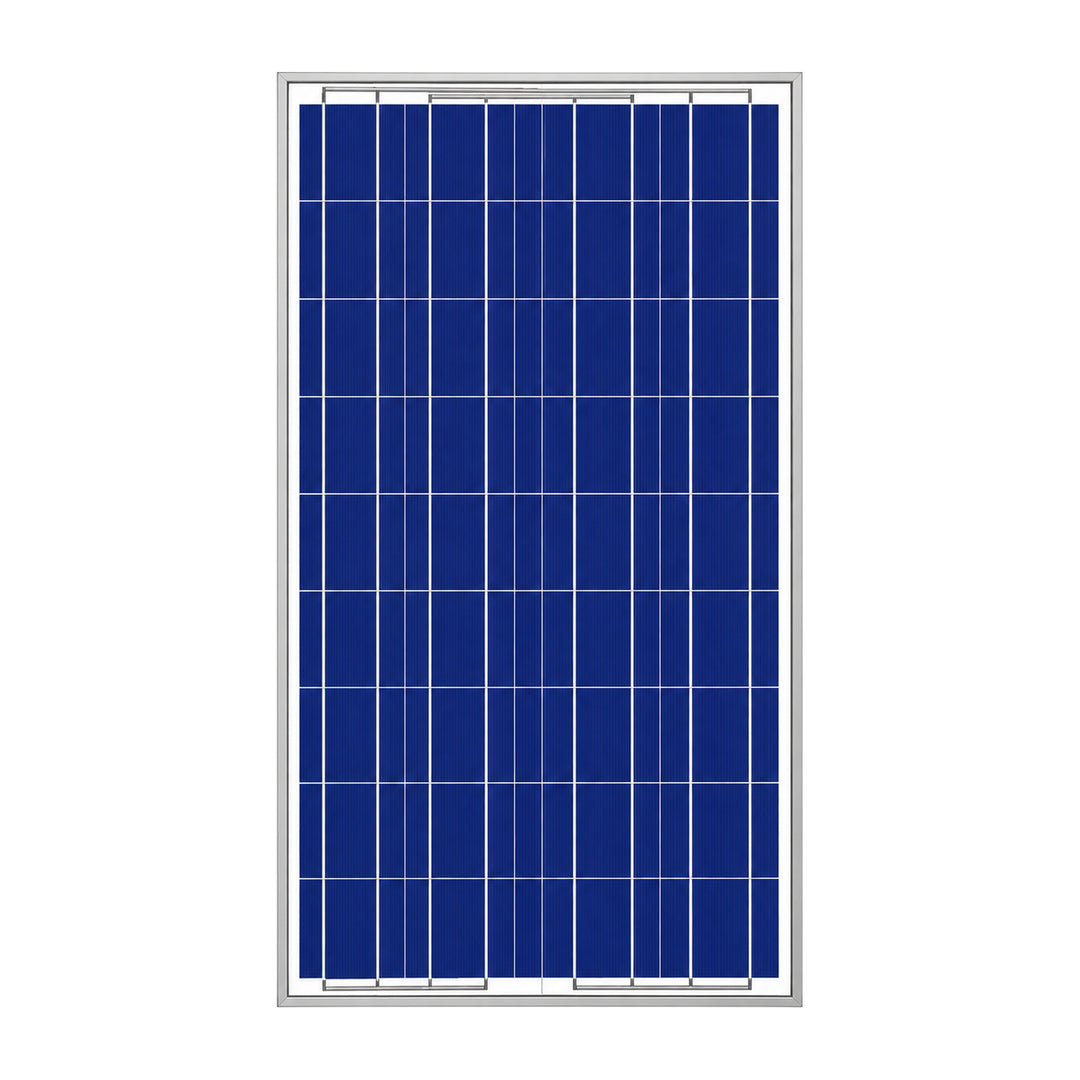

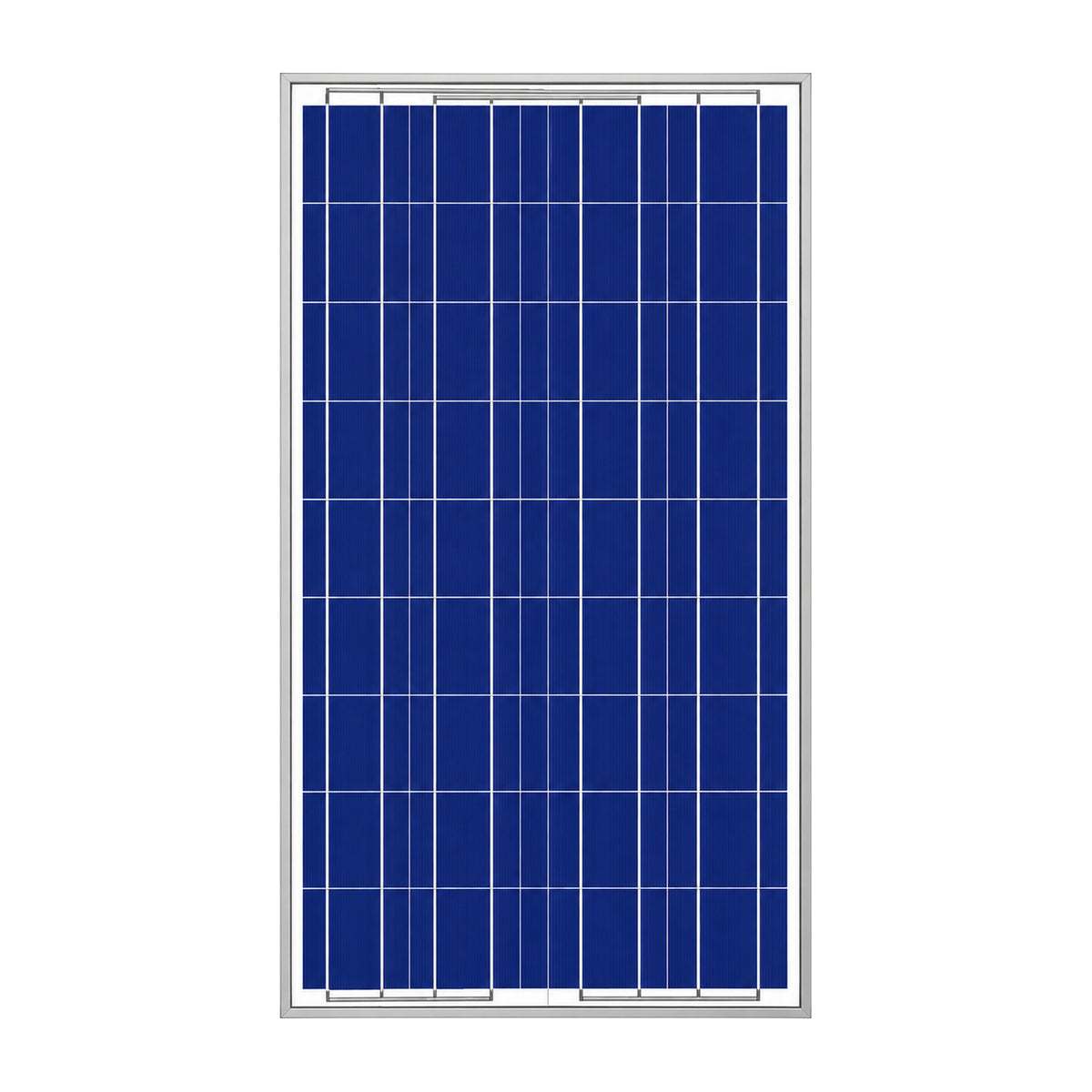

Product Overview
The SLP 100W polycrystalline solar panel supplies DC power for small solar installations. It is suited to customers planning low-power off-grid lighting, monitoring or other equipment, with the panel and control equipment selected to match the load.
Key Features
- 100W rated output under standard test conditions helps size the panel for the intended energy requirement.
- Maximum-power output of 18.00V and 5.56A provides the electrical ratings needed for controller selection.
- An anodised aluminium alloy frame supports a fixed installation.
- MC4 or MC4-compatible connectors and 4 sq.mm, 900mm output cables are specified in the datasheet.
Applications
- Small off-grid lighting installations with suitable control equipment.
- Low-power monitoring and remote DC equipment matched to the panel output.
- Battery-based solar systems using a suitably rated charge controller.
Why Choose This Product?
The SLP 100W panel provides a compact generation option for installations with modest power requirements. Its published voltage, current and dimensions make it straightforward to assess against the available mounting space and system design.
Important Notes
- Rated output is measured at standard test conditions: 1000W/m² irradiance, 25°C cell temperature and AM1.5. Actual output varies with sunlight, temperature, shading and installation.
- Use a suitable charge controller for battery charging. Have a qualified installer check voltage limits, battery requirements, cabling, protection and mounting.
Technical Specifications
| Specification |
Detail |
| Range name |
SLP |
| Product code |
SLP100-12 |
| Rated power at STC |
100W |
| Cell type |
Polycrystalline |
| Voltage at maximum power (Vmp) |
18.00V |
| Current at maximum power (Imp) |
5.56A |
| Open-circuit voltage (Voc) |
22.60V |
| Short-circuit current (Isc) |
5.87A |
| Dimensions |
1200 x 675 x 35mm |
| Cell count |
36 (4 x 9) |
| Weight |
Approximately 8.00kg |
| Frame |
Anodised aluminium alloy |
| Front glass |
3.2mm tempered glass with AR coating |
| Junction box |
IP67, 3 diodes |
| Cable |
4 sq.mm, 900mm |
| Connector |
MC4 or MC4-compatible |
| Maximum system voltage |
1000V DC |
| Operating temperature |
-40°C to +85°C |
| NOCT |
45 ± 2°C |
