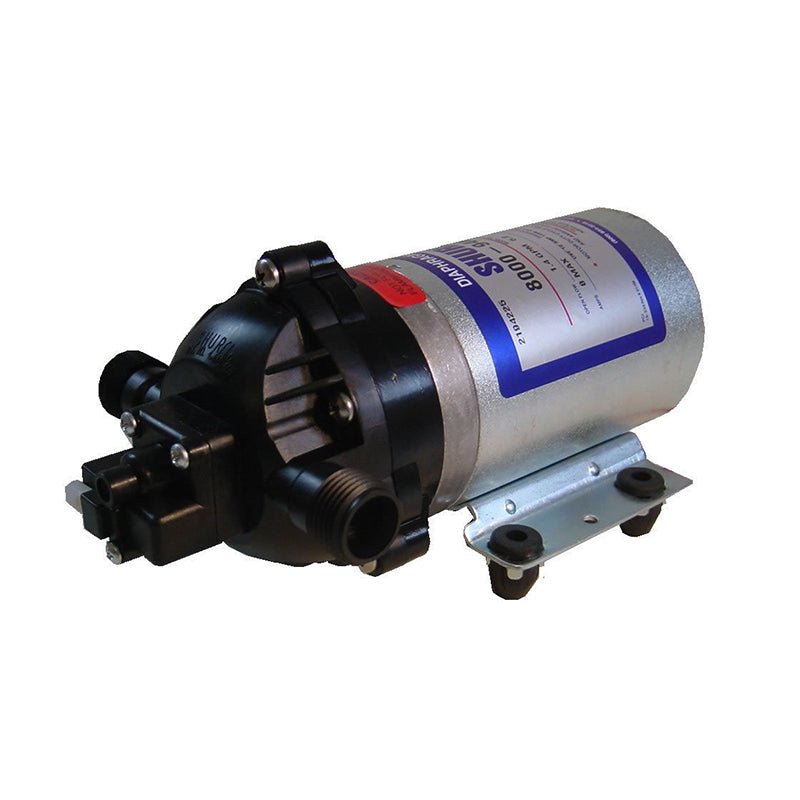

The diaphragm pump 8000 series are the most widely used industrial pump SHURFLO. With spherical valves and circuit breaker demand, these pumps deliver, reliable operation and consistent priming. Up to 1.8 GPM (6.8 l / min).

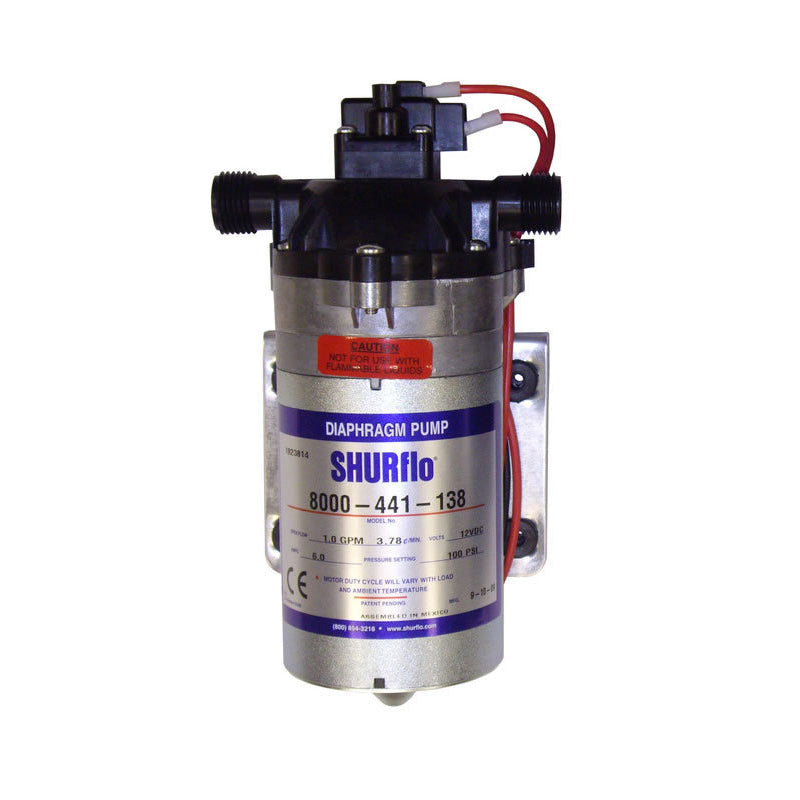

- Model Number: 8000-441-138 12V.
- Pump Design: Positive Displacement 3 Chamber Diaphragm Pump.
- Motor: Permanent Magnet, P/N 11-111-00.
- Nominal Voltage: 12VDC.
- Current Draw: 3.1 A @ 0 PSI.
- Pressure Switch Setting: 100 PSI +/- 5 PSI.
- Ports: ½” Male Parallel.
- Liquid Temperature: Max.77°C.
- Priming: Self priming up to 12ft vertical, max inlet pressure 30 PSI.
Material of Construction
- Plastic: Polypropylene.
- Valves: EPDM Diaphragm Santoprene Cam: 2.0 Degree.
- Fasteners: Zinc Plated Steel.
- Duty Cycle: Continuous.
- Net Weight: 2.07kg.
