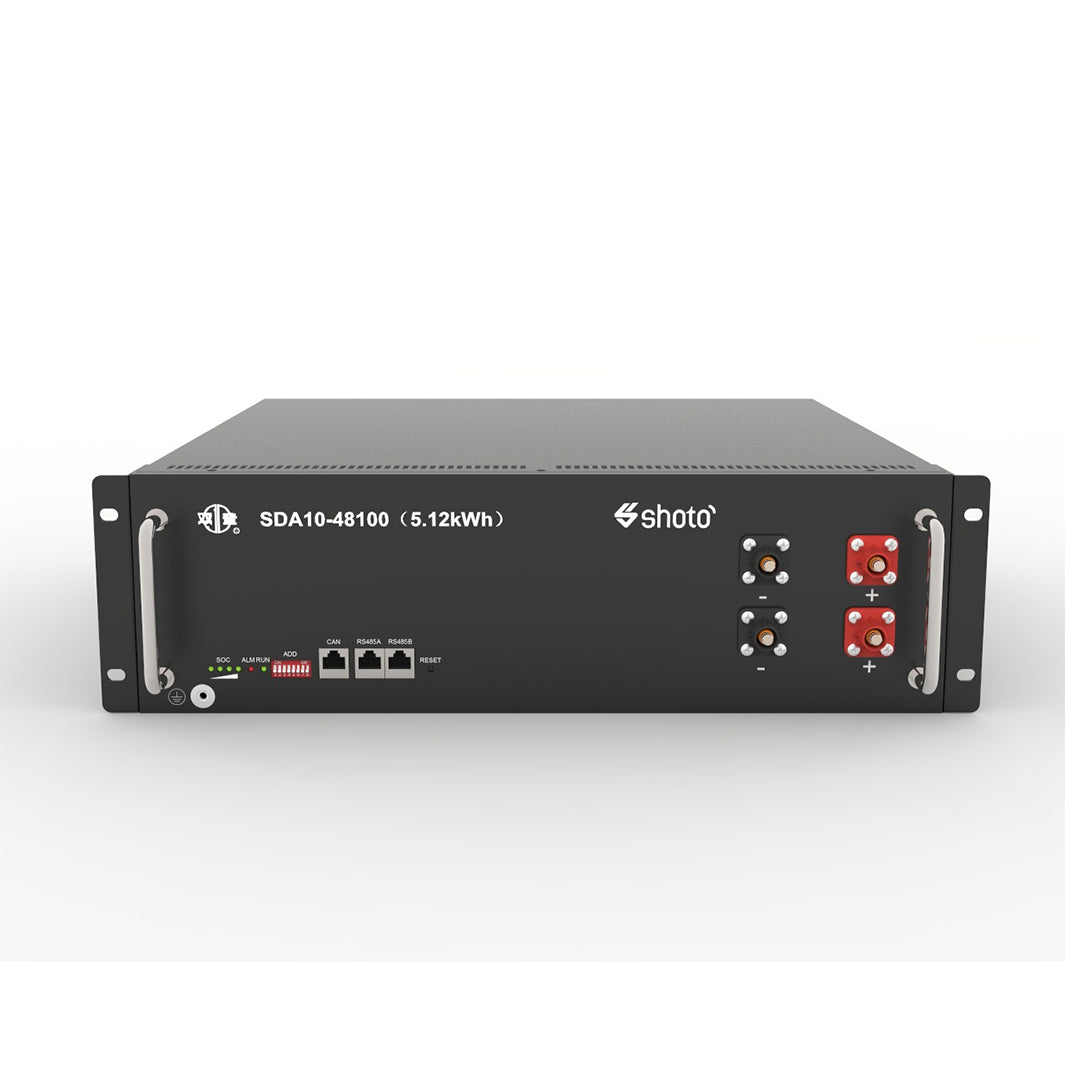

Shoto SDA10-48100 5.1kWh 100Ah 51.2V Lithium Battery
The SDA10-48100-3U series uses new LiFePO4 technology. The product is safe, durable and easy to install.
Please download full specifications sheet here.
Key Advantages
- High energy density (more energy with less weight and footprint).
- High charge currents (short charge period).
- High continual power available.
- Long battery life (up to three times the battery life of a conventional battery).
- High efficiency between charging and discharging.
- Model: 16S.
- Parallel communication: Maximum support for 16 sets in parallel.
- 10 year warranty
Technical Specifications
- Nominal Voltage: 51.2V.
- Rated Capacity: 100Ah (C5, 0.2C to 40V at 25C).
- Operating voltage range: 42V-56.4V.
- Boost/Float Charge Voltage: 57.6/54V
- Charging Current (Current Limiting): 10A.
- Discharge Current (Maximum): 100A.
- Discharge Cut-Off Voltage: 40V.
- Dimensions: 442 mm±2mm*177mm±2mm*400 mm±2mm.
- Weight: 45.0kg±1.0kg.
Please note this product is made to order with a 3 day lead time.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
