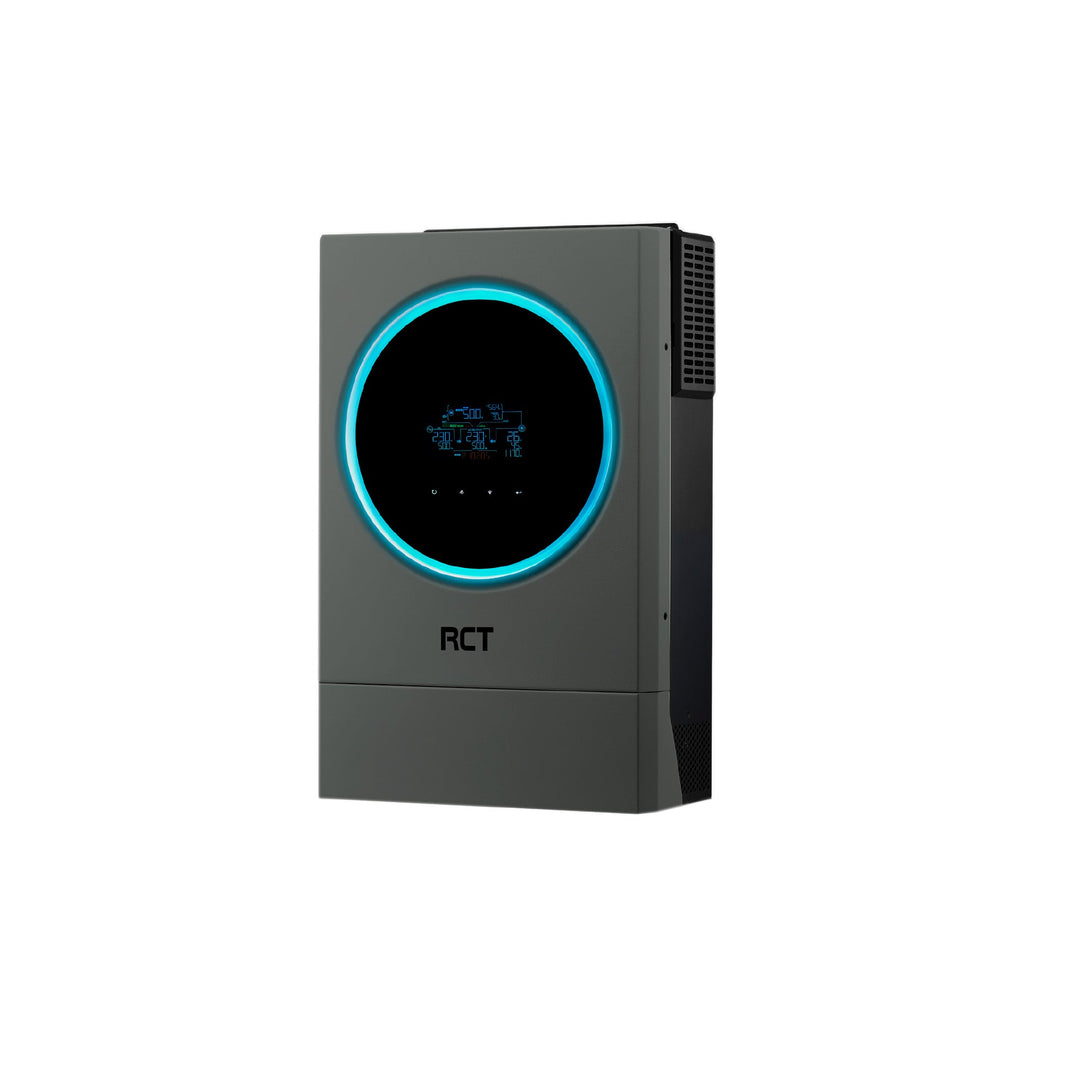

Rct Infinisolar V45.6K 5.6Kva 5.6Kw 48V Hybrid Inverter

RCT Infinisolar V45.6K 5.6kVA 5.6kW 48V Hybrid Inverter

RCT Infinisolar V45.6K 5.6kVA 5.6kW 48V Hybrid Inverter

Regular price R 21,021.00 incl. VAT Sale price R 16,817.00 incl. VATSave R 4,204
R 14,62348 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features:

  • Customizable status LED bar with RGB lights
  • Touchable button with 4.3" coloured LCD
  • Supports USB on-the-go function
  • Data log events stored in the inverter
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable charging current and voltage
  • Programmable multiple operation modes: Grid-tie , off-grid, and grid-tie with backup
  • Built in WiFi for mobile monitoring (App is available)
  • Reserved communication port for BMS
  • Parallel operation up to 9 units
  • Warranty: 24 months

Technical Specifications

  • Model: RCT-INFINI V4 5.6K48V
  • Phase: 1-phase in/1-phase out.
  • Max. PV Input Power: 6000W.
  • Rated Output Power: 5600W.
  • Maximum Charging Power: 6000W.

Grid-Tie Operation
PV Input (DC)

  • Nominal DC Voltage/Max. DC Voltage: 360VDC / 450VDC
  • Start-up Voltage/Initial Feeding Voltage: 110 VDC / 120 VDC
  • MPP Voltage Range: 120VDC~430 VDC.
  • Number of MPP Trackers/Maximum Input Current: 1/27A

Grid Output (AC)

  • Nominal Output Voltage: 220 / 230 / 240 VAC
  • Output Voltage Range: 184 -264.5 VAC or 195.5 - 253 VAC (Selectable)
  • Nominal Output Current: 24.3A
  • Power Factor: >0.9

Efficiency

  • Maximum Conversion Efficiency (DC/AC): 96%.

Off-Grid Operation
AC Input

  • AC start-up Voltage/Auto Restart Voltage: 120-140 VAC /180 VAC
  • Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC
  • Max. AC Input Current: 40A.

PV Input (DC)

  • Max. DC Voltage: 450 VDC.
  • MPP Voltage Range: 120 VDC~430 VDC.
  • Number of MPP Trackers/Max. Input Current: 1 / 27A

Battery Mode Output (AC)

  • Nominal Output Voltage: 220 / 230 / 240 VAC
  • Output Waveform: Pure Sinewave.
  • Efficiency (DC to AC): 93%

Hybrid Operation
PV Input (DC)

  • Nominal DC Voltage/Max. DC Voltage: 360 VDC / 450 VDC
  • Start-up Voltage/Initial Feeding Voltage: 110 VDC / 120 VDC
  • MPP Voltage Range: 120 VDC~430 VDC.
  • Number of MPP Trackers/Max. Input Current: 1 / 27 A

Grid Output (AC)

  • Nominal Output Voltage: 220 / 230 / 240 VAC
  • Output Voltage Range: 184 - 264.5 VAC or 195.5 - 253 VAC (Selectable)
  • Nominal Output Current: 24.3A

AC Input

  • AC Start-up Voltage/Auto Restart Voltage: 120-140 VAC per phase/180 VAC
  • Acceptable Input Voltage Range: 90 - 280 VAC or 170 - 280 VAC
  • Max. AC Input Current: 40A.

Battery Mode Output (AC)

  • Nominal Output Voltage: 220 /230/240 VAC
  • Efficiency (DC to AC): 93%.

Battery & Charger

  • Nominal DC Voltage: 48 VDC.
  • Max Solar Charging Current, maximum AC charging current & maximum charging current: 120A

General / Physical

  • Dimension (D x W x H) (mm): 140 x 295 x 468
  • Net weight (kgs): 12

Interface

  • Communication Port: USB / RS232 / RS485 / WiFi / Dry-contact

Environment

  • Humidity: 0~90% RH (Non-condensing).
  • Operating Temperature: -10 to 50°C.

 Product specifications are subject to change without further notice.


Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
