Product Overview

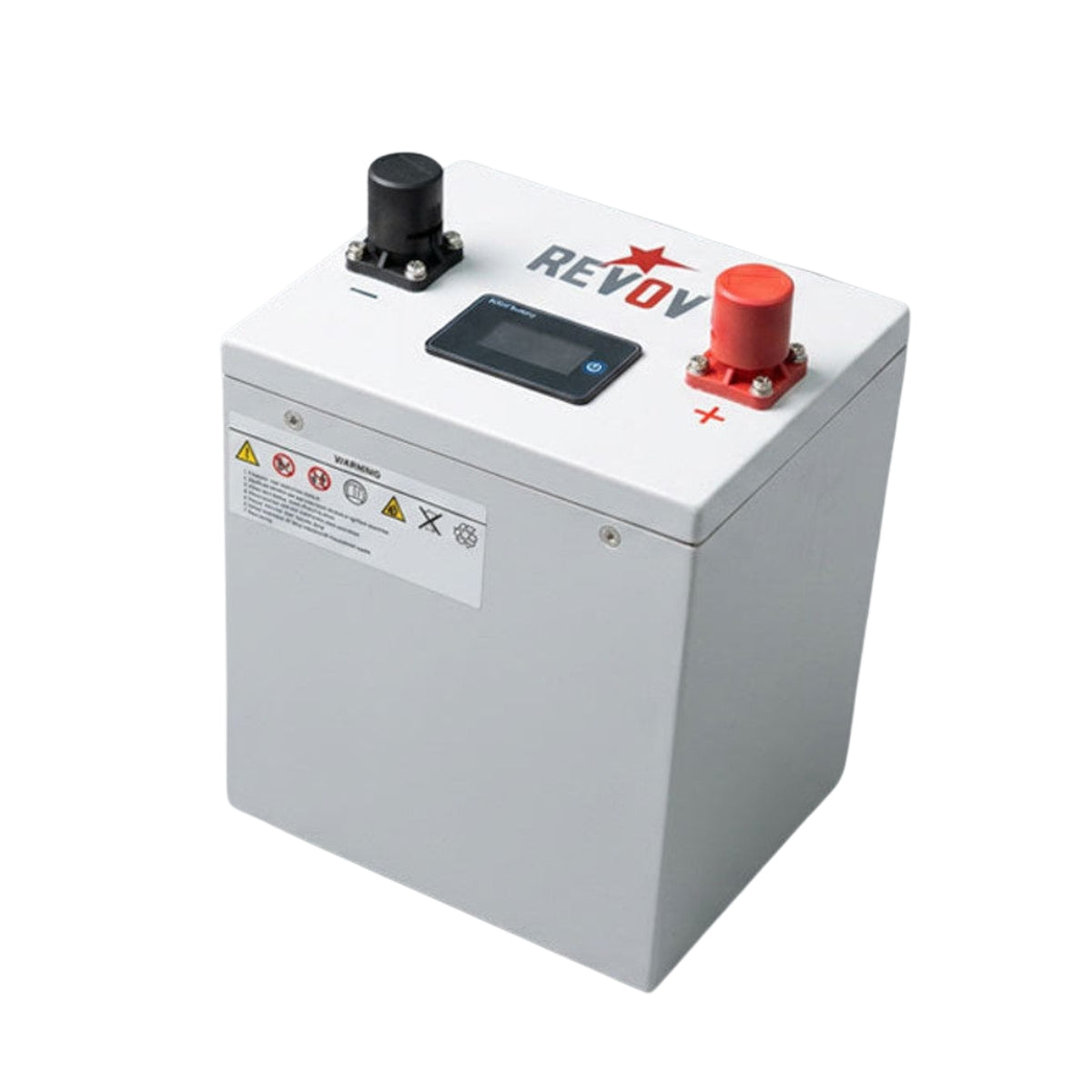

The REVOV GAEA-1250 is a 12.8V 50Ah LiFePO4 deep-cycle battery with 640Wh of energy storage, designed for compact backup power, mobile and off-grid energy applications where a lightweight lithium battery is required. Bluetooth access enables convenient battery monitoring from a compatible device.
Key Features
- 12.8V nominal voltage and 50Ah capacity, providing 640Wh of stored energy.
- LiFePO4 battery chemistry with more than 2,000 cycles at 100% depth of discharge under the stated test conditions.
- Bluetooth access interface for battery monitoring.
- Supports up to 4 batteries in series and 4 in parallel, subject to correct system design and installation.
- Integrated protection for over-charge, over-discharge, over-current, short-circuit, over-temperature, low-temperature and cell balancing.
- Compact metal enclosure weighing approximately 6kg.
Applications
- Small backup power systems.
- Caravans, camping and mobile power applications.
- 12V off-grid and auxiliary power systems.
- Applications requiring a compact deep-cycle lithium battery.
Why Choose This Product?
The GAEA-1250 combines a compact 640Wh LiFePO4 battery pack with Bluetooth access, built-in protection and flexible series/parallel connection options. It is well suited to customers looking for a lower-voltage lithium battery for practical backup, mobile or off-grid use.
Important Notes
- Use a charger or inverter/charger with settings suitable for LiFePO4 batteries and the stated charging voltage.
- System sizing, cabling, protection and series/parallel configuration should be completed by a suitably qualified installer.
- Maximum connection is specified by REVOV as 4S4P.
- Warranty is 3 years, subject to REVOV warranty terms and operating conditions.
Technical Specifications
| Specification |
Detail |
| Brand |
REVOV |
| Model |
GAEA-1250 |
| Product Type |
LiFePO4 Deep-Cycle Battery |
| Nominal Voltage |
12.8V |
| Nominal Capacity |
50Ah |
| Energy |
640Wh |
| Recommended Charge Current |
30A |
| Maximum Charge Current |
50A |
| Recommended Discharge Current |
30A |
| Maximum Continuous Discharge Current |
50A |
| Maximum Charge Voltage |
14.6V |
| Discharge Cut-off Voltage |
10V |
| Cycle Life |
2,000+ cycles at 100% DoD |
| Design Life |
10 years |
| Charge Method |
CC-CV |
| Access Interface |
Bluetooth |
| Maximum Connection |
4S4P |
| Charge Temperature |
0°C to 45°C |
| Discharge Temperature |
-15°C to 55°C |
| Dimensions |
194 x 121.5 x 223.8mm |
| Weight |
6kg |
| Case Material |
Metal case |
| Terminal Interface |
M8 |
| Warranty |
3 years |
