Product Overview

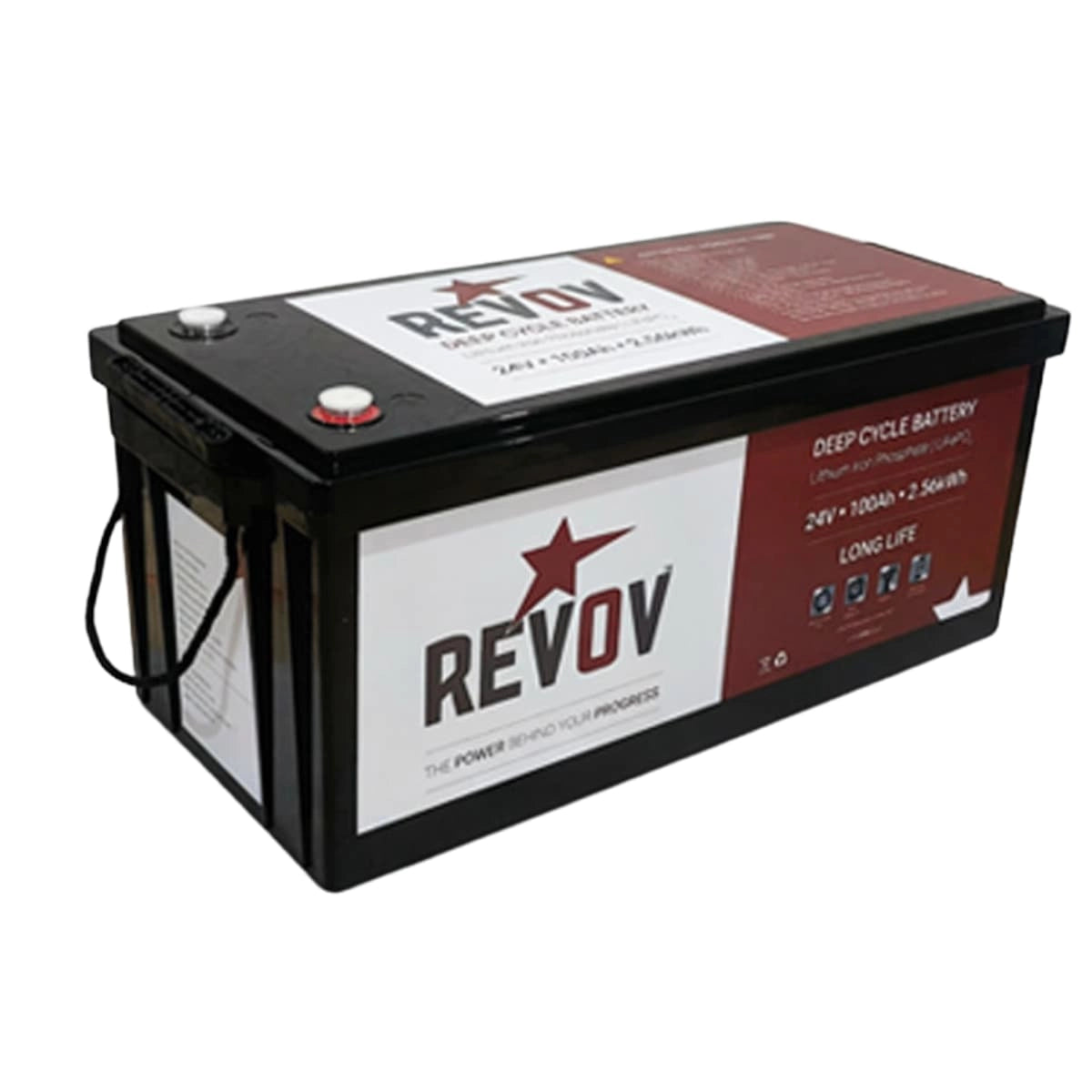

The REVOV 24V 100Ah LiFePO4 battery provides 2.56kWh of energy storage for 24V backup and off-grid power applications. It combines LiFePO4 chemistry with Bluetooth access and is designed for straightforward use with standard 24V lithium chargers and inverters.
Key Features
- 25.6V nominal voltage and 100Ah capacity, providing 2.56kWh of stored energy.
- LiFePO4 chemistry for stable, long-term energy storage.
- Bluetooth access interface for convenient battery monitoring.
- 50A maximum continuous charge and discharge current, with 100A peak charge and discharge current.
- IP20 enclosure for indoor installations in suitable protected environments.
- Rated for 2,000 cycles at 80% depth of discharge under the stated warranty conditions.
Applications
- 24V backup power systems.
- Off-grid energy storage systems.
- Residential and small commercial 24V lithium battery installations.
- Systems using standard 24V lithium chargers or inverters.
Why Choose This Product?
This REVOV 24V battery offers a practical 2.56kWh storage capacity in a transportable format, with Bluetooth monitoring and straightforward integration into suitable 24V lithium charging systems. It is a useful option where a compact 24V LiFePO4 battery is preferred over multiple smaller batteries.
Important Notes
- REVOV specifies compatibility with standard 24V lithium chargers and inverters; verify charger settings and system requirements before installation.
- The IP20 enclosure is intended for protected indoor environments and should not be exposed to water or outdoor conditions.
- Store at 15°C to 30°C with at least 50% state of charge and recharge every 6 months during storage.
- Installation, cabling and electrical protection should be completed by a suitably qualified installer.
- Warranty is specified as 2,000 cycles at 80% DoD over 3 years, subject to REVOV warranty terms.
Technical Specifications
| Specification |
Detail |
| Brand |
REVOV |
| Model |
24V100Ah |
| Product Type |
LiFePO4 Battery |
| Nominal Voltage |
25.6V |
| Battery Capacity |
100Ah |
| Energy Capacity |
2.56kWh |
| Charge Voltage |
28.0V |
| Cut-off Voltage |
20.0V |
| Maximum Continuous Charge / Discharge Current |
50A / 50A |
| Peak Charge / Discharge Current |
100A / 100A |
| Access Interface |
Bluetooth |
| Compatible Chargers / Inverters |
Standard 24V lithium chargers/inverters |
| IP Rating |
IP20 |
| Charge Temperature |
0°C to 50°C |
| Discharge Temperature |
-5°C to 55°C |
| Dimensions |
522 x 242 x 224mm |
| Weight |
30kg |
| Warranty |
2,000 cycles at 80% DoD / 3 years |
