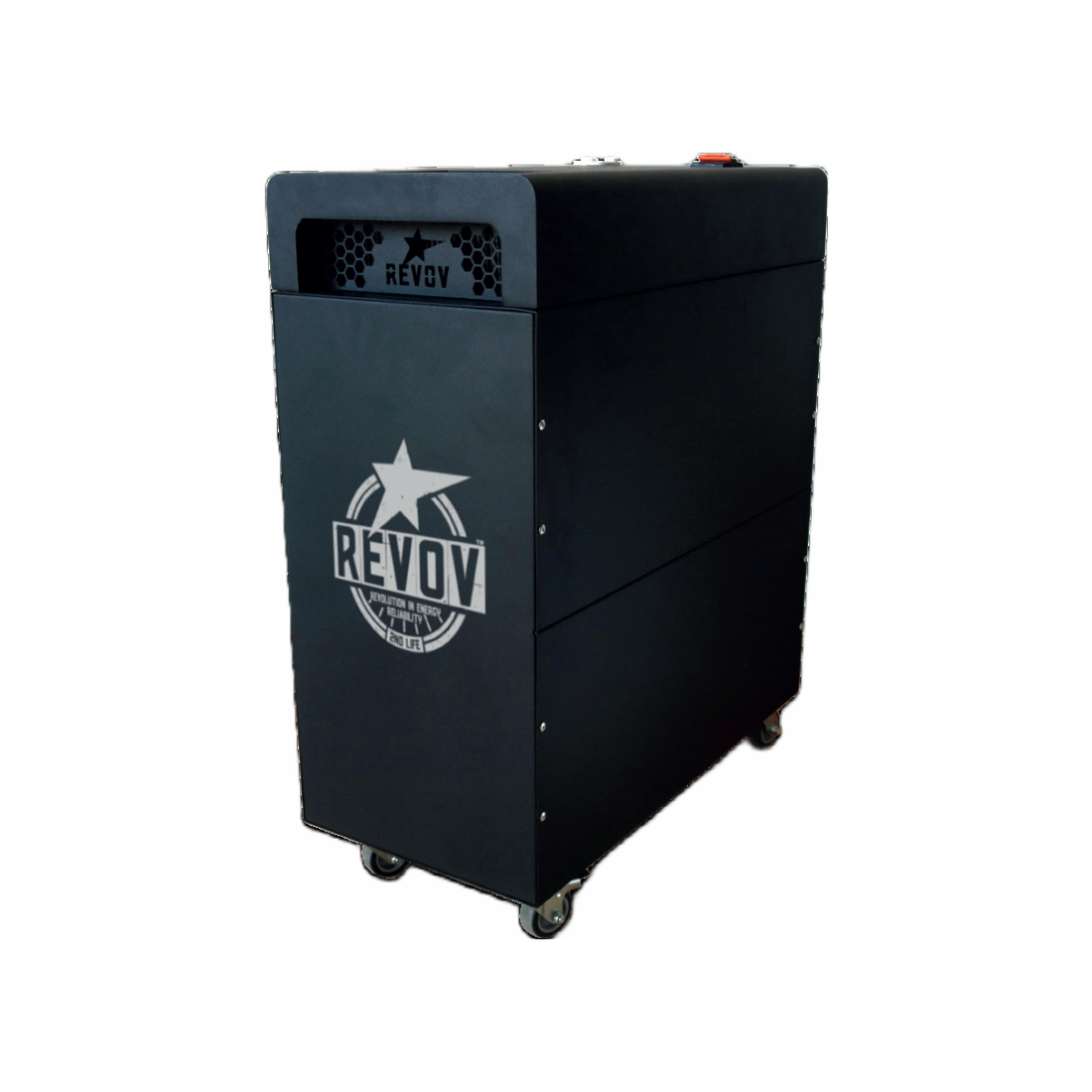

REVOV 2nd Life 2kVA 5.12kWh Atom Portable UPS

REVOV 2nd Life 2kVA 5.12kWh Atom Portable UPS

Regular price R 39,820.00 incl. VAT Sale price R 27,460.85 incl. VATSave R 12,359.15
R 23,87900 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Product Description:

The REVOV ATOM is a compact, fully integrated all-in-one backup system with pre-programmed batteries, pre-calibrated Battery Management System’s (BMS) and a 2kW inverter. The entire unit contains all the necessary wiring and correct fusing, as well as a kettle cord input and standard South African 3-pin socket with USB ports to connect the output devices to the Pure Sine Wave AC Output.

Features

  • The REVOV ATOM is a 2kW pre-configured UPS with the immediate backup transition from grid power to battery power.
  • Available in the storage size of 5.12kWh, 2 x 12.8V 200Ah batteries.
  • No maintenance or fuel required.
  • Output plug on the unit for use with an extension cord or directly connected device.
  • Bluetooth Smartphone Application display of battery performance and state.

Technical Specifications

Output

  • Transfer Time: 20 ms typical
  • Waveform: Pure Sine Wave
  • Power Output: 2000W
  • Max Peak Power Output 230 VAC

Battery

  • Battery Voltage: 25.6VDC
  • Boost Voltage: 28.8VDC ± 0.3VD
  • Floating Charge: Voltage 27.4VDC ± 0.3VDC
  • Max Charge Current: (DC) 70A
  • Full Energy Capacity: 5.12kWh
  • Usuable Energy Capacity: 4.096kWh
  • Recommended Charge Current: (DC) 50A
  • Available Depth of Discharge: 80%
  • Maintenance Charge the battery every 6 months when not in use.

Physical

  • Dimension (D*W*H) (Metal) 550mm x 270mm x 596mm
  • Battery Weight 56kg

    Important:

    All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
