Product Description

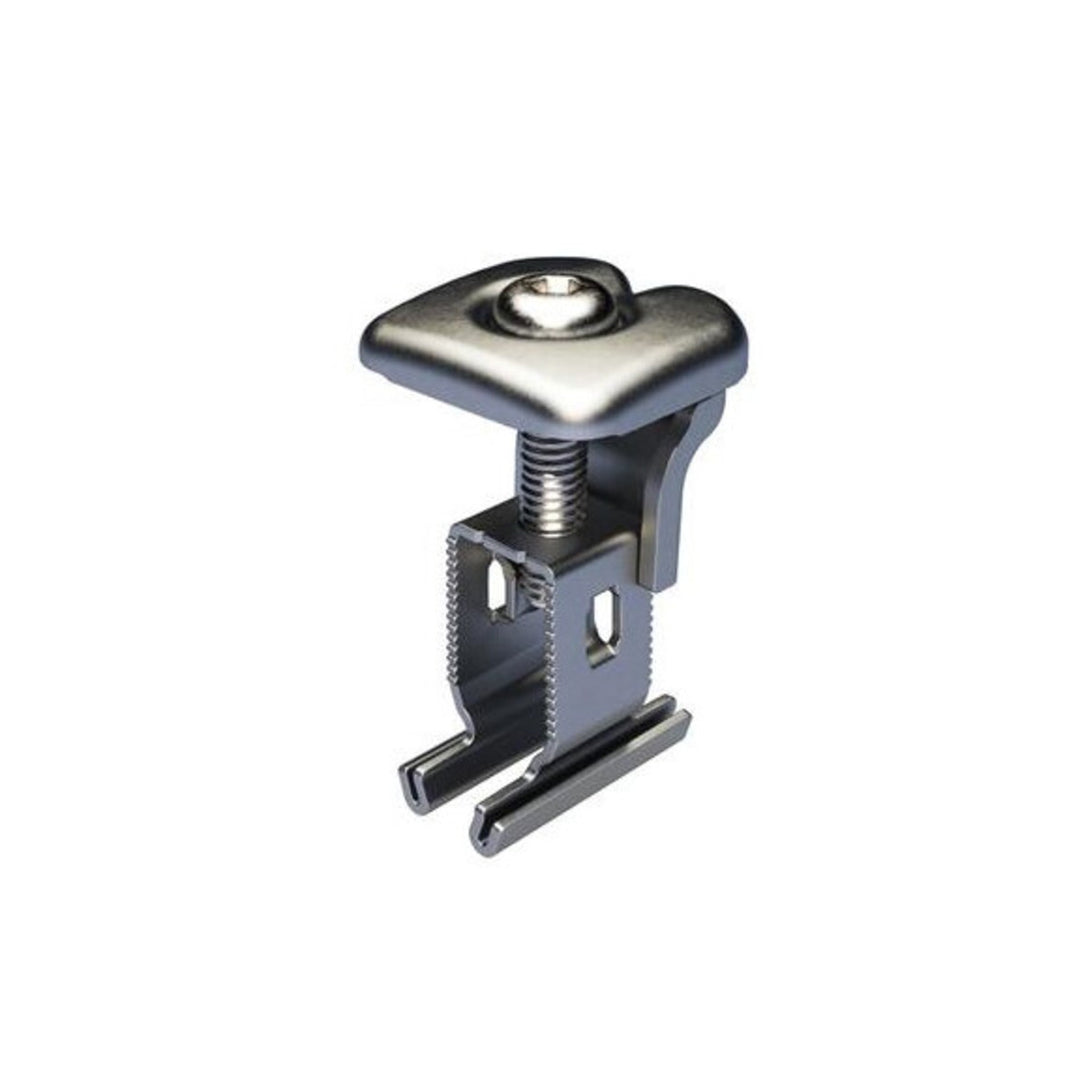

This innovative masterpiece makes your next PV-project a whole lot easier. The RS1 works as mid- and end clamp. It is height adjustable and secures any framed PV panel starting from 30 mm up to 50 mm height. Twisting the RS1‘s head changes the functionality from end- to mid-clamp. Installation and positioning works one handed. At the same time it minimizes needed storage space and saves administrational costs in item management. The RS1 is a real time saver and generates savings over your entire value chain.
Technical Data
- Dimensions: 35x36.5x60
- Weight: 0.083kg
- Set: complete pre-assembled set
- Material: Corrosion resistant steel
- Certification: TUV ID:48970; ETN BT120019; MCS012 IK0197
- Module Types: Framed modules only
- Module Thickness: Between 30.0mm and 50.0mm
- Maximum Torque: 12,00 Nm
- Driver: Hexagon socket 5mm
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
