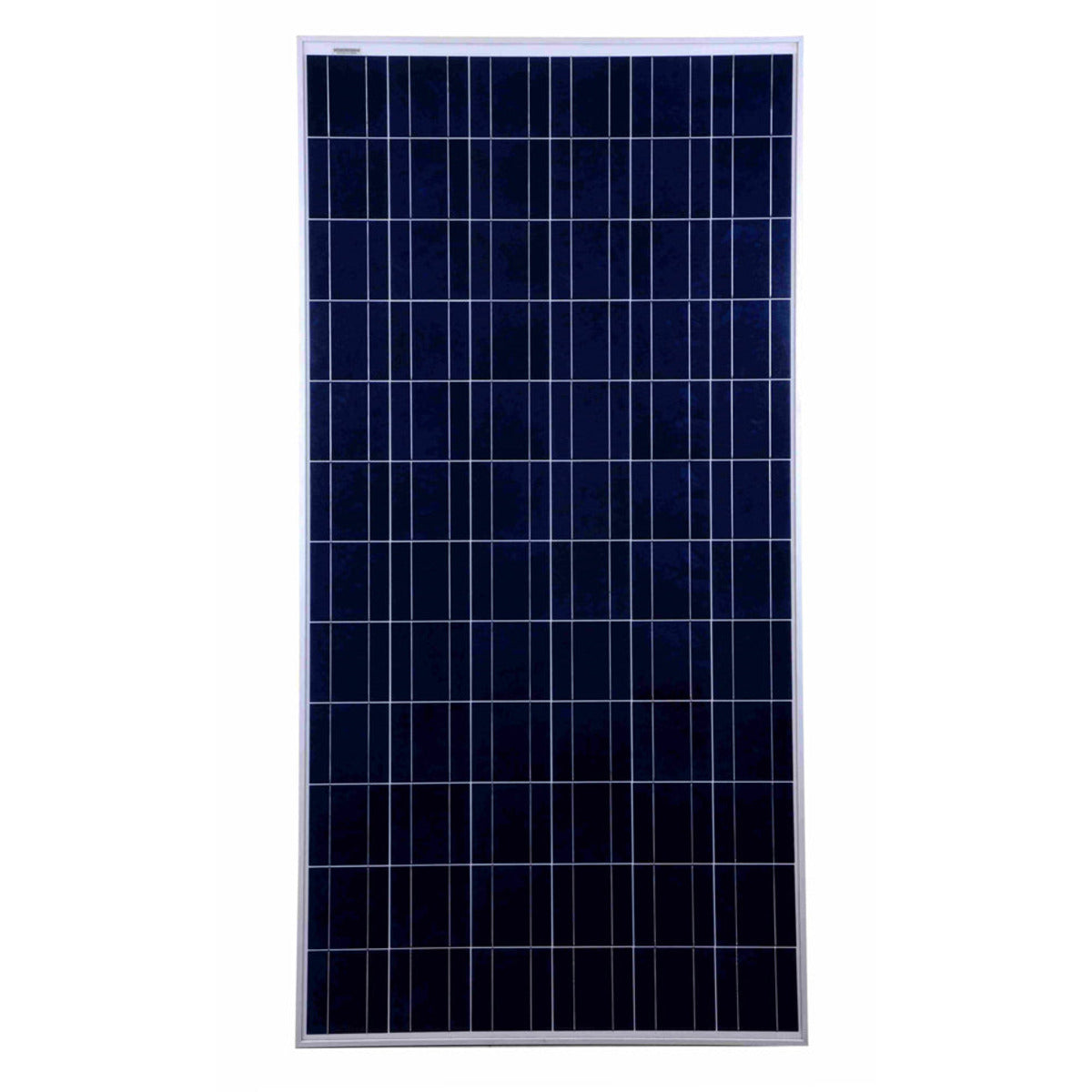

The ideal PV Module for all applications that use the highest quality of PV Cells, in-house Encapsulants, and Backsheets.
- Made in India.
- Positive power tolerance.
- Highly reliable low-iron tempered glass.
- Weather proof.
- Wind speed - 2400Pa.
- Snow load - 5400Pa.
- IP 67 junction box.
- PID resistant.
Quality & Safety
- IEC 61215, IEC 61730, IEC 61701 compliant.
- UL 1703 compliant.
- ISO: 9001-2008 Certified Manufacturing Facility.
- Limited Power Output Warranty - 25 Years.
- Product Warranty - 10 Years.
- Peak Power, Pmax (Wp) - 340W.
- Open circuit voltage, Voc (V) - 46.30V.
- Short Circuit current, lsc (A) - 9.54V.
- Voltage at Maximum power, Vmp (V) - 38.14V
- Current at Maximum power, Imp (A) - 8.92A.
- Module Efficiency (%) - 17.59%.
- Module dimension - 1958mm x 987mm x 40mm.
- Weight: 21.5 Kg.
- No. of Cells - 72.
- Solar cell Type - Poly crystalline cells.
- Front Cover - 3.2mm Thick Low iron tempered glass.
- Frame Material - Silver Anodized Aluminium Alloy.
- Junction Box - 4 Rail IP67.
- PV Connectors: MC4 Compatible
- Cable: 4mm2
Please note that panel dimensions and specifications are subject to change. Please double check with us that they are correct at time of purchase.
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
