Product Description

Our 12V 60Ah 768Wh Lithium Battery is ideal for use as the energy storage battery for small to medium size inverters. Featuring an integrated battery management system (BMS), this battery is highly durable and built to last, with a lifespan of 2000 cycles. Additionally, the sealed plastic enclosure is water and dust resistant (IP55), making it perfect for use in any environment.

This 12V 60Ah 768Wh Lithium Battery is ideal if you are powering a small load, but still want all the benefits of a high quality lithium battery over a sealed lead acid battery.

This lithium iron phosphate battery has a high cycle rate (2000 cycles), it can handle high discharge currents (Max 60A), and the internal battery management system (BMS) protects the battery from overcharging, or discharging too low and a short circuit.

Key Benefits

• Ultra safe lithium iron phosphate (LiFePO4) cells
• Integrated battery management system (BMS)
• Longer service life:>2000 cycles service life
• Deep discharging: Can be 100% drained
• Light weight and compact
• LCD battery voltage & capacity gauge
• Water and dust resistant (IP55)
• Highly durable sealed ABS plastic enclosure
• Sealed and non-liquid (No fumes, no leaking, mount in any position)

Typical Application:

• Drop-in 12v 100Ah lead acid deep cycle alternative

• Load shedding backup/ UPS battery
• Long-life battery perfect for small 720W inverter chargers
• Camping fridge additional battery

Technical Specifications

• Nominal Voltage: 12.8
• Usable Capacity: 768Wh
• Nominal Capacity @ 0.2C: 60Ah

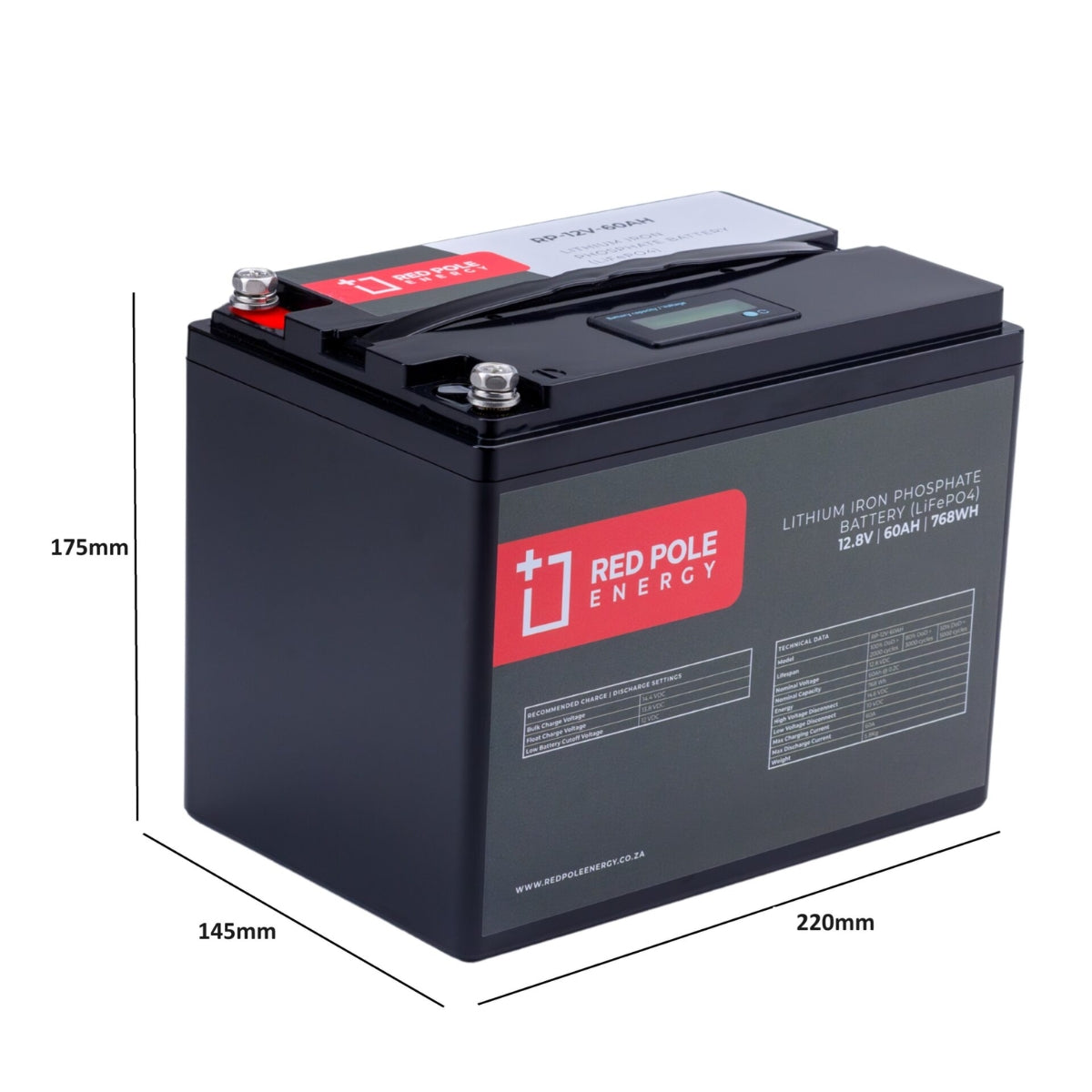

• Dimensions (L x W x H) (mm): 223 x 150 x 178
• Weight (kg): 5.8kg
• Terminal | Connectors: M8 Terminals
• Display: LCD SOC & V
• Discharge Current | Max Continuous:60A
• Peak Discharge Current (< 3s):180A
• Charge Current | Max Continuous: 60A
• Cell Type: Cylindrical LFP | LiFePO4
• Operating Voltage Range:11.6V - 14.4V
• Recommended Discharge Low Voltage: 12V
• Recommended Bulk Charge Voltage: 14.4V
• Recommended Float Charge Voltage: 13.8V
• Self-Discharge Rate: < 3.5% per month
• Operating Temperature Range: Charge: 0°C to 45°C | Discharge: -20°C to 60°C
• Humidity Range: < 95% RH
• Protection: Over-voltage | Under-voltage | Short circuit
• IP Rating: IP65
• Casing Material: ABS Plastic
• Expected Lifespan: 100%DoD > 2000 cycles | 80%DoD > 3000 cycles | 50%DoD > 5000 cycles (0.2C charging and discharging, 25°C)
• Warranty: 3 years / 3000 cycles
• Certifications: UN38.3 | MSDS | UL1973 | UL9540A

What’s in the box

• 1 x Red Pole Energy 12V 60Ah 768Wh LiFePO4 Battery
