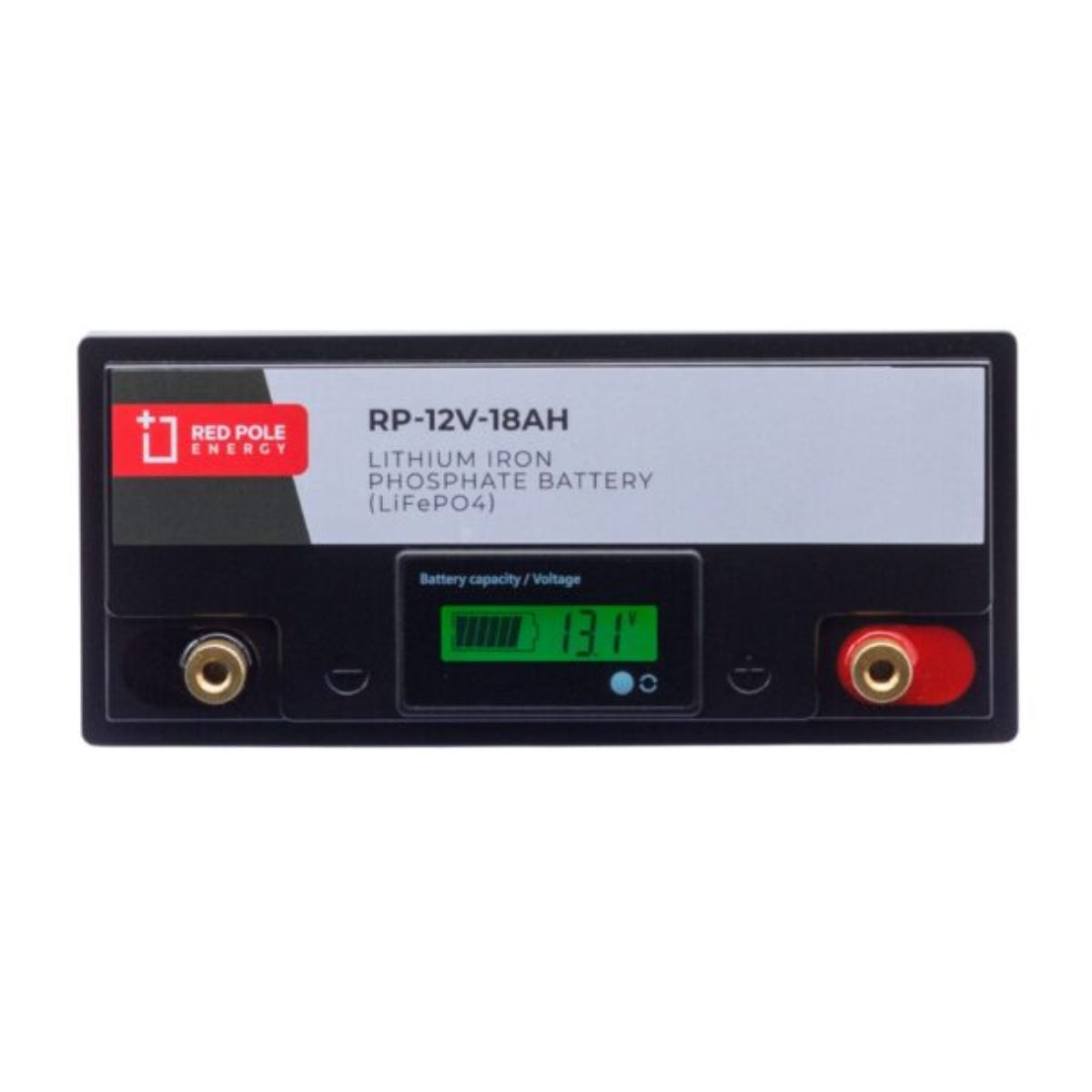

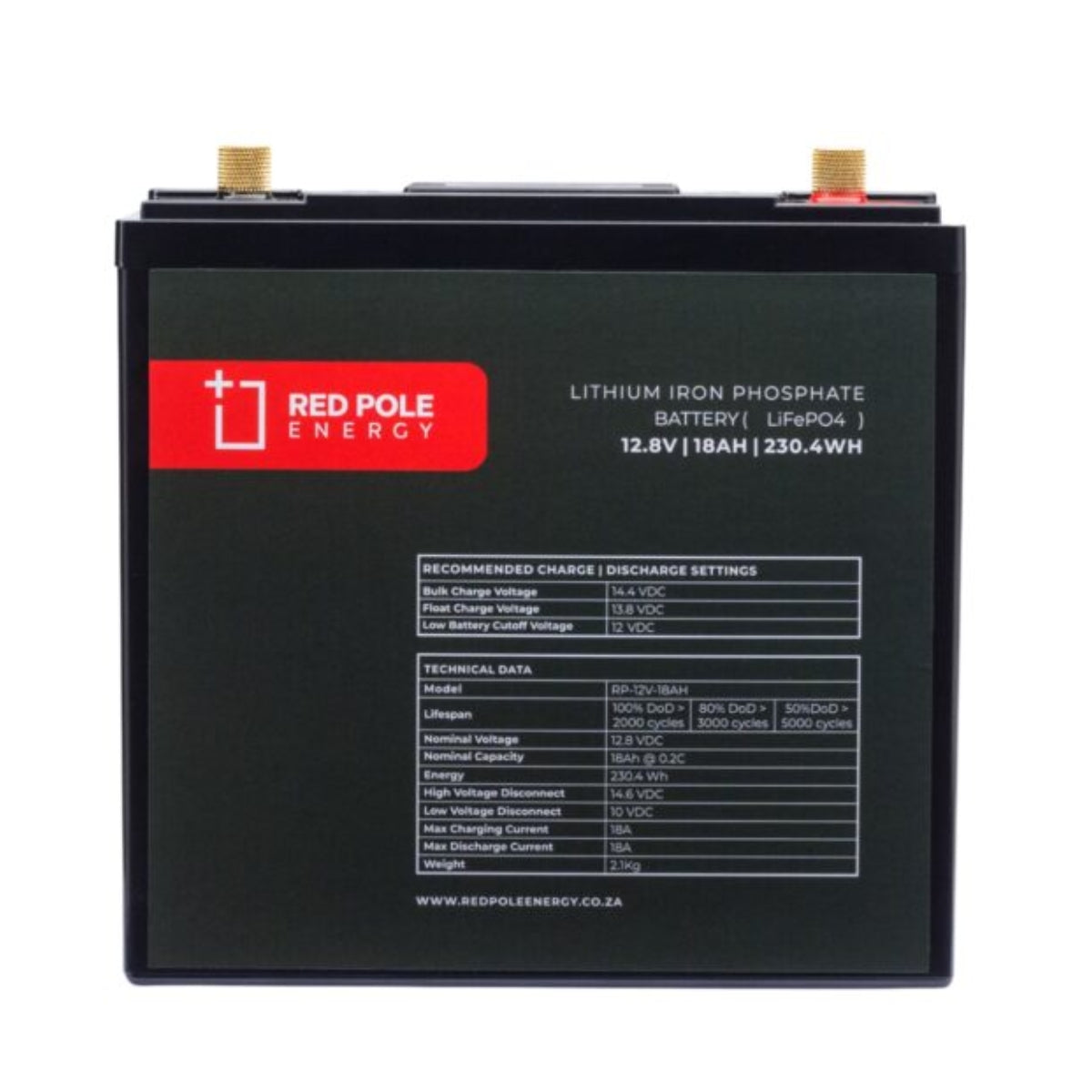

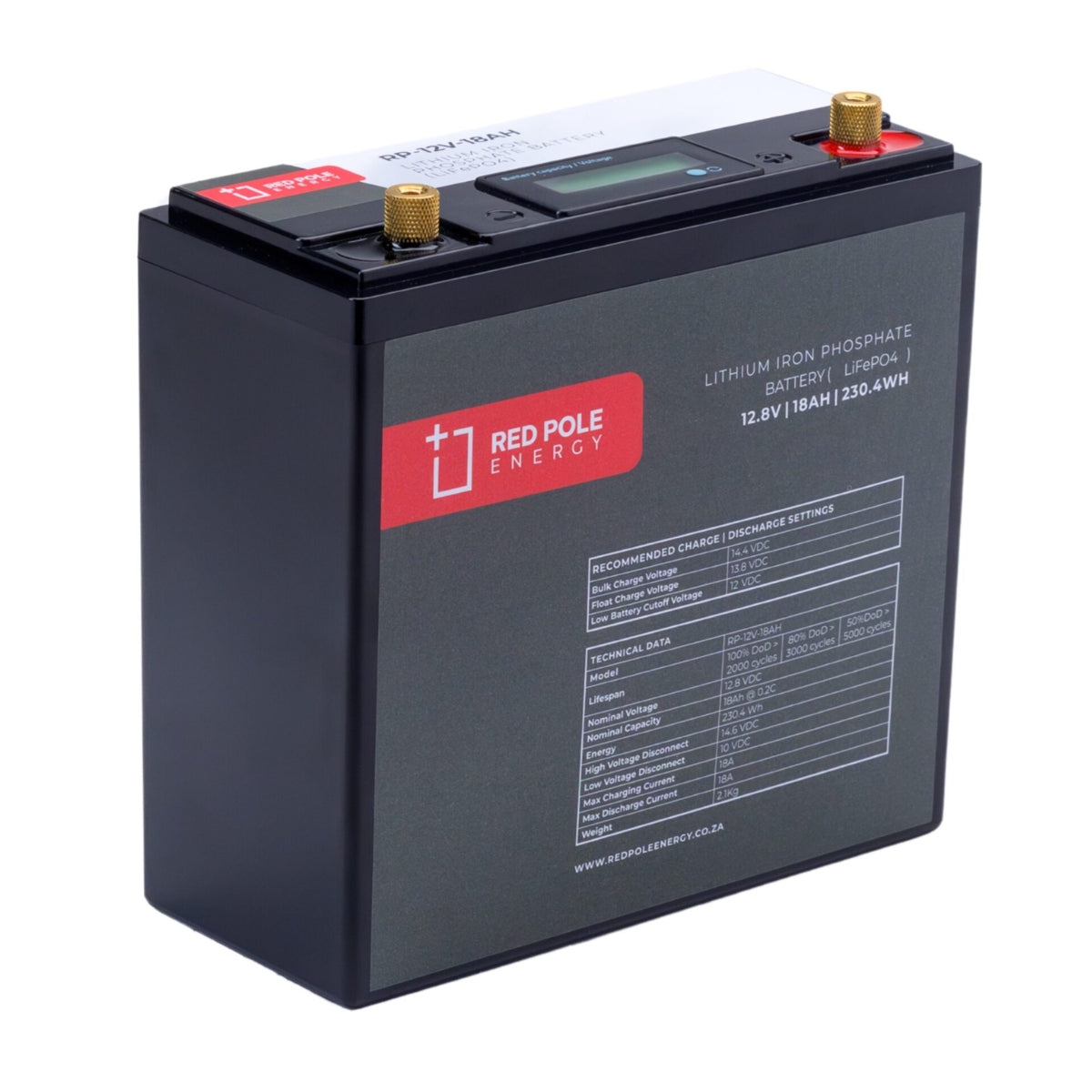

Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery
Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery
Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery
Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery
Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery

Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery

Red Pole Energy 12V 18Ah 230Wh LiFePO4 Battery

Regular price R 1,889.00 incl. VAT Sale price R 1,399.00 incl. VATSave R 490
R 1,21652 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Please note that there is  4-6 week lead time on this battery.

Product Description

Exceptionally safe lithium iron phosphate cells feature an integrated battery management system. Lightweight & compact, this waterproof & dust-resistant (IP55) battery is housed in a robust ABS plastic enclosure. Perfect for 12v18Ah lead acid replacement, this sealed, non-liquid battery won't emit fumes or leak in any position. With a higher charge & discharge rate than lead acid, this is an ideal backup battery for large alarm systems.

Product Features

  • Ultra safe lithium iron phosphate (LifePO4) cells
  • Integrated battery management system (BMS)
  • Light weight and compact
  • Water and dust resistant (IP55)
  • Highly durable sealed plastic enclosure
  • Drop-in lead acid replacement for alarm systems
  • Sealed and non-liquid (No fumes, no leaking, mount in any position)

Technical Specifications

  • Lithium Iron Phosphate (LifePO4) Battery Type
  • 230.4 Wh Usable capacity
  • 18Ah Nominal capacity @ 0.2C
  • 12.8 VDC Nominal Voltage
  • Operating Voltage Range: 11.6 VDC to 14.4VDC
  • Operating Temp Range: Charge: 0°C to 45°C |
  • Discharge: -20°C to 60°C
  • Protection: Over-voltage | Under-voltage | Short circuit | Dust and water resistant Lifespan: 2]000 cycles @ 0.2C charging, or discharging until 70% capacity

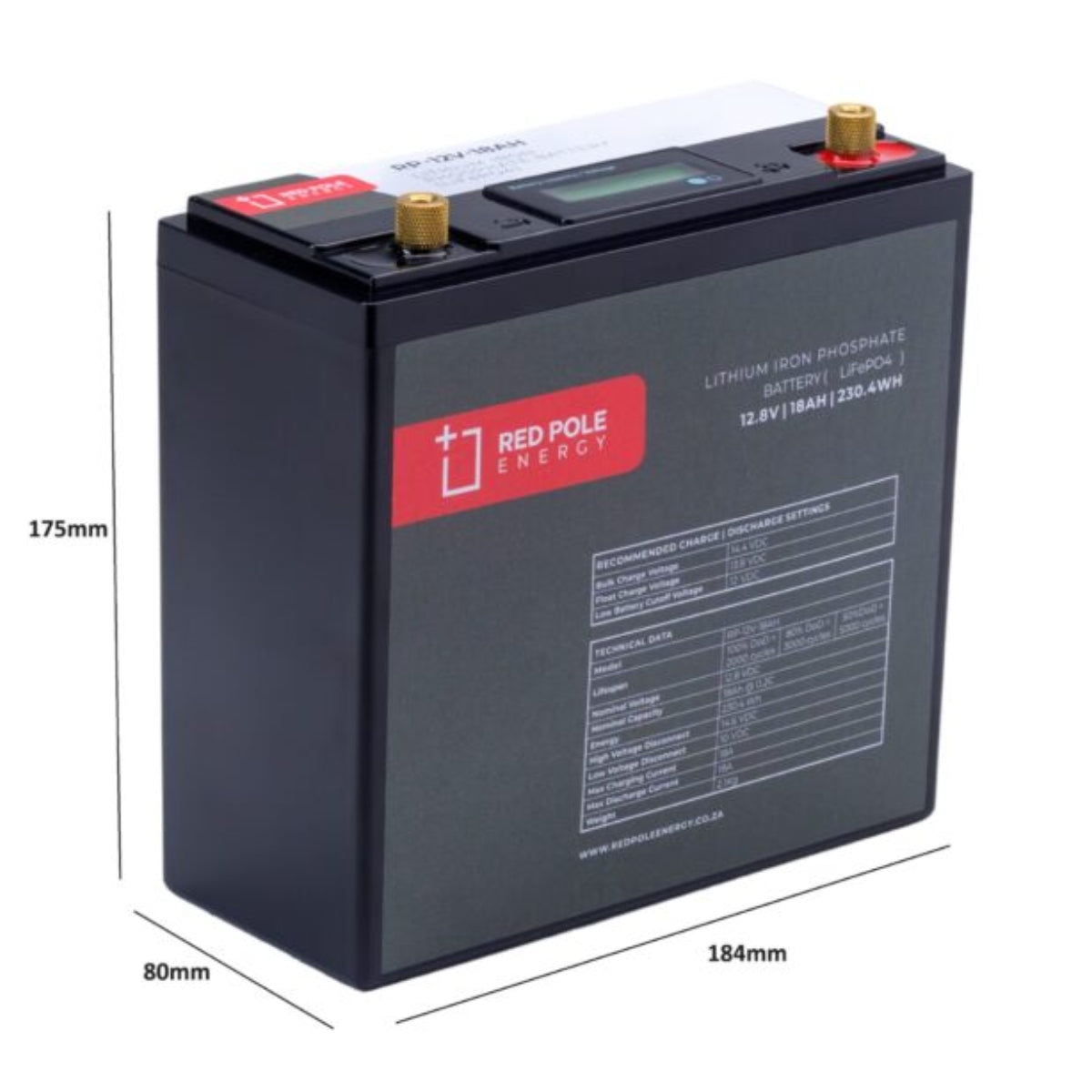

  • Dimensions: 175mm x 80mm x 185mm
  • Terminal: M5
  •  Weight: 2100g
  • Warranty: 3 Year

Charging/Discharging

  • Bulk Charging Voltage: 14.4 VDC
  • Float Charging Voltage: 13.8 VDC
  • Charge Current: Max 18A
  • Discharge Current: Max 18A (Burst 24A,<3s)
  • Discharge Voltage Cut-out: 10 VDC
  • Over-voltage Cut-out: 14.6 VDC
  • Discharge Current: 1A for 18hrs | 2A for 9hrs | 18A for 1hr | Max 24A burst
  • Self-discharge rate: < 3.5% per month

What’s in the box

  • 1 x 12v 18Ah 230Wh Lithium Battery

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
