RCT Axpert MAX 2 8K48V 8kVA 8kW 48V Hybrid Inverter - Sustainable.co.za

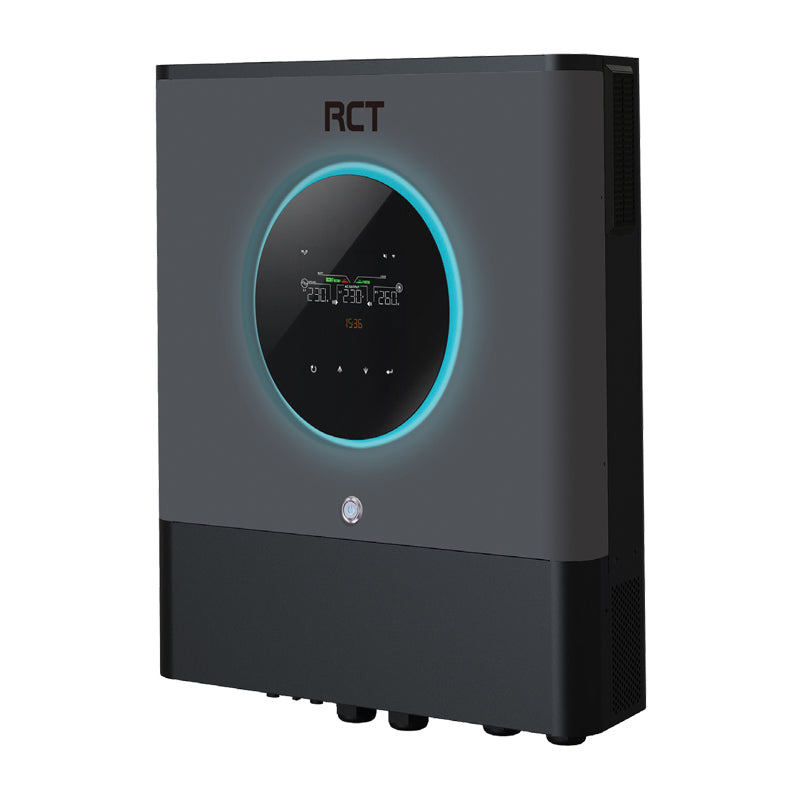

RCT Axpert MX 2 8K48V 8kVA 8kW 48V Hybrid Inverter

RCT Axpert MX 2 8K48V 8kVA 8kW 48V Hybrid Inverter

Regular price R 33,420.00 incl. VAT Sale price R 26,735.99 incl. VATSave R 6,684.01
R 23,24869 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Key Features

  • Customizable status LED bar with RGB lights.
  • Touchable button with large 5” coloured LCD.
  • Built-in Wi-Fi for mobile monitoring (Android/iOS App is available).
  • Supports USB on-the-go function.
  • Data log events stored in the inverter.
  • Reserved communication port for BMS (RS485, CAN-BUS or RS232).
  • Replaceable fan design for ease of maintenance.
  • Battery independent design.
  • Configurable AC/PC output usage timer and prioritization.
  • Selectable high power charging current.
  • Compatible to utility mains or generator input.
  • Built-in anti-dust kit.
  • Built-in DC output for DC fan, LED bulb router and so on.
  • Parallel operation with 6 units.

General

  • Model Number: RCT-AXMX2-8K48V.
  • Rated Power: 8000VA / 8000W.
  • Parallel Capability: Yes, 6 Units.

Input

  • Voltage: 230 VAC.
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers), 90-280 VAC (Home Appliances).
  • Frequency Range: 50 Hz / 60 Hz (Auto Sensing).

Output

  • AC Voltage Regulation (Batt. Mode): 230 VAC ± 5%.
  • Surge Power: 16000 VA.
  • Efficiency (Peak): 93%.
  • Transfer Time: 15ms (For Personal Computers) 20ms (For Home Appliances).
  • Waveform: Pure sine wave.
  • No Load Power Consumption: < 70W.
  • DC Voltage: 12 VDC ± 5%, 100W.

Battery

  • Battery Voltage: 48 VDC.
  • Floating Charge Voltage: 54 VDC.
  • Overcharge Protection: 66 VDC.

Solar and AC Charging

  • Solar Charger Type: MPPT
  • Maximum Pv Array Power: 8000 (4000W x 2)
  • Mppt Range @ Operating Voltage: 90~450 VDC
  • Maximum Pv Array Open Circuit Voltage: 500 VDC
  • Maximum Solar Charge Current: 150A
  • Maximum Ac Charge Current: 120A
  • Maximum Charge Current: 150A

Other

  • Product Dimensions: 158.4 mm x 502.5 mm x 530.8 mm.
  • Product Weight: 20 kgs.
  • Communication Interface: USB / RS232 / RS485 / Wi-Fi / Dry-contact.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
