Product Description:

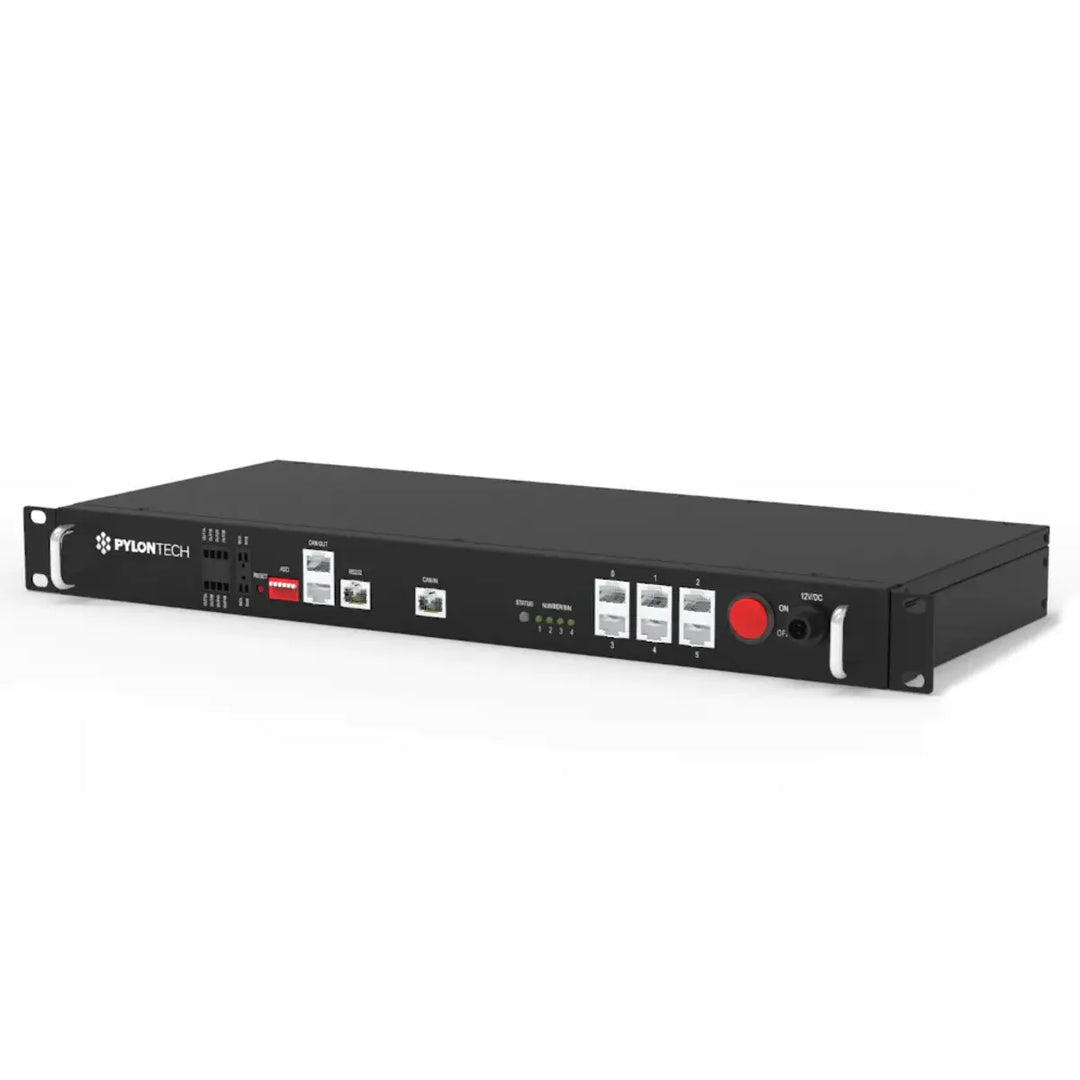

Communication Module: LV-Hub is the CAN/RS485 communication hub for multiple 48V battery groups in parallel connection.
The LV-Hub can manage up to 5 groups, each group consisting of the following:
16 x US2000C
16 x US3000C
16 x UP5000
The LV-Hub is required when 17 or more solar batteries are used with a system that requires communication.
Technical Specifications:
Operating Voltage Range: 12Vdc
Communication interface: CAN/RS485
System Consumption: 2W
Size: 442*150*44mm
Protection degree: IP20
Weight (KG): 3.5
Operation Life: 15 Years
Working Temperature: -20~60℃
Storage temperature: -40~80℃
Can (Max 5 Groups): Baud rate: 500K; terminal resistance: 0/120Ω
RS485( Max 5 Groups) Baud rate: 9600/115200
NOTE: For warranty purposes, the LV-Hub is considered a component of the solar battery system and is therefore covered by the battery warranty terms.
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
