PVSE 600V Protection Box 4 Inputs 4 Outputs 16A Isolator Type I_II SPD

Product Overview

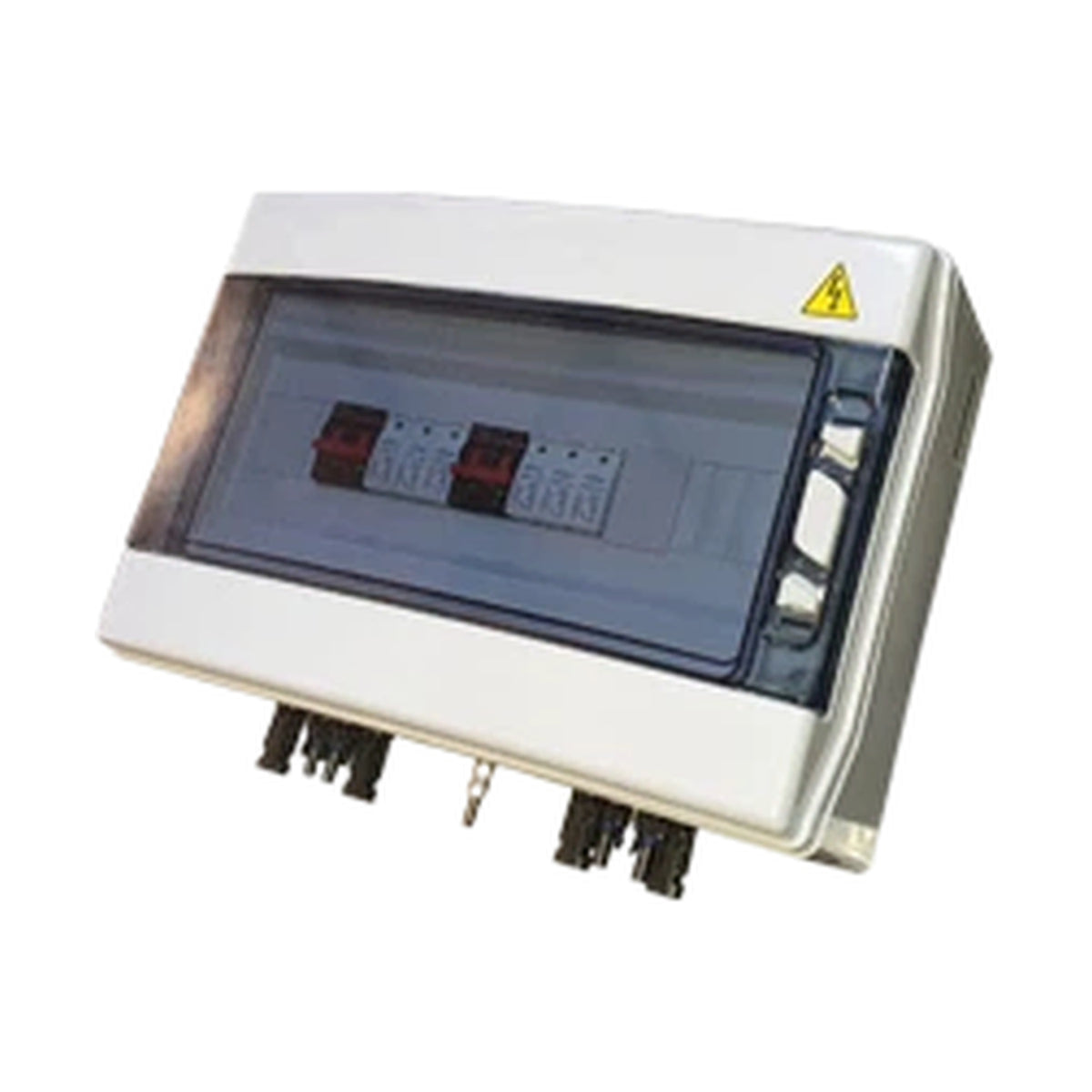

The PVSE DCB-NF-4I-600V-I16A-I-II-4O DC Protection Box is designed to provide individual string protection and external isolation for solar PV strings. This 600V, 4-input/4-output configuration uses a 16A isolator and Type I & II surge protection, with pre-wired internal switchgear to help reduce installation time.

Key Features

• 4-input and 4-output DC protection box configuration.
• 600V model with 16A isolation and Type I & II surge protection as identified by the supplier model code.
• Original Stäubli MC4 solar connectors are specified for convenient PV string connection.
• IP65, UV-stabilised enclosure recommended for outdoor use.
• IK08 impact resistance and Class II double insulation.
• Pre-wired switchgear and clearly marked connectors help streamline installation.

Applications

• Solar PV string protection.
• External DC isolation for four PV string circuits.
• Residential, commercial and off-grid solar power systems where this exact configuration is specified.

Why Choose This Product?

This PVSE protection box combines string protection, external isolation and Type I & II surge protection in a pre-wired outdoor-suitable enclosure, helping installers achieve a neat and practical DC protection arrangement.

Important Notes

• Use only where the exact voltage, current, input/output and SPD configuration is suitable for the solar power system design.
• Installation must be carried out by a suitably qualified solar/electrical installer.
• The supplier datasheet states that the product image may not represent the actual product.
