Product Overview

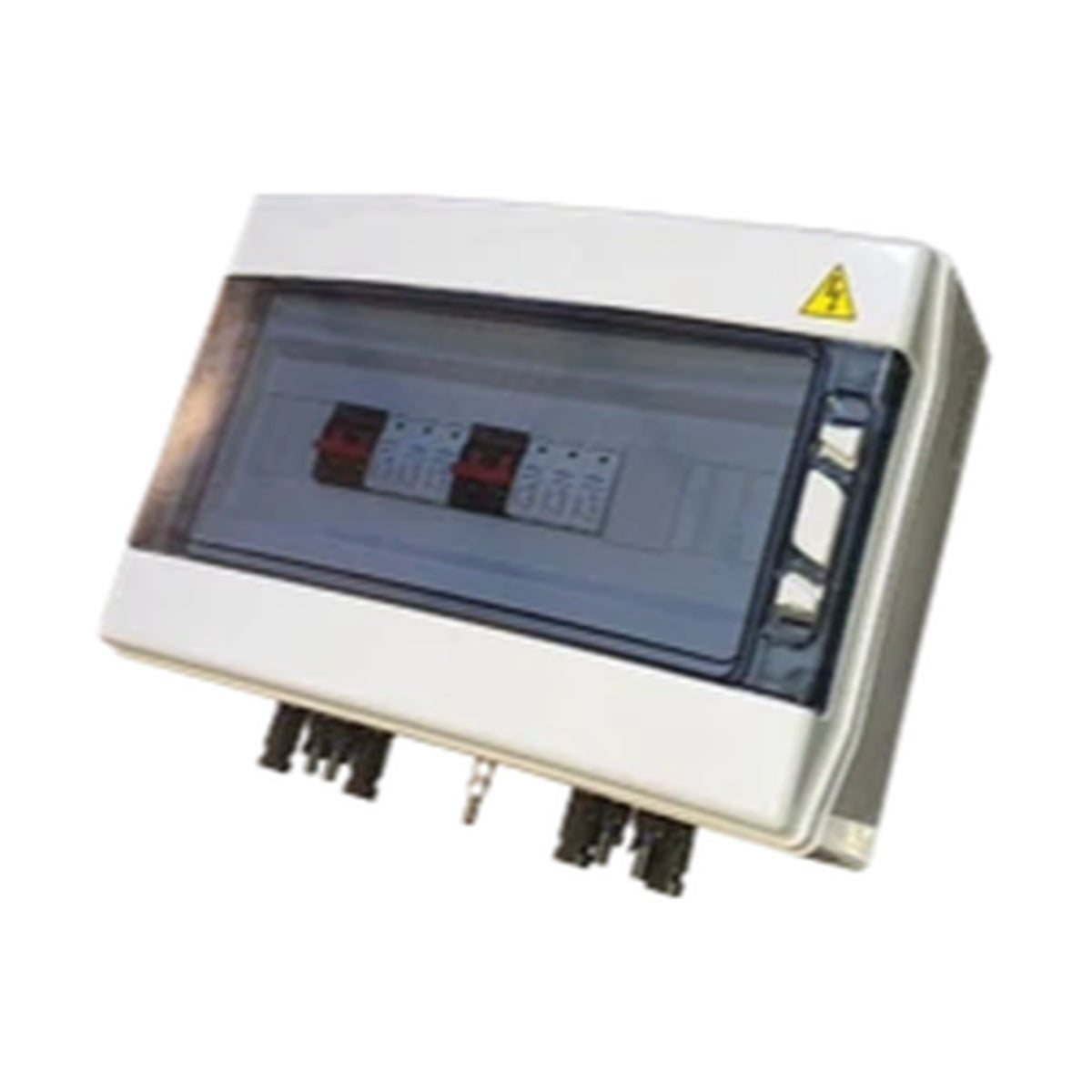

The PVSE 1000V DC Combiner Box is designed for solar PV installations requiring the protection, combining and isolation of up to five DC string inputs into a single output. Based on the supplied product code, the unit is configured for 30A fused inputs, a 160A isolator and Type I & II surge protection, making it suitable for installer-specified commercial and larger solar power systems where these ratings match the system design.
Key Features
- Five DC string inputs combined into a single output for organised PV array connection.
- 30A fused input protection.
- Rated for systems up to 1000V DC.
- 160A DC isolator rating for system isolation and maintenance requirements.
- Type I & II surge protection for protection against transient overvoltage events.
- Pre-configured combiner-box format helps simplify installation compared with assembling individual protection components on site.
Applications
- Commercial and larger residential solar PV arrays.
- Five-string PV installations requiring a common DC output.
- Grid-tied, hybrid and off-grid solar power systems where the specified voltage, current and protection ratings are suitable.
- Installer-designed DC protection and isolation systems.
Why Choose This Product?
This PVSE DC combiner box provides a practical way to combine multiple PV strings while incorporating key DC protection and isolation functions in a single enclosure. It is particularly suited to professional solar installations where five incoming strings need to be consolidated into one protected output. Final product selection should always be confirmed against the PV array voltage, string current, inverter requirements and system protection design.
Important Notes
- Installation must be completed by a suitably qualified electrician or solar installer.
- Confirm that the 1000V DC rating, 30A input fuse rating and 160A isolator rating are appropriate for the intended PV array before installation.
- Do not exceed the permitted voltage and current ratings of the combiner box or connected equipment.
- The supplied product code appears to indicate 5 inputs and 1 output; confirm the final character as “1O” with the supplier before publishing.
- Enclosure IP rating, dimensions, internal component brands, certifications and warranty have not been confirmed from an exact supplier datasheet and should be verified before publishing.
Technical Specifications
| Specification |
Detail |
| Brand |
PVSE |
| Product Code |
DCB-F30A-5I-1000V-I160A-I-II-1O |
| Product Type |
DC Combiner Box |
| Number of Inputs |
5 |
| Number of Outputs |
1 (confirm with supplier) |
| Rated Voltage |
1000V DC |
| Input Fuse Rating |
30A |
| Isolator Rating |
160A |
| SPD Type |
Type I & II |
