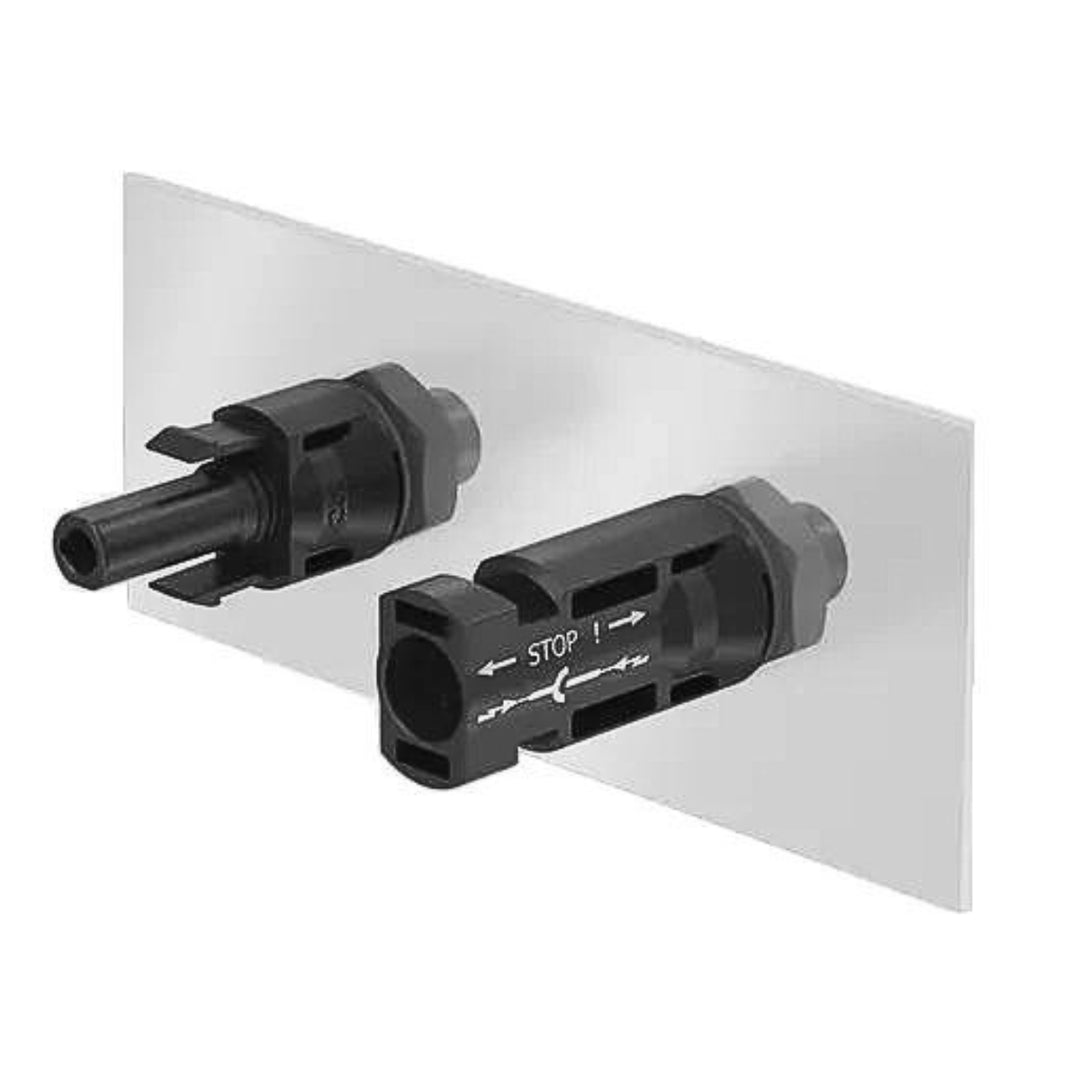

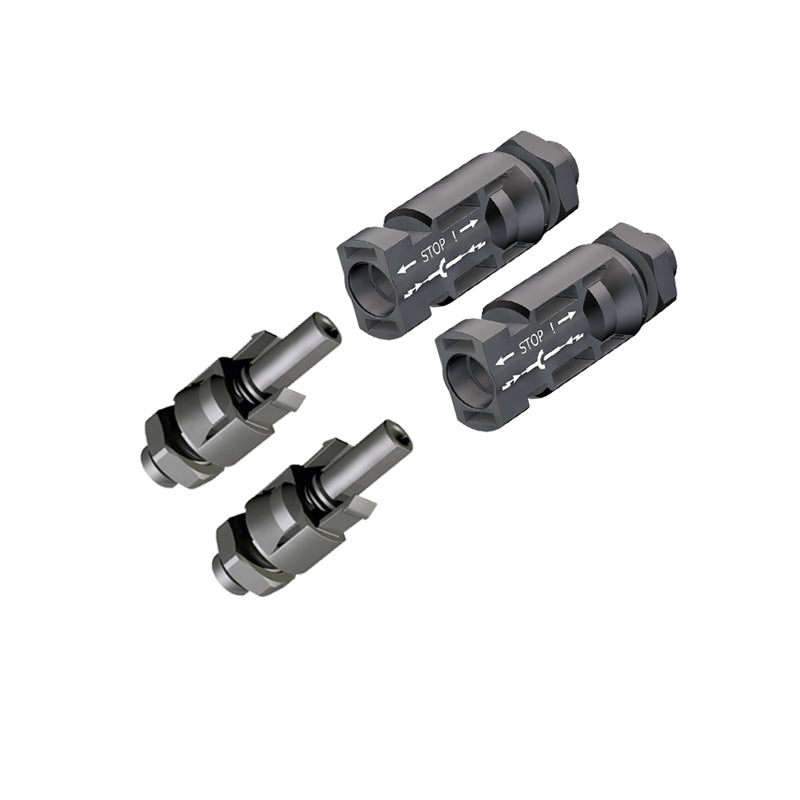

Multi Contact MC4 Panel Receptacle Pack
Technical data
- Connector system: Ø 4 mm.
- Rated voltage: 1000 V DC / 1250 V DC (TÜV); 1000 V DC / 1500 V DC (UL).
- Rated current TÜV (85 °C): 39 A (4 mm²; 12 AWG); 45 A (6 mm²; 10 AWG).
- Rated impulse voltage: 12 kV (1000 V) / 16 kV (1250 V).
- Ambient temperature range: -40 °C... +85 °C (TÜV); -40 °C... +75 °C (UL).
- Upper limiting temperature: 105 °C (TÜV).
- Degree of protection: Mated: IP65; IP68 (1 m/1 h); Unmated: IP2X.
- Overvoltage category / Pollution degree: CATIII / 3.
- Contact resistance of plug connectors: ≤ 0.25 mΩ.
- Safety class: II.
- Contact system: MULTILAM.
- Type of termination: Crimping.
- Contact material: Copper, tin plated.
- Insulation material: PC / PA.
- Locking system (UL): Locking type.
- Flame class: UL94-V0.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
