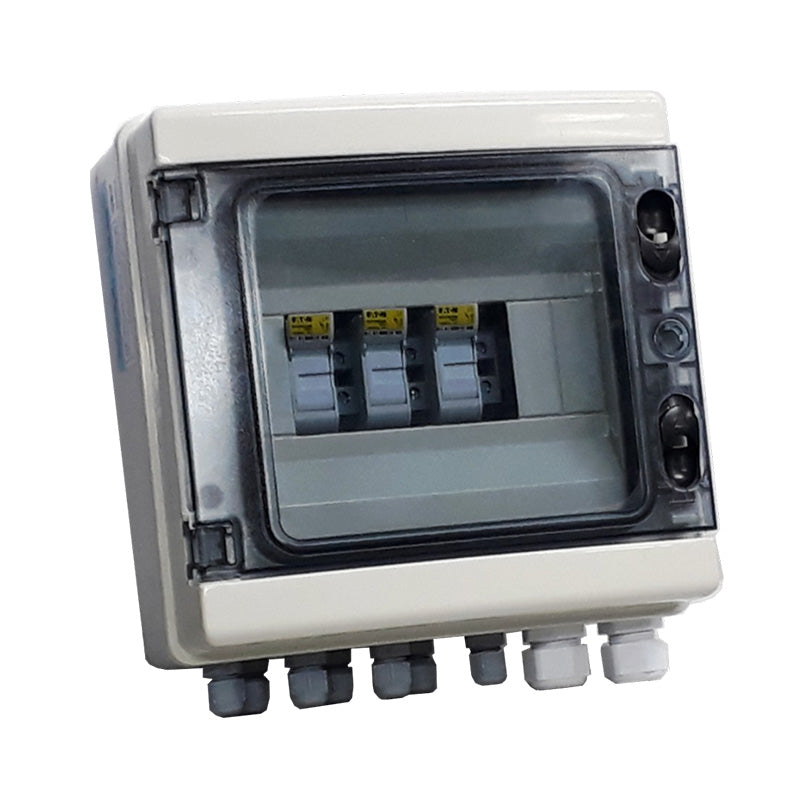

Microcare 5 String Breakerless Low Voltage Combiner Unit
Technical Specifications
- No. of String Inputs: 5.
- Max PV Input: 135 VOC at 25ºC.
- Max Input Current: 15A per series string.
- Fuse Holder Rating: 32A Ceramic.
- Input Cable Size: 6mm².
- Output Cable Size: 10mm².
- Input Connection: MC4.
- Output Connection: Rail Mounted Terminals.
- Dimensions in mm (HxWxD): 280 x 410 x 130.
- Weight: 4.5kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
