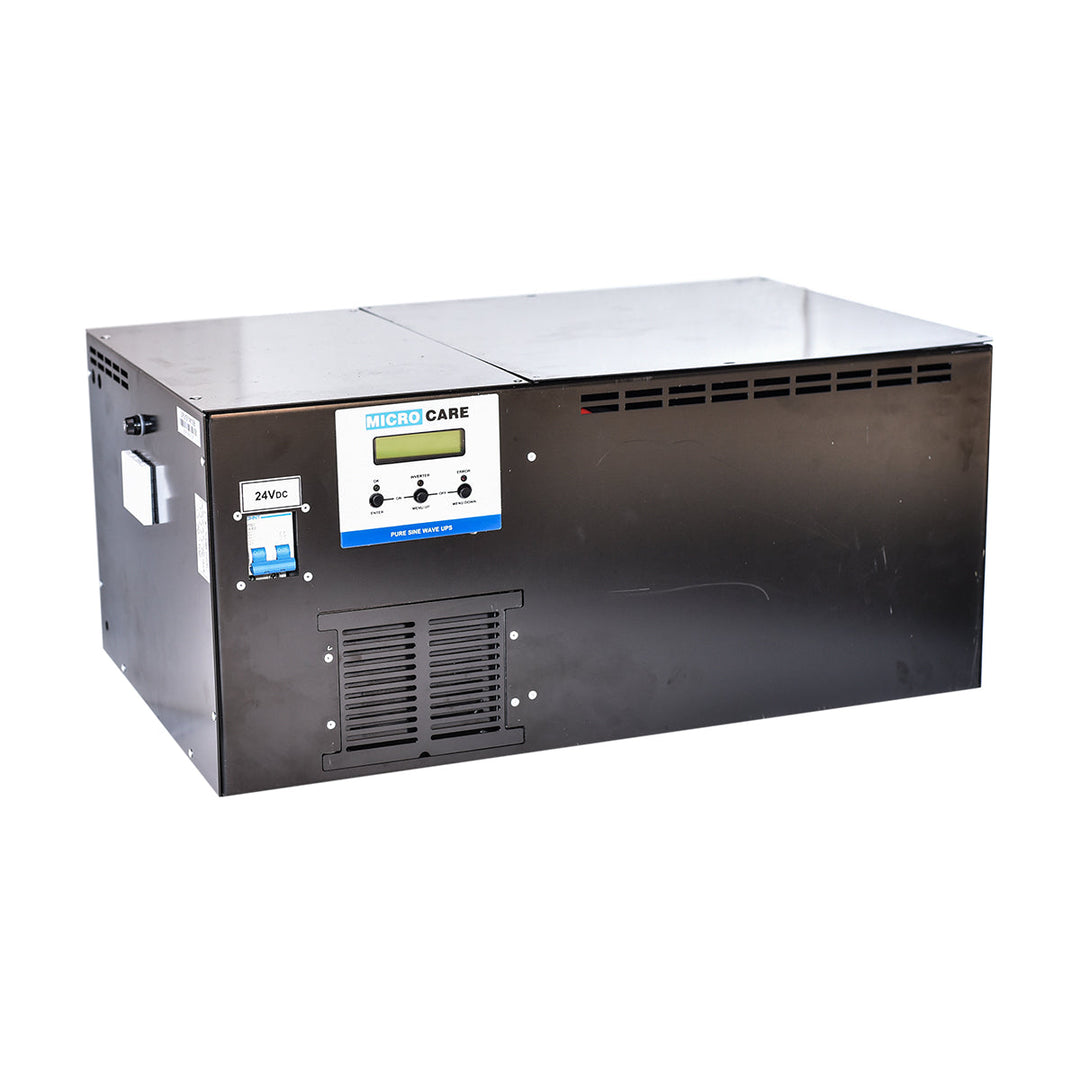

The Microcare Mobile Pure Sine Wave UPS was designed as an easy plug in solution for load-shedding and back up power for domestic and business applications. It is designed with the latest Microcare Inverter software to improve the automatic change over from the grid to the Inverter. Our cutting edge software Innovations allow for uninterrupted supply to a range of applications from a sensitive server room to heavier industrial machines. The UPS is able to anticipate load failure and pre-charges the circuits for rapid transfer of power and change-over. When the grid returns with a fluctuating voltage, the Microcare UPS/Inverter can delay to a set connection time to avoid load damage.
Features:
- LCD display and low idle current
- Designed to run off 2 x 105Ah 12V Batteries
- High surge capacity for motor start
- Timed overload capacity with auto shutdown
- 3-Attempt auto restart
- Short circuit protection
- Built in, high rate, multi-stage battery charger
- Local service turnaround time
- 3 year warranty
- Fan cooling for optimum performance & component longevity
- Mounted on wheels for mobility Audible buzzer indicating faults, overload and status
- Dimensions: 660 x360 x 420mm
Capacity:
- Voltage range (VDC): 20 -30v
- Peak current draw (IDC): 110A
DC Input:
- Standby power draw (W): <19W
- Voltage (VAC): 230V
Output:
- RMS current supply (IAC): 14 (28A on grid)
- Peak Power: 200% on battery
- Voltage regulation: <3% RMS for full battery voltage range
- Frequency (Hz): 50Hz
- Power factor: 1
- Wave form: Pure Sine Wave
- Peak efficiency (%): 94%
- Overload protection: Programmable Overload Levels & Auto Retry
Charger:
- Voltage float (VDC): 27.6V
- Voltage boost (VDC): 28.6-31V (Selectable)Â
- Peak current (IDC): 50A
- Boost time (Hours): 1-3hrs (Selectable)
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
