Features and Benefits

• Available for 36/48 (VDC) systems (Model specific. Please see specifications sheet above) with output power of 10-15kW.
• LCD display and low idle current.
• High surge capacity for motor start.
• Timed overload capacity with auto shutdown.
• 3-Attempt auto restart with short circuit protection.
• Built in, high rate, multi-stage battery charger.
• Minimum local service turnaround time with a 3-year warranty.
• Fan cooling for optimum performance and component longevity.
• Audible buzzer indicating faults, overload and status.
• Available with a Comms Module for Wi-Fi access.

Technical Specifications
General

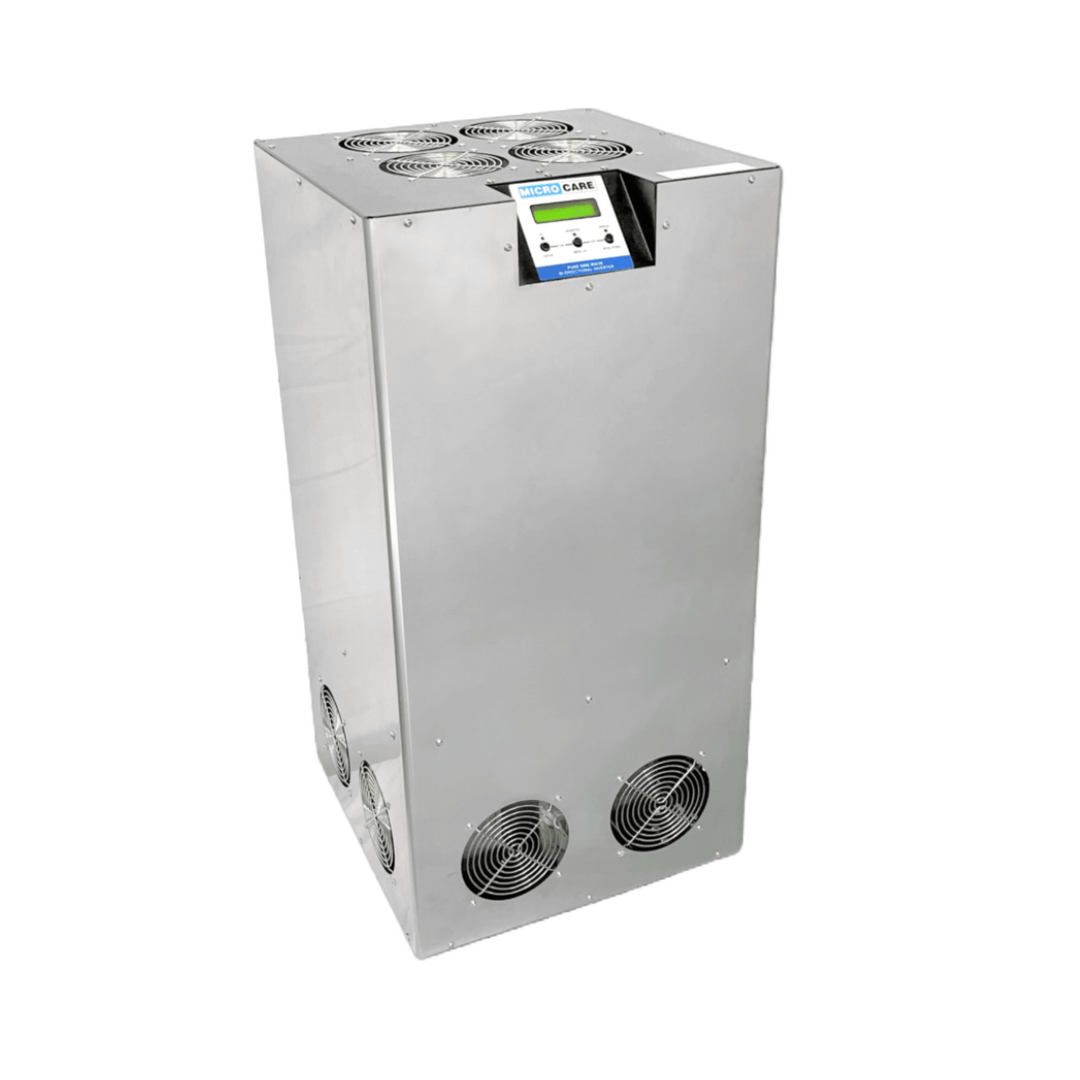

• Model: 15kW.
• Capacity: 15 000W.

DC Input

• Voltage (VDC): 48V.
• Peak current draw (IDC): 375A.
• Standby power draw (W): 150W.

AC Output

• Voltage (VAC): 230V.
• Amps (A) 65A (80A at 200% output).
• Voltage regulation: <3% for full range.
• Frequency (Hz): 50Hz.
• Power factor: 1.
• Wave form: Pure Sine Wave.
• Peak efficiency (%): <94%.
• Hardware protection: Circuit Breaker
• Overload protection: Programmable Overload Levels and Auto Retry.

DC Charger

• Voltage float (VDC): 55.2V.
• Voltage boost (VDC): 57.2 – 62V.
• Peak Current (IDC): 100A.
• Boost Time (Hours): 1 - 3 (Selectable).
