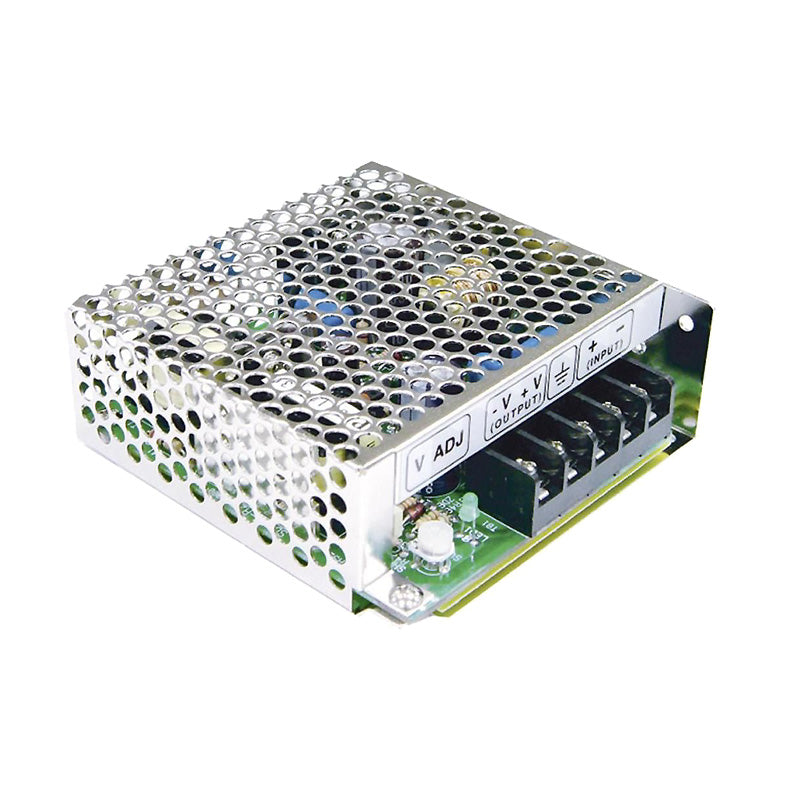

Meanwell SD-25 25W Single Output DC-DC Converter

Meanwell SD-25 25W Single Output DC-DC Converter

Meanwell SD-25 25W Single Output DC-DC Converter

Regular price R 426.96
R 491.00 incl. VAT
/
Shipping calculated at checkout.
  • We deliver across Africa
  • Secure online payments

Features

  • 2:1 wide input range.
  • Protections: Short circuit I Overload I Over voltage.
  • 1500VAC 1IO isolation.
  • Built-in EM1 filter, low ripple noise.
  • 100% full load burn-in test.
  • Fixed switching frequency at 83 KHz.
  • Low cost.
  • High reliability.
  • 2 years warranty.

Technical Specifications
Output

  • DC Voltage: 12V.
  • Rated Current: 2.1A.
  • Current Range: 0 ~ 2.1A.
  • Rated Power: 25.2W.
  • Ripple & Noise (max.): 120mVp-p.
  • Voltage Adj. Range: 11 ~ 16VDC.
  • Voltage Tolerance: ±1.0%.
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.3%.
  • Setup, Rise, Hold up Time: 2.5s, 50ms at full load.

Input

  • Voltage Range: A - 9.2 ~ 18VDC, B - 19 ~ 36VDC, C - 36 ~ 72VDC.
  • Efficiency (Typ.): 75%.
  • DC Current: 1.6A/24V.

Protection

  • Overload: Protection type: Hiccup mode, recovers automatically after fault condition is removed, 105 ~ 150% rated output power.
  • Open Voltage: Protection type: Hiccup mode, recovers automatically after fault condition is removed, 16.8 ~ 20V/10% load.

Environment

  • Working Temp.: -10 ~ +60°C (Refer to "Derating Curve")
  • Working Humidity: 20 ~ 90% RH non-condensing.
  • Storage Temp. Humidity: -20 ~ +85°C, 10 ~ 95% RH.
  • Temp. Coefficient: ±0.03%/ (0 ~ 50°C).
  • Vibration: 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes Design refer to LVD.

Safety & EMC

  • Withstand Voltage: I/P-O/P:1.5KVAC, I/P-FG: 2KVAC, O/P-FG: 0.5KVAC.
  • Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100M Ohms / 500VDC / 25°C/ 70% RH.
  • EMC Emission: Compliance to EN55022 (CISPR22) Class B.
  • EMC Immunity: Compliance to EN61000-4-2, 3,4,6,8, EN55024, heavy industry level, criteria A.

Other

  • MTBF: 365.9K hrs min.
  • Dimension (L*W*H): 99mm x 97mm x 36mm.
