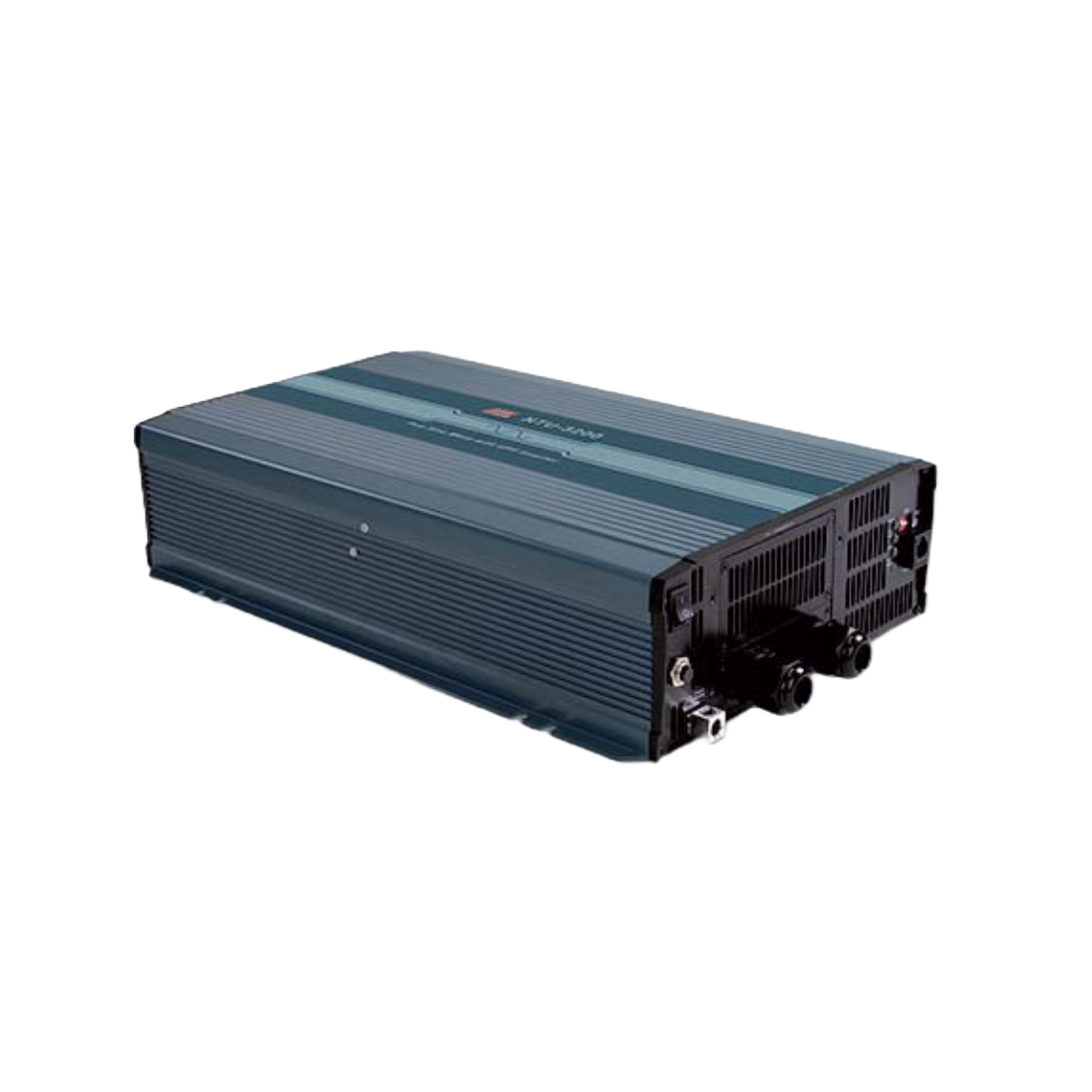

Meanwell NTU-3200-212UN 3KW 12V Inverter
Meanwell NTU-3200-212UN 3KW 12V Inverter

Meanwell NTU-3200-212UN 3KW 12V Inverter

Meanwell NTU-3200-212UN 3KW 12V Inverter

Regular price R 32,556.00 incl. VAT Sale price R 27,130.00 incl. VATSave R 5,426
R 23,59130 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Every product in the Mean Well range is the result of rigid procedures governing design, design verification test (DVT), design quality test (DQT), component selection, pilot-run production, and mass production.

Features

  • Built-in PS function (AC by-pass).
  • True sine wave output (THD<3%).
  • High surge power up to 6400W.
  • Temperature controlled cooling fan.
  • AC output voltage and frequency selectable by DIP S.W.
  • -25°C ~ +70°C wide operating temperature.
  • Power ON-OFF remote control.
  • Standby saving mode can be selectable.
  • Front panel indicator for operation status.
  • Protections:
    • Input: Reverse polarity / DC. low alarm / DC low shutdown / Over voltage.
    • Output: Short circuit / Overload / Over temp.
  • Battery over discharge protection (low voltage disconnect).
  • Suitable for lead-acid or li-ion batteries.
  • Remote Controller (IRC1, IRC2, IRC3 accessories sold separately).
  • Support RS-232 communication (Communication cable sold separately).
  • 3 years warranty.

Technical Specifications

AC Output
  • Rated Power (Continuous): 3200W.
  • Over Rated Power (3min): 3680W.
  • Peak Power (10sec): 4800W.
  • Surge Power (30 Cycles): 6400W.
  • AC Voltage:
    • Factory setting set at 230VAC.
    • 200 / 220 / 230 / 240 VAC Selectable by DIP S.W.
  • Frequency:
    • Factory setting set at 50± 0.1Hz.
    • 50/60Hz selectable by DIP S.W.
  • Waveform: True Sin Wave (THD<3%).
  • AC Regulation: ±3.0% at rated input voltage.

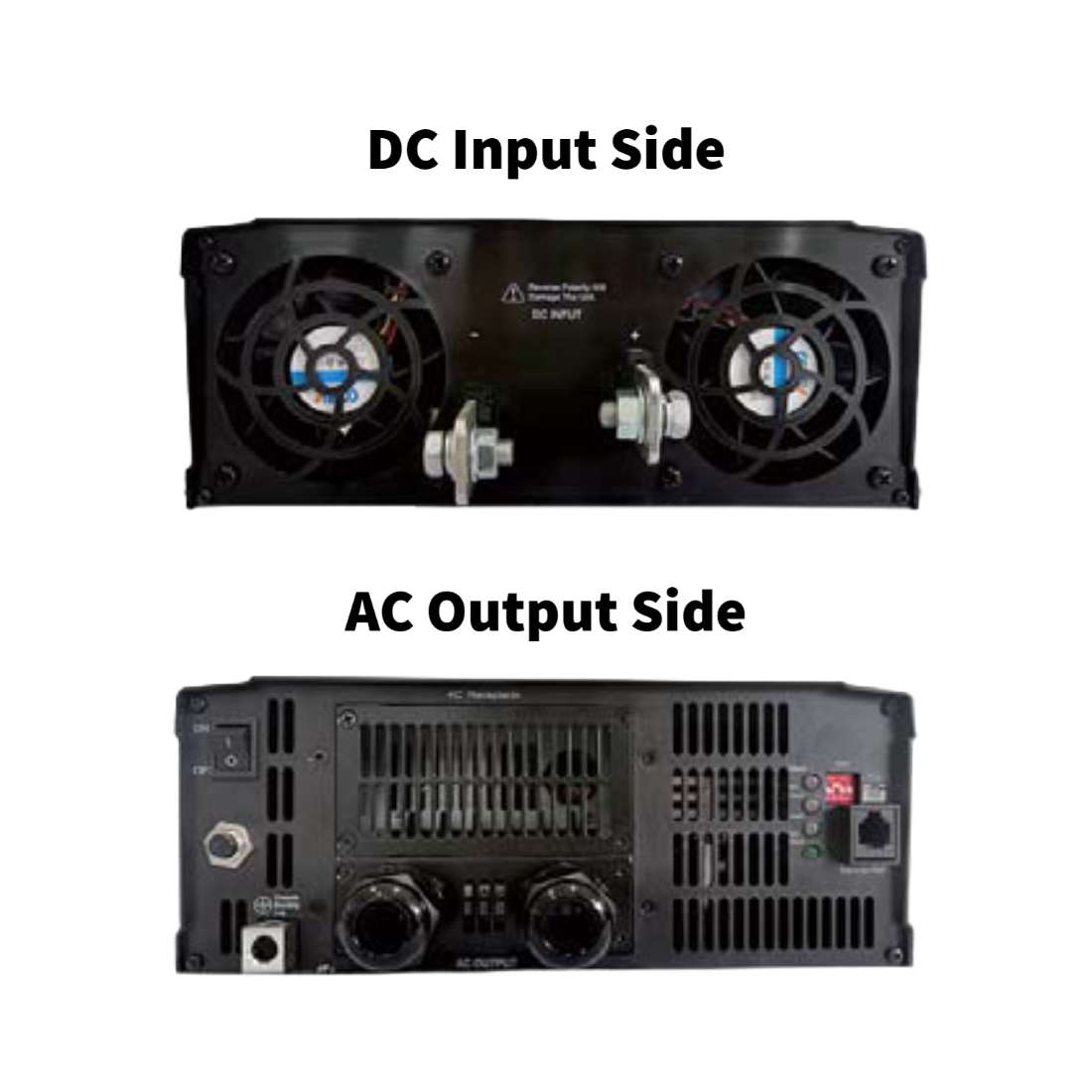

DC Input
  • DC Voltage: 12Vdc.
  • Voltage Range (Typ.): 10~16.5Vdc.
  • DC Current (Typ.): 320A
  • No Load Dissipation (saving mode) (Typ.):
    • Default disable, auto detect AC output load ≤ 10W will be changed to saving mode.
    • <15W.
  • Off Mode Current Draw: ≤2mA.
  • Efficiency (Typ.): 90%.
  • Battery Types: Lead Acid or Li-ion.
Protection
DC Input
  • Fuse (Internal): 40A*12.
  • Low:
    • Alarm: 11±0.3Vdc.
    • Shutdown: 10±0.3Vdc.
    • Restart: 12.5±0.3Vdc.
  • High:
    • Alarm: 15±0.3Vdc.
    • Shutdown: 16.5±0.3Vdc.
    • Restart: 1.5±0.3Vdc.
  • Bat. Polarity: By internal fuse open.
AC Output
  • Over Temperature: Protection type - Shut down o/p voltage, re-power on to recover.
  • Output Short: Protection type - Shut down o/p voltage, re-power on to recover.
  • Over load (Typ.):
    • 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec.
    • Protection type - Shut down o/p voltage, re-power on to recover.
  • TB Type: None
Function
  • Remote Control
    • Connector: power ON-OFF remote control by front panel dry contact connector (by RELAY), Open: Normal work; Short: Remote Off.
    • Accessory: Remote controller sold separately.
  • RS-232 Communication: RS-232 ~ RJ11 Type connector.
AC UPS Mode
  • AC Input Range: 200/ 220/ 230/ 240 VAC ±16%, recover ±13%.
  • Frequency range: 45 ~ 65Hz.
  • Transfer time (Typ.): 10ms Inverter - AC by pass.
Environment
  • Working temp.: -25 ~+70°C (Refer to "Derating curve").
  • Working Humidity: 20% ~ 90% RH non-condensing.
  • Storage Temp., Humidity: -30 ~ +70°C / -22 ~ +158°F, 10 ~ 95% RH non-condensing.
  • Vibration: 10 ~ 500Hz, 3G 10min./ 1 cycle, 60min. each along X, Y, Z axes.

General

  • Dimension: 440*270*98 mm (L*W*H).
  • Packing Weight: 10.4 Kg.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
