Specification

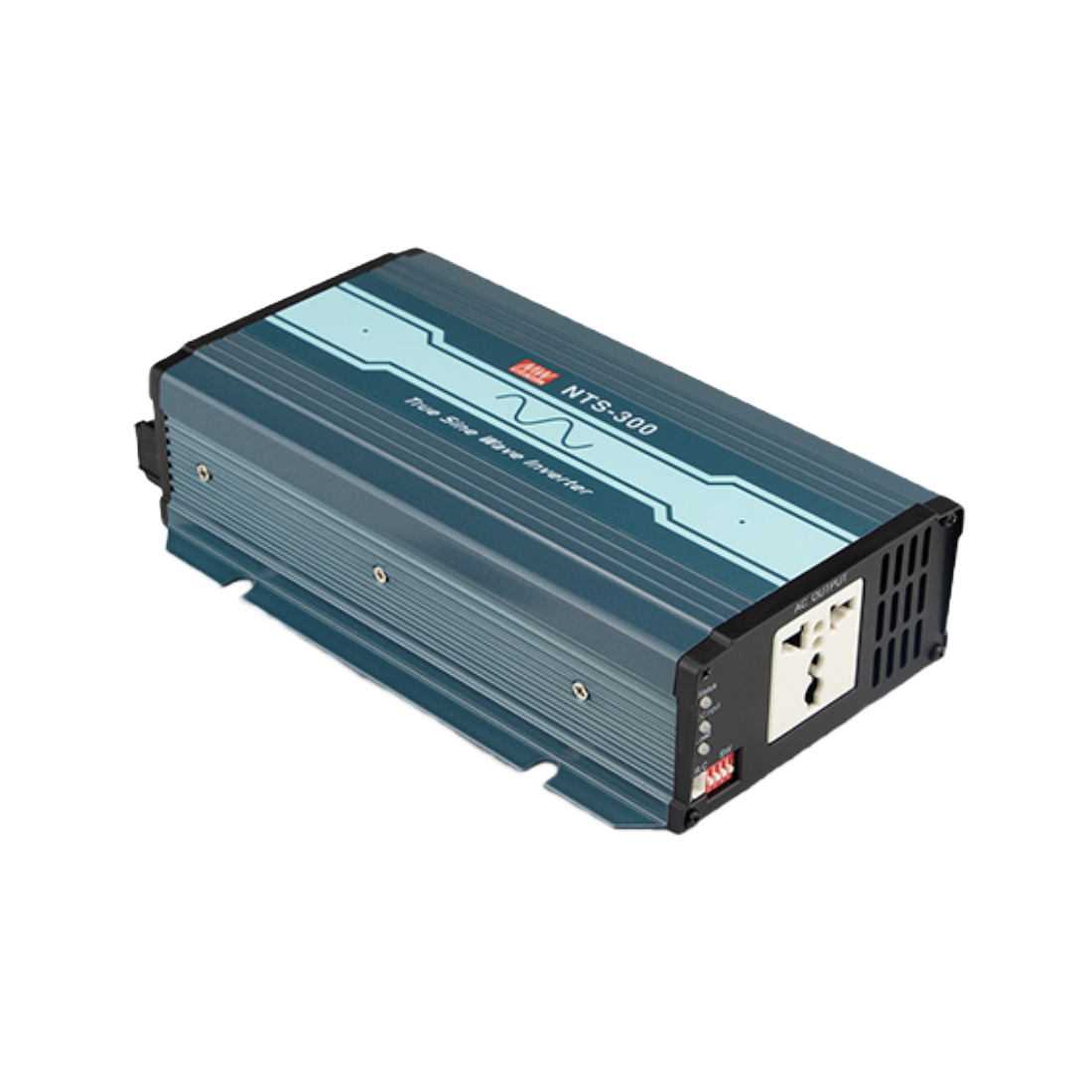

- Model no.: NTS-300-212UN
- Ac output
- Rated power(continuous): 300W
- Over rated power(3 min.): 345W
- Peak power(10 sec.): 450W
- Surge power(30 cycles).
- Ac voltage: 2000
- Default setting set at 230vac: 200 / 220 / 230 / 240Vac selectable by dip S.W
- Frequency
- Default setting set at 500.1hz: 50/60hz selectable by dip S.W
- Waveform: true sine wave (thd<3%)
- Ac regulation: ±3.0% at rated input voltage
- Dc input
- Dc voltage: 12VDC
- Voltage range (typ.): 10 ~ 16.5VDC
- Dc current (typ.): 30A
- No load disspation (typ.)
- Non-saving mode: 10W
- Saving mode: default disable,≦1.2W ~1.5W by models @ auto detect ac output load≦10W will be changed to saving mode. | 1.2W
- Off mode current draw: ≦1maA
- Efficiency (typ.) Note.1: 92%
- Battery types: lead acid or li-ion
- Protection
- Dc input
- Fuse (internal): 30A*2
- Low
- Alarm: 11±0.3VDC
- Shutdown: 10±0.3VDC
- Restart: 12.5±0.3VDC
- High
- Alarm: 15.5±0.3VDC
- Shutdown: 16.5±0.3VDC
- Restart: 15±0.3VDC
- Bat. Polarity: by internal fuse open
- Ac output
- Over temperature: protection type : shut down o/p voltage, re-power on to recover
- Output short: protection type : shut down o/p voltage, re-power on to recover
- Over load (typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | protection type : shut down o/p voltage, re-power on to recover
- Gfci proctection: none
- Function
- Remote control

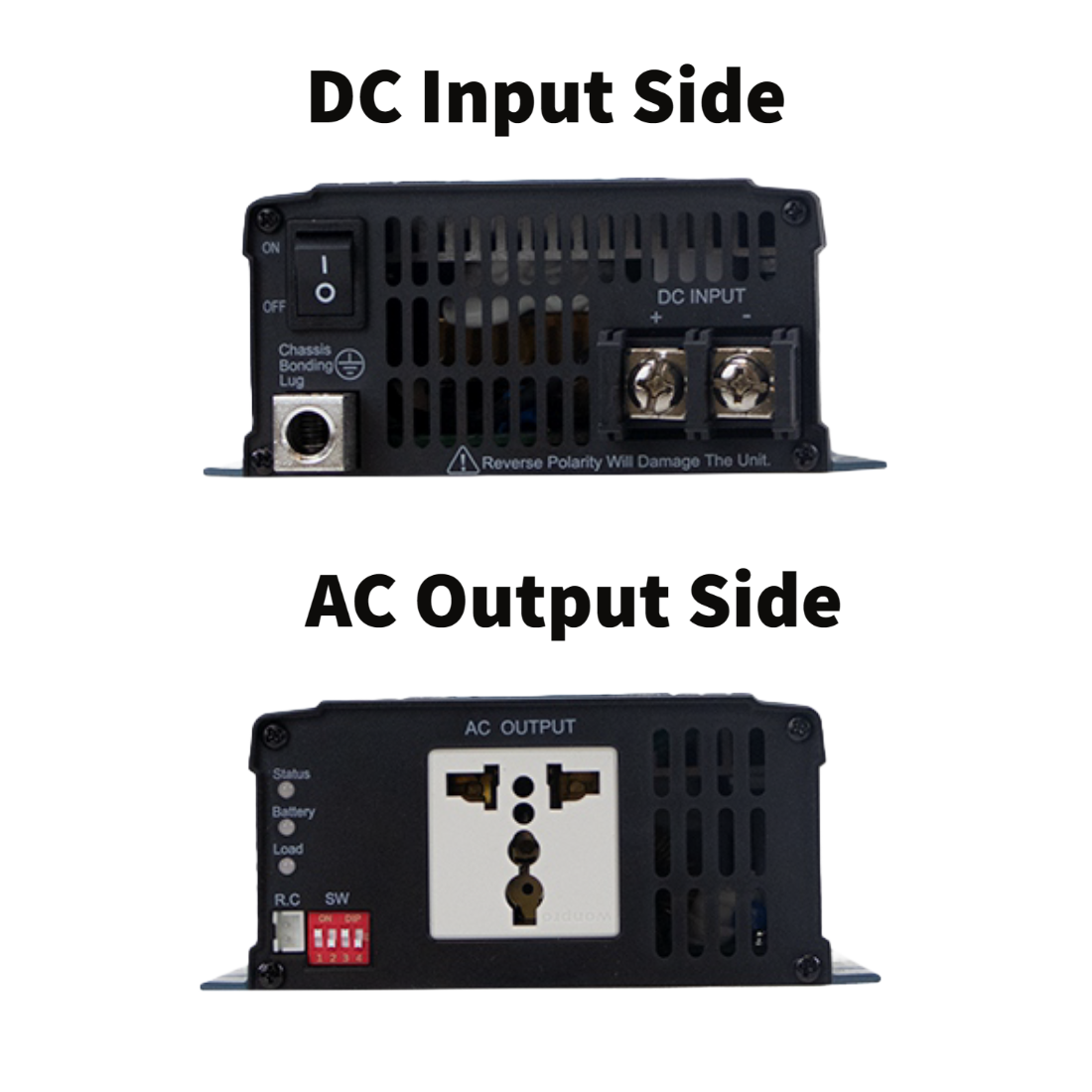

- Connector: power on-off remote control by front panel dry contact connector(by relay), open : normal work ; short : remote off
- Environment
- Working temp: -25 ~ +70℃(refer to “derating curve”)
- Working humidity: 20% ~ 90% rh non-condensing
- Storage temp, humidity: -30 ~ +70℃/ -22 ~ +158of, 10 ~ 95% rh non-condensing
- Vibration:10 ~ 500hz, 3g 10min./1cycle, 60min. Each along x, y, z axes
- Safety & emc
- Safety standards: cb iec62368-1,dekra bs en/en62368-1,ul458, e13,eactptc 004 approved; design refer toas/nzs 62368.1
- Withstand voltage: dc i/p - ac o/p:3.0kvac ac o/p - fg:1.5kVac
- Dimension: 210*130*55mm (l*w*h)
- Packing: 1.3kg | 11.4kg 8pcs
