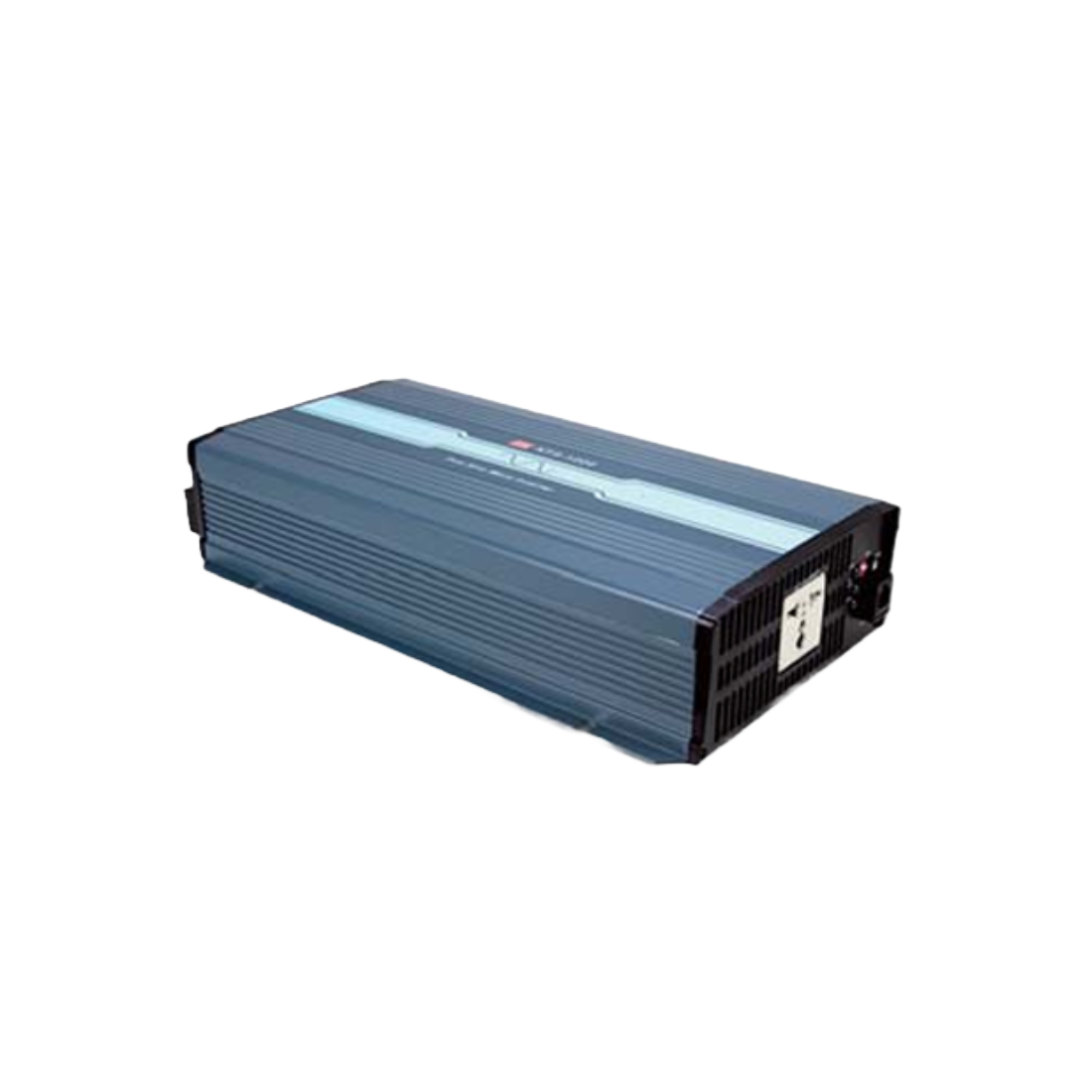

Meanwell NTS-1200-212NUN 1.2kW 12V Inverter
Meanwell NTS-1200-212NUN 1.2kW 12V Inverter

Meanwell NTS-1200-212NUN 1.2kW 12V Inverter

Meanwell NTS-1200-212NUN 1.2kW 12V Inverter

Regular price R 8,962.00 incl. VAT Sale price R 7,468.00 incl. VATSave R 1,494
R 6,49391 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

SPECIFICATION

  • MODEL NO.: NTS-1200-212
  • AC OUTPUT
    • RATED POWER(Continuous: 1200W
    • OVER RATED POWER(3 Min.): 1380W
    • PEAK POWER(10 Sec.)L 1800W
    • SURGE POWER(30 Cycles).AC VOLTAGE: 2000
      • Default setting set at 230VAC: 200 / 220 / 230 / 240Vac selectable by DIP S.W
    • FREQUENCY
      • Default setting set at 500.1Hz: 50/60Hz selectable by DIP S.W
    • WAVEFORM: True sine wave (THD<3%)
    • AC REGULATION: ±3.0% at rated input voltage
  • DC INPUT
    • DC VOLTAGE: 12Vdc
    • VOLTAGE RANGE (Typ.): 10 ~ 16.5Vdc
    • DC CURRENT (Typ.): 120A
    • NO LOAD DISSPATION (Typ.)
      • NON-SAVING MODE: 25W
      • SAVING MODE: Default disable,≦1.2W ~1.5W by models @ auto detect AC output load≦10W will be changed to saving mode. | 1.2W
    • OFF MODE CURRENT DRAW: ≦1mA
    • EFFICIENCY (Typ.) Note.1: 90%
    • BATTERYTYPES: Lead Acid or li-ion
  • PROTECTION
  • DC  INPUT
    • FUSE (INTERNAL): 40A*4
    • LOW
      • ALARM: 11±0.3Vdc
      • SHUTDOWN: 10±0.3Vdc
      • RESTART: 12.5±0.3Vdc
    • HIGH
      • ALARM: 15.5±0.3Vdc
      • SHUTDOWN: 16.5±0.3Vdc
      • RESTART: 15±0.3Vdc
    • BAT. POLARITY: By internal fuse open
  • AC  OUTPUT
    • OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover
    • OUTPUT SHORT: Protection type : Shut down o/p voltage, re-power on to recover
    • OVER LOAD (Typ.): 105 ~ 115% load for 180 sec., 115% ~ 150% load for 10 sec. | Protection type : Shut down o/p voltage, re-power on to recover
    • CIRCUIT BREAKER (ONLYFOR“GFCI”AC SOCKET): 10A
    • GFCI PROCTECTION: None
  • FUNCTION
    • REMOTE CONTROL
      • CONNECTOR: Power ON-OFF remote control by front panel dry contact connector(by RELAY), Open : Normal work ; Short : Remote off
      • ACCESSORY: Remote controller sold separately, Order No.: IRC1,IRC2,IRC3
    • RS-232 COMMUNICATION: RS-232 ~ RJ11 Type connector
  • ENVIRONMENT
    • WORKING TEMP: -25 ~ +70℃(Refer to “Derating curve”)
    • WORKING HUMIDITY: 20% ~ 90% RH non-condensing
    • STORAGE TEMP, HUMIDITY: -30 ~ +70℃/ -22 ~ +158oF, 10 ~ 95% RH non-condensing
    • VIBRATION:10 ~ 500Hz, 3G 10min./1cycle, 60min. each along X, Y, Z axes
  • SAFETY & EMC
    • SAFETY STANDARDS: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EACTPTC 004 approved; Design refer toAS/NZS 62368.1
    • WITHSTAND VOLTAGE: CB IEC62368-1,Dekra BS EN/EN62368-1,UL458, E13,EACTPTC 004 approved; Design refer toAS/NZS 62368.1
  • DIMENSION: 333*184*70mm (L*W*H)
  • PACKING: 3.3Kg - 1 pc | 8Kg - 2 pcs

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
