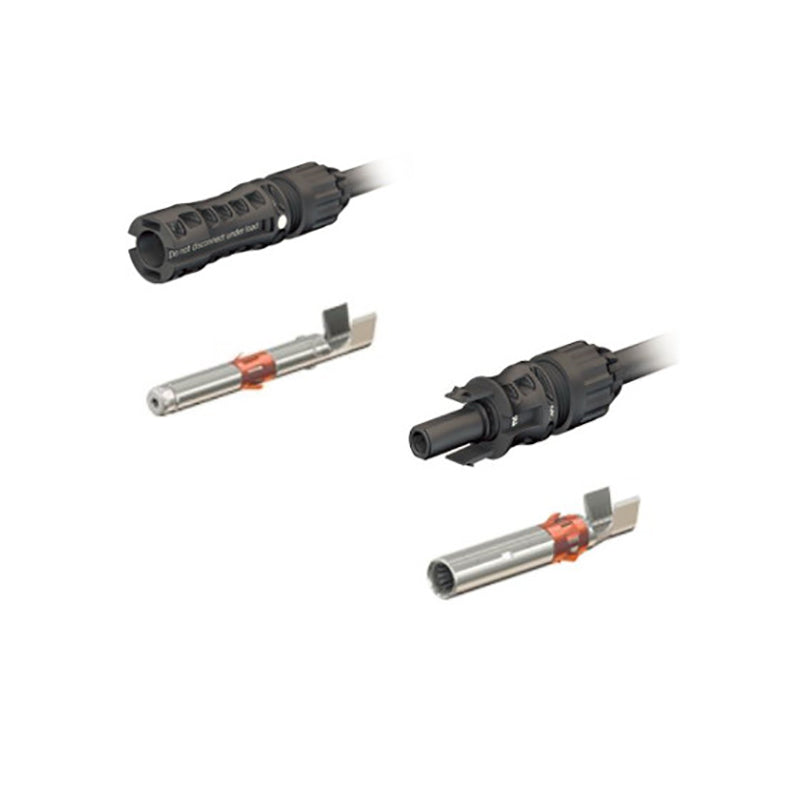

MC4-EVO2 Connector Twin Pack

MC4-EVO2 Connector Twin Pack

MC4-EVO2 Connector Twin Pack

Regular price R 178.00 incl. VAT Sale price R 142.00 incl. VATSave R 36
R 12348 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Features:

  • Connector system: Ø 4 mm.
  • 1 x EVO Male
  • 1 x EVO Female
  • Rated voltage: 1500 VDC.
  • Rated current TÜV (85°C): 45 A (4,0 mm²/12 AWG), 53 A (6,0 mm²/10 AWG).
  • Rated impulse voltage: 16 kV (1500 V).
  • Ambient temperature range: -40°C ... +85°C (TÜV/UL).
  • Upper limiting temperature: 115°C (TÜV).
  • Degree of protection, mated / unmated: IP65/IP68 (1h/1m) / IP2X.
  • Overvoltage category/Pollution degree: CAT III/3.
  • Contact resistance of plug connectors: ≤0.2 mΩ.
  • Safety class: II.
  • Contact system: MULTILAM.
  • Type of termination: Crimping.
  • Contact material: Copper, tin plated.
  • Insulation material: PA.
  • Locking system (UL): Locking type.
  • Flame class: UL94-V0.
  • Ammonia resistance (acc. to TÜV): Q60095359.
  • Salt mist spray test, degree of severity 6: IEC 60068-2-52.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
