Lorentz PS2-100 AHRP-07S Solar Powered Pump
Lorentz PS2-100 AHRP-07S Solar Powered Pump

Lorentz PS2-100 AHRP-07S Solar Powered Pump

Lorentz PS2-100 AHRP-07S Solar Powered Pump

Regular price R 20,921.00 incl. VAT Sale price R 19,478.00 incl. VATSave R 1,443
R 16,93739 excl. VAT
incl. VAT/

Tax included. Shipping calculated at checkout.
  • Secure online payments

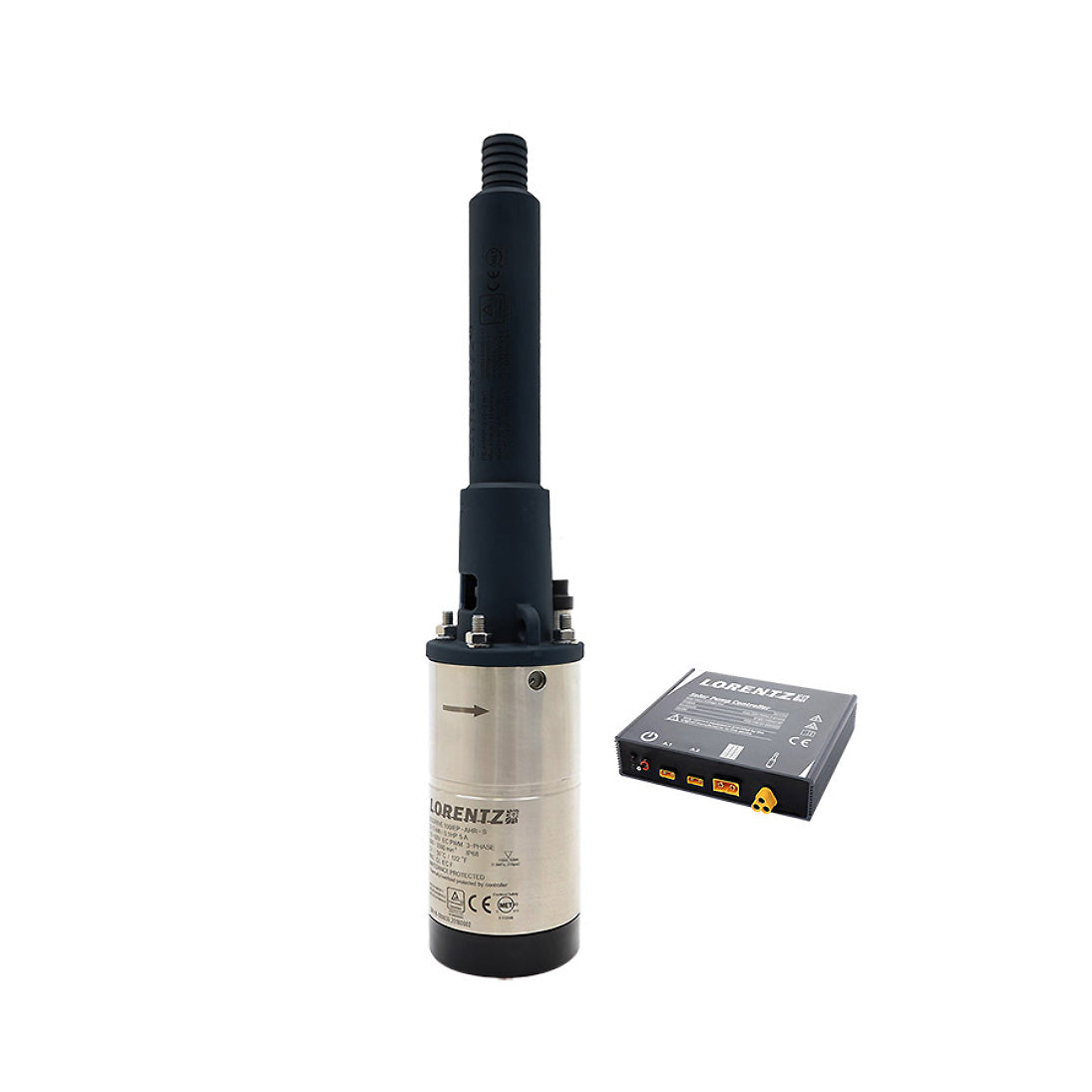

Solar Submersible Pump System kit for 3,5" wells

System Overview
Head max. 40 m
Flow rate max. 1.1 m³/h

Technical Data
Controller PS2-100
  • Controlling and monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Incl. MC4 to XT-60 adaptor cable / 0,5m of 4mm² PV cable
Power max. 0.15 kW
Input voltage max. 50 V
Optimum Vmp** > 34 V
Motor current max. 6.0 A
Efficiency max. 98 %
Ambient temp. -40...50 °C
Enclosure class IP68

  • Incl. 15m of 3x 2, 5 mm² plugged motor cable
  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor
Rated power 0.15 kW
Efficiency max. 83 %
Motor speed 700...2,500 rpm
Insulation class F
Enclosure class IP68
Submersion max. 50 m

Pump End PE AHRP-07S***
  • Premium materials: PPS
  • Helical rotor pump
Efficiency max. 61 %

Pump Unit PU100 AHRP-07S (Motor, Pump End)
Borehole diameter min. 3,5 in
Water temperature max. 50 °C

**Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar irradiance, 25 °C cell temperature
***Specify temperature range on order.

All specifications and information are given with good intent, errors are possible and products may be subject to change without notice.Pictures may differ from actual
products depending on local market requirements and regulations.


All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
