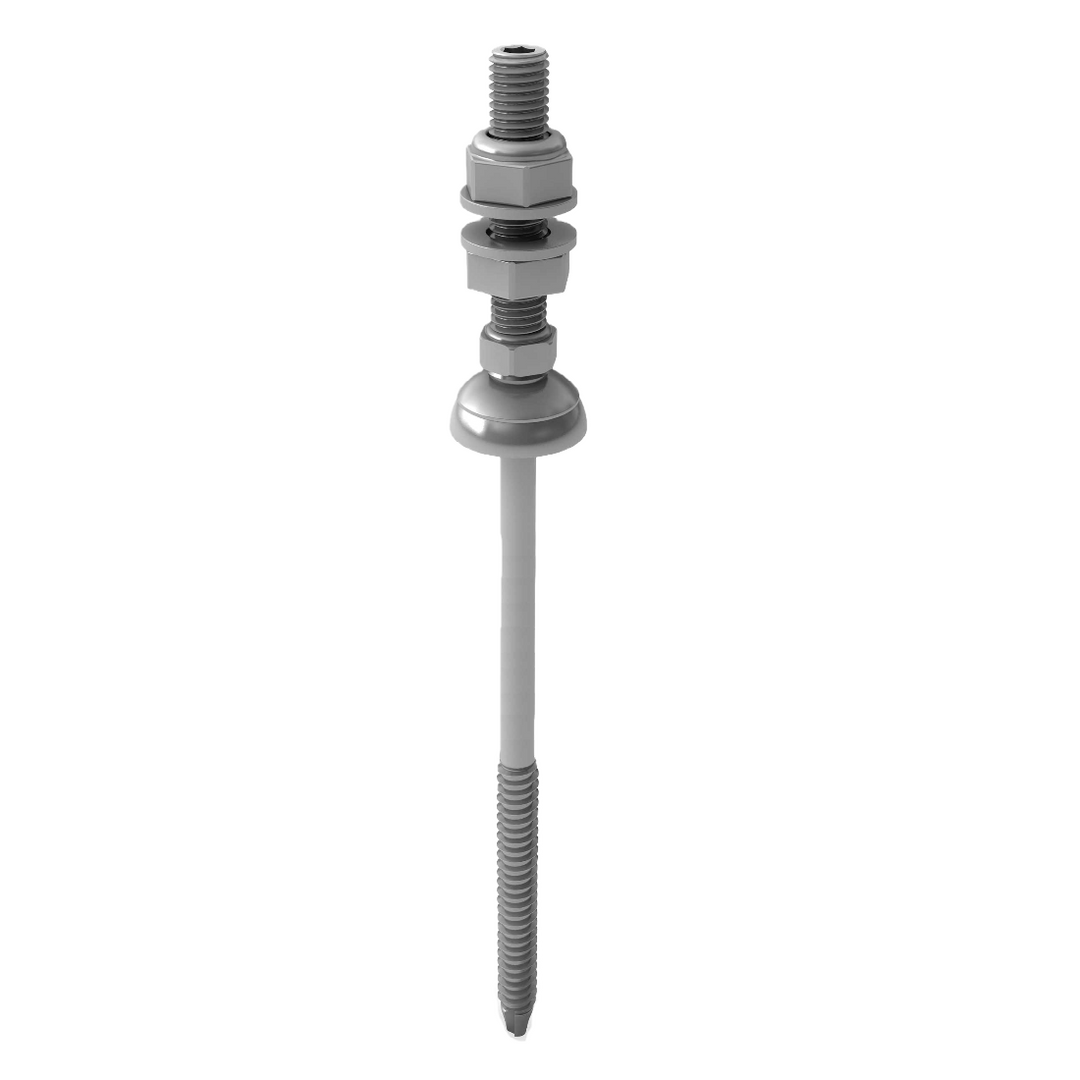

Solar fastener M10x85-50 with fiber cement seal and hardened tip. For fixing the K2 Systems components in the steel substructure, suitable for corrugated fibre cement roofing. General approval (Z-14.4-532). Material: stainless steel A2. Article is procured on the basis of order - return excluded.
Material: stainless steel A2.
Features
- CLAMPING AREA [MM]: 14-55.
- MOUNTING SYSTEMS: K2 Insertion Rail System, K2 Solid Rail System.
- ROOF SUBSTRUCTURE: Steel.
- SCOPE OF APPLICATION: Pitched Roof.
- SCREW LENGTH [MM]: 85.
- SCREW THREAD: M10x50.
- COMPONENT TYPE: Solar fastener.
- MATERIAL: Edelstahl, EPDM.
- PACKAGING TYPE:
- 25 / box.
- 4725 / Pallet.
- WEIGHT: 0.094 Kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
