Product Description

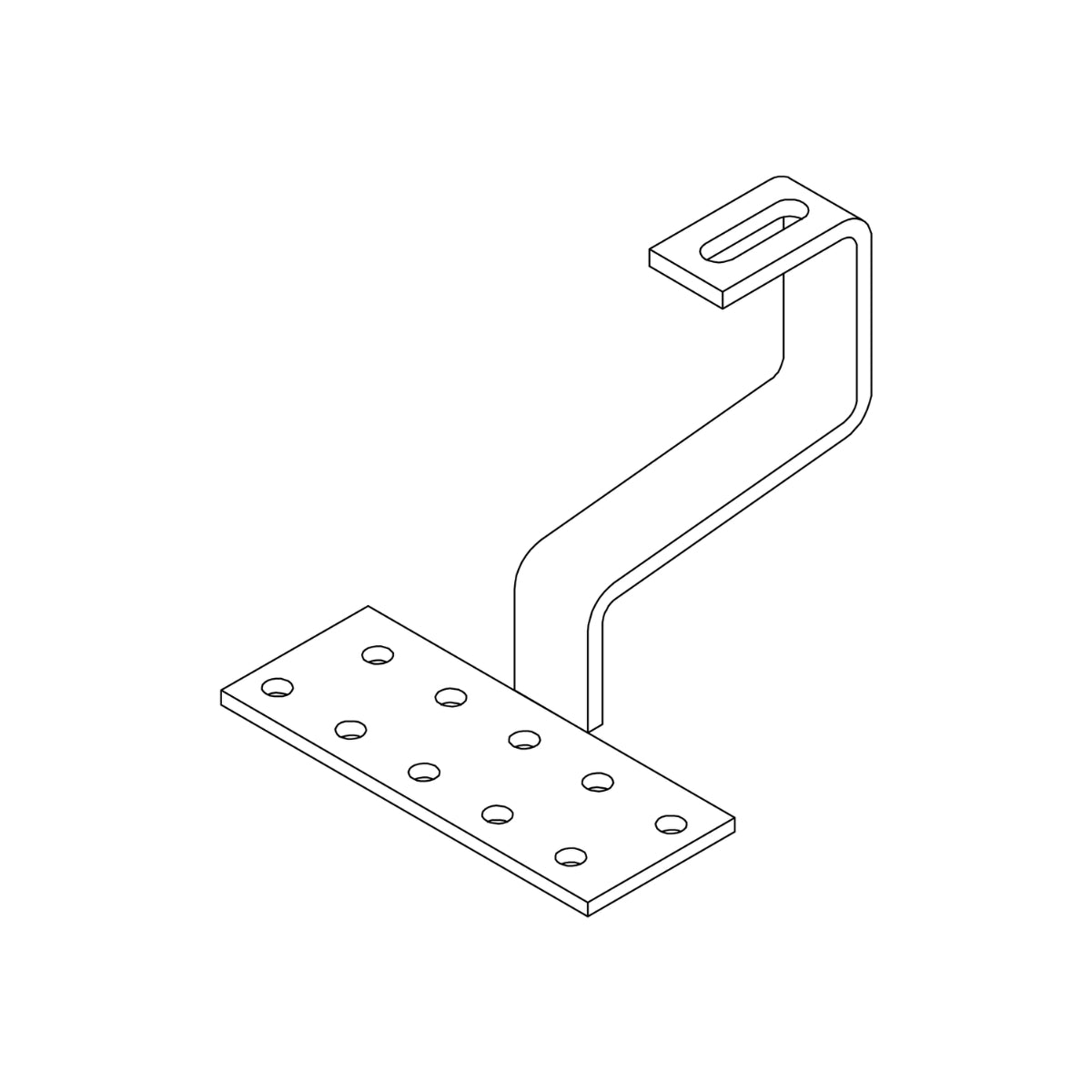

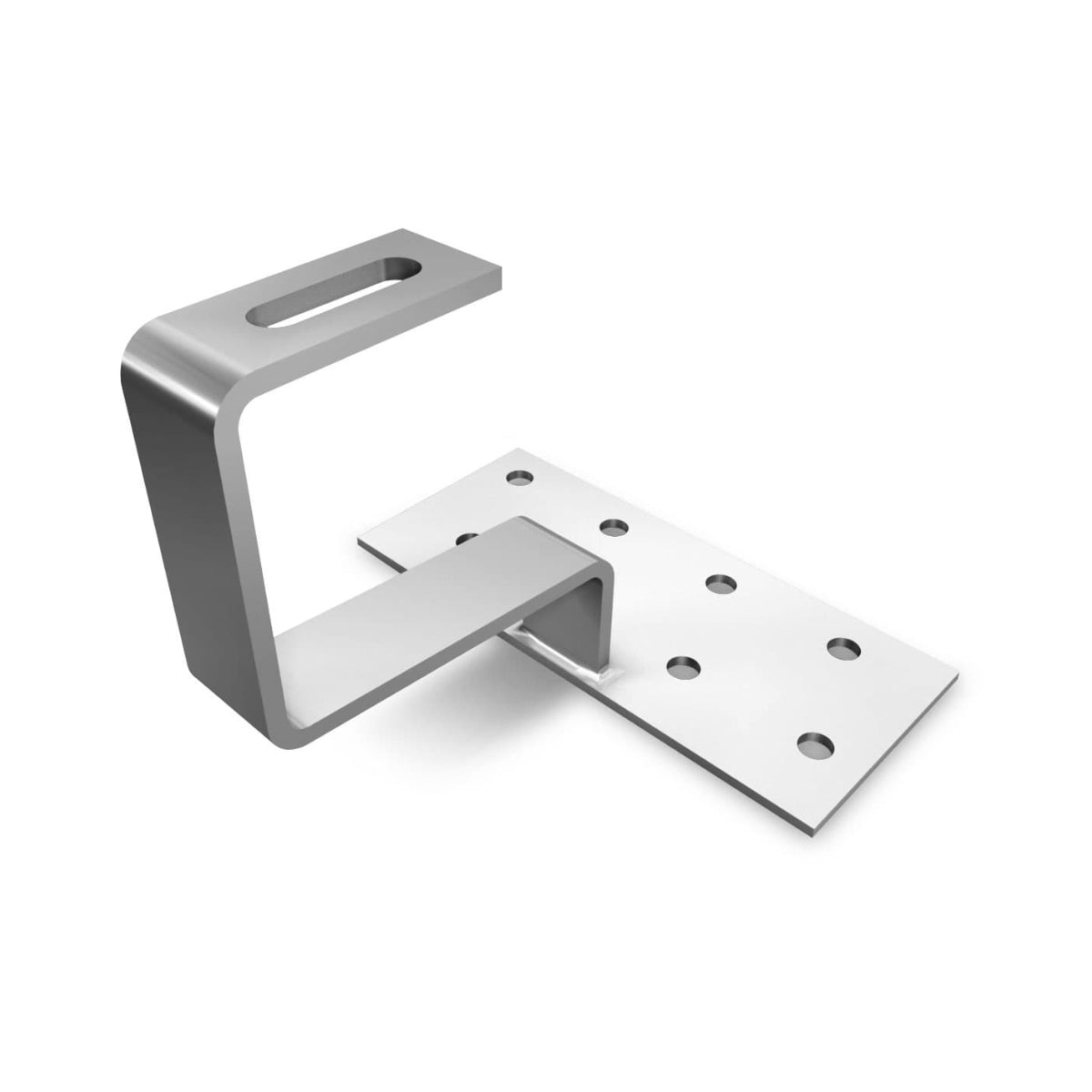

For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Base plate: 150x60x5 mm, bracket: 30x6 mm, height under bracket: 47 mm (for roof lath 30 mm height), overall height: approx. 133 mm. Material: stainless steel (1.4016)
Technical Data
- Adjustable: No
- Includes Hardware for Mounting Rail: No
- Mounting Systems: K2 Insertionrail System, K2 Solidrail System
- Scope of Application: Pitched Roof
- Component Type: Roof Hook
- Material: Stainless Steel 1.4016
- Sales Unit: 25 Piece
- Packaging Type: 25 / Box 600 / Pallet
- Weight: 0.67
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
