Product Description

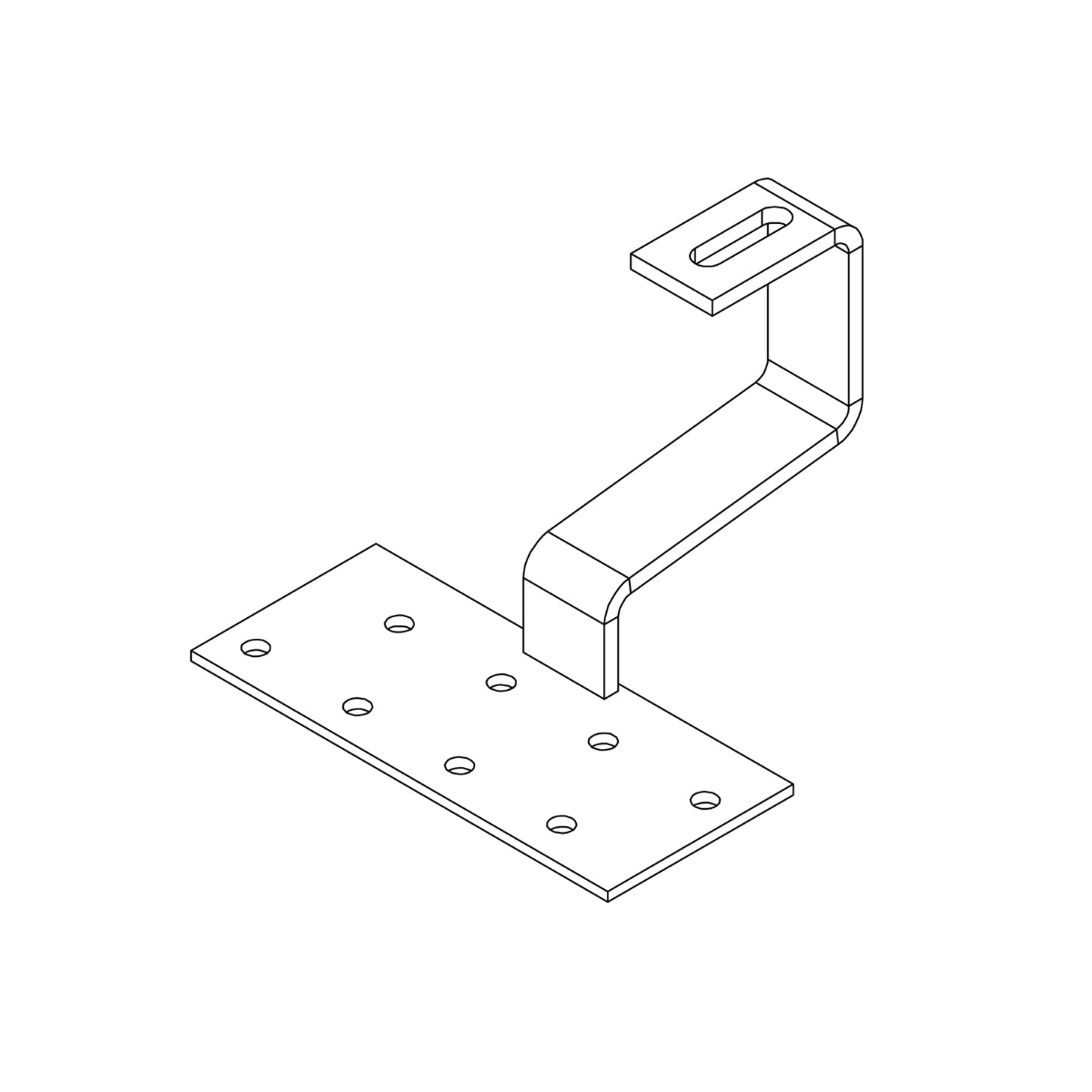

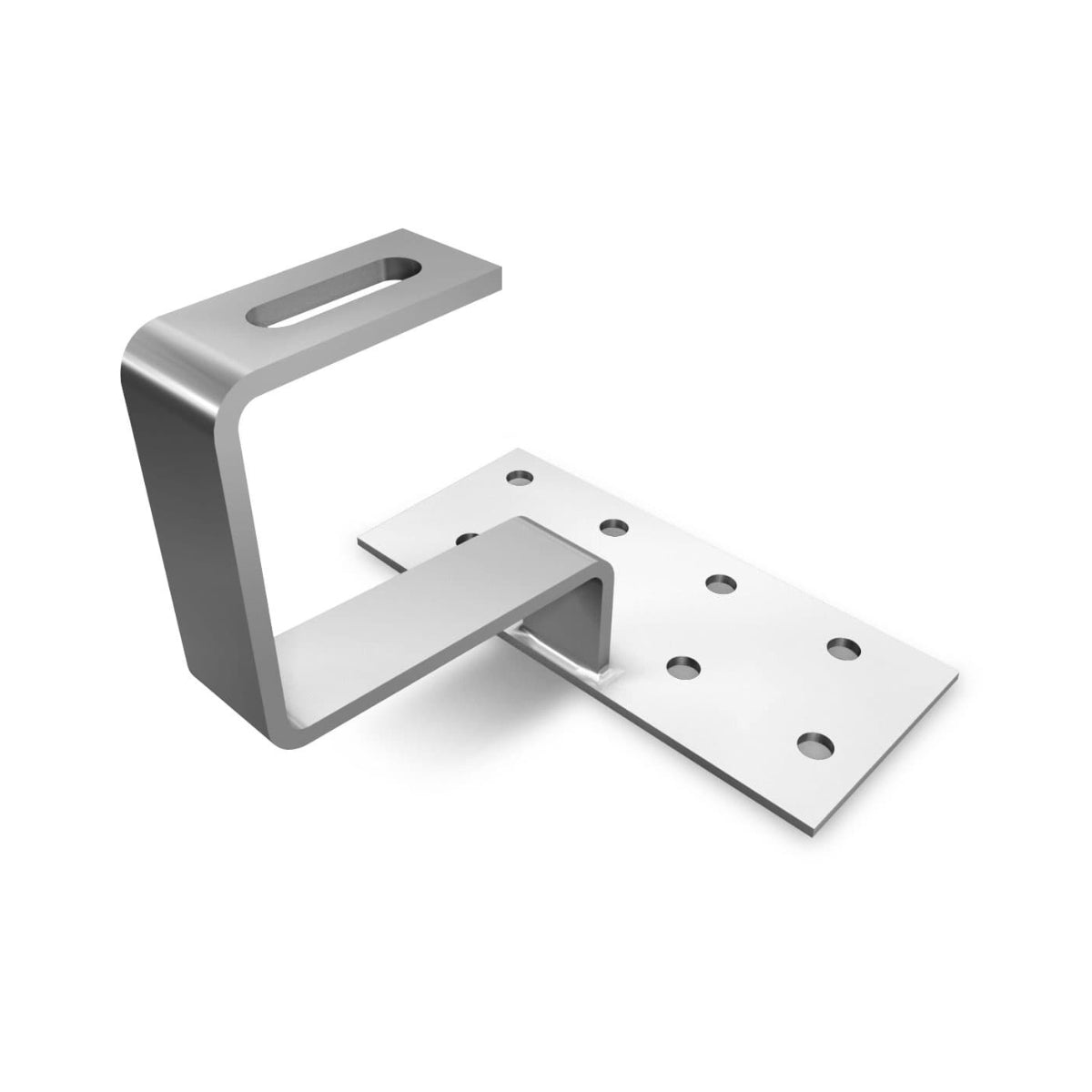

For fastening of K2 system parts on roofs with pantiles. Bracket with long hole for SolidRail mounting with T-bolt screw and hexagon flange nut M10. Base plate: 180x80x4 mm, Height under bracket: 38 mm, Bracket height: 89 mm, Total height: 150 mm, Bracket depth: 91 mm. Material: stainless steel (1.4016)
Technical Data
- Adjustable: No
- Includes Hardware for Mounting Rail: No
- Mounting Systems: K2 Insertionrail System, K2 Solidrail System
- Scope of Application: Pitched Roof
- Component Type: Roof Hook
- Material: Stainless Steel 1.4016
- Sales Unit: 25 Piece
- Packaging Type: 25 / Box 500 / Pallet
- Weight: 0.872
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
