Product Description

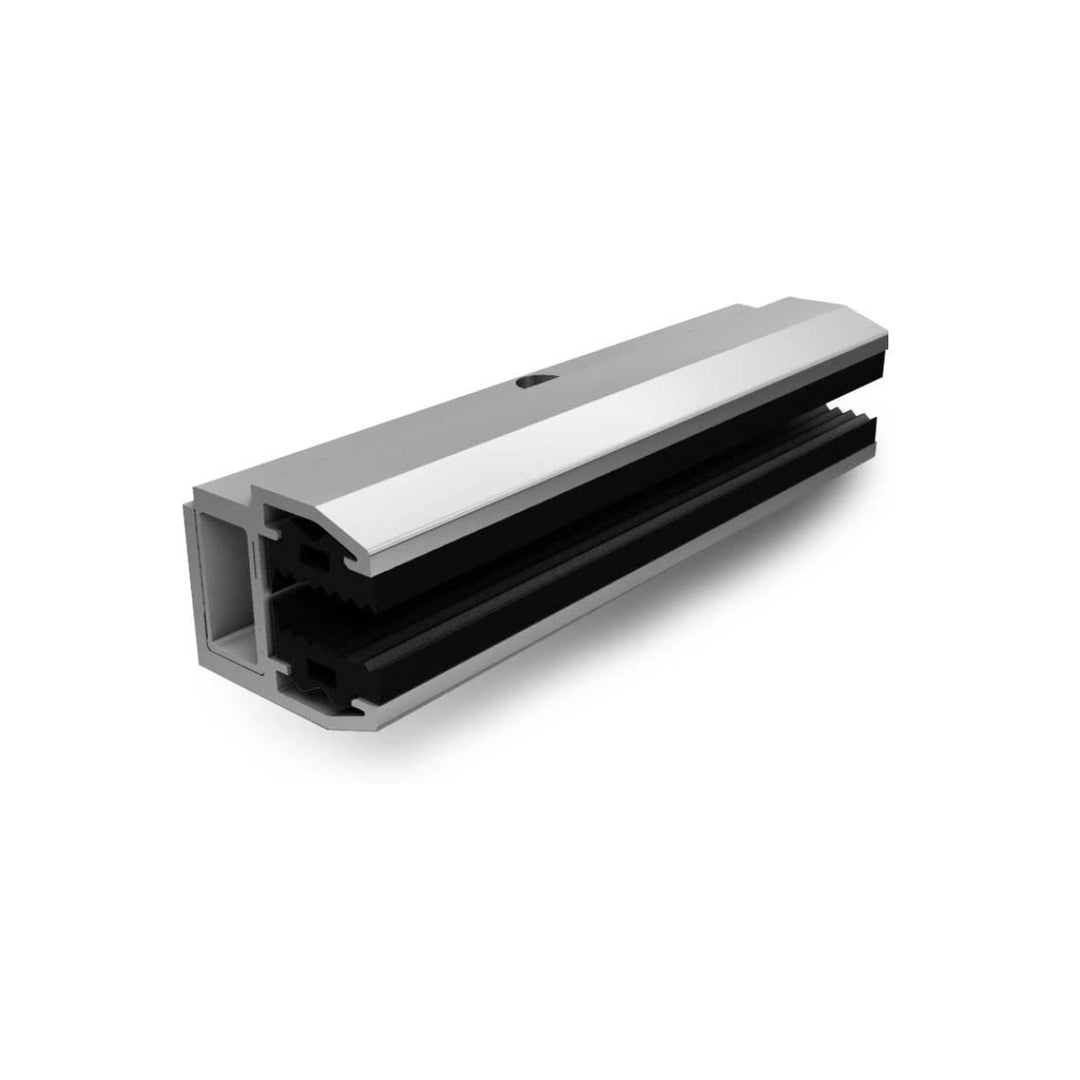

Module end clamp for fastening laminate modules, approved for modules from First Solar, Calyxo, MiaSolé and for modules with a glass thickness of 6.8 - 8.0 mm. Please note, one Allen bolt and MK2 are required per module clamp, these are not included in the article. Material: Aluminium press finished, EPDM
Technical Data
- Module Frame Height [mm]: 8-8
- Mounting Systems: K2 Basicrail System, K2 Multirail System, K2 Singlerail System, K2 Solidrail System
- Scope of Application: Pitched Roof
- Component Type: Module Clamp
- Material: Aluminium en Aw 6060/t5; Epdm
- Sales Unit: 1 Piece
- Packaging Type: 180 / Box 10.800 / Pallet
- Weight: 0.083 Kg
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
