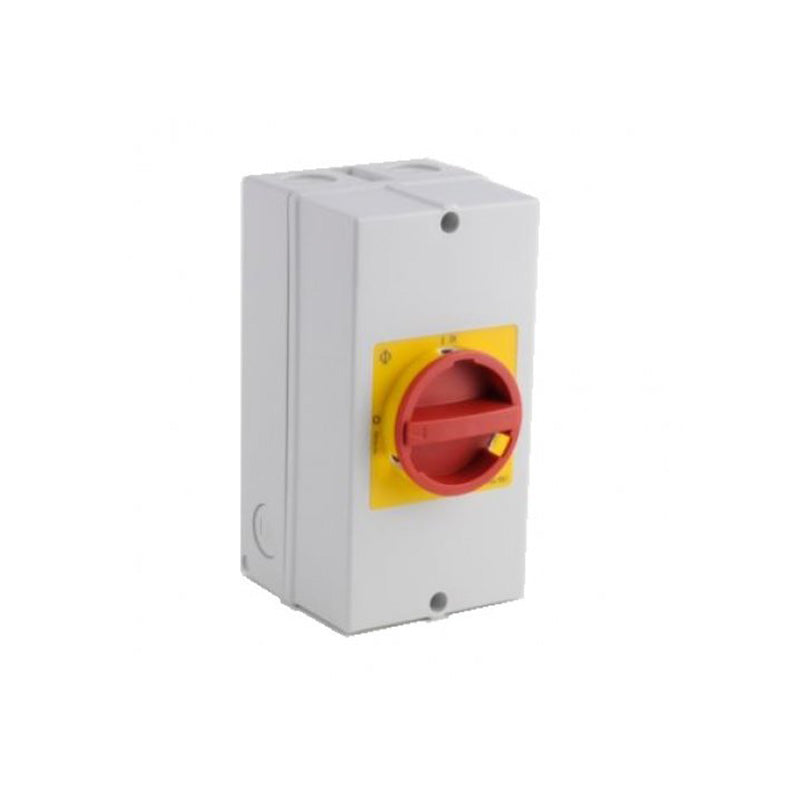

K&N 25A Three Phase AC Switch Disconnector
Features and Specifications
- Suitable for three phase AC connection.
- Plastic enclosures, protection IP66/67, totally insulated, knock-outs.
- Handle red, lockablein in the OFF-position, yellow plate backing.
- Dimensions (w x h x d): 100mm x 190mm X 93mm.
- Switch interlocked with lid to prevent opening in ‘ON’ position.
- Weight: 0.455 kg.
- Rated Power: 5,750 W.
- Poles: 4.
- Max Cable: 10 mm².
DC Ratings
- Max Voltage: 690 V.
- Rated Voltage @ 25 A: 400 V.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
