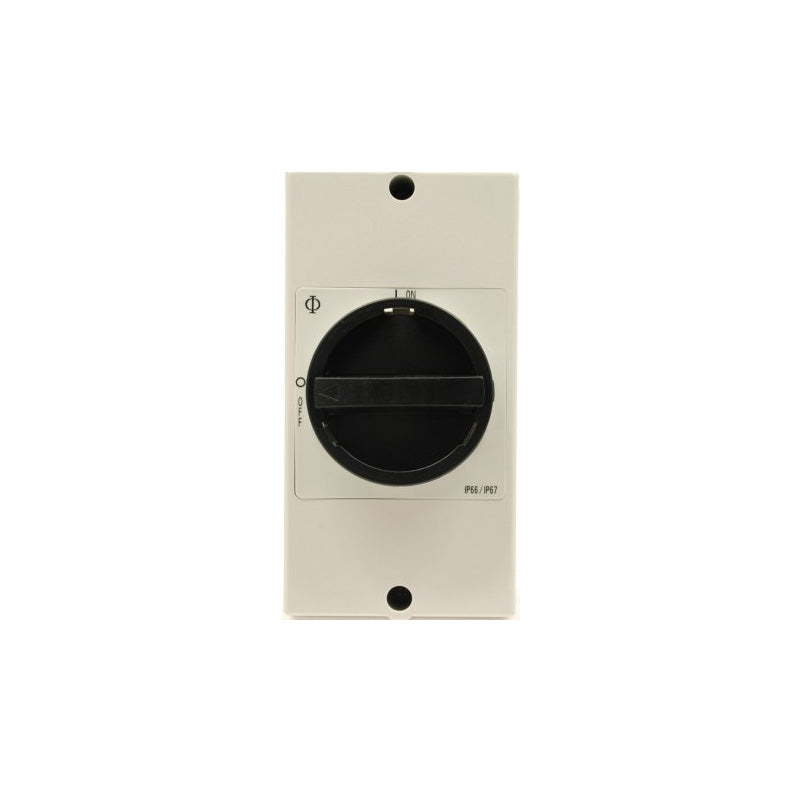

Features and Specifications
- IP66/67 Protection.
- Black/Grey Pad-lockable Handle – lockable in the OFF-position.
- Class II compliant, Grey Insulated Enclosure.
- Switch Interlocked with lid to prevent opening in “ON” position.
- Rated for use in ambient temperatures of 50°C.
- Contact development: 2 pole, 6 contacts per circuit (2 x 3 in series).
- Dimensions (w x h x d): 100mm x 178mm X 93mm.
- Weight: 0.68 kg.
- Rated Power: 9,600 W.
- Poles: 2.
- Max Cable: 6 mm².
- Max Voltage: 1000 V.
- Rated Voltage @ 21 A: 800 V.
- Rated Voltage @ 20 A: 1000 V.
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
