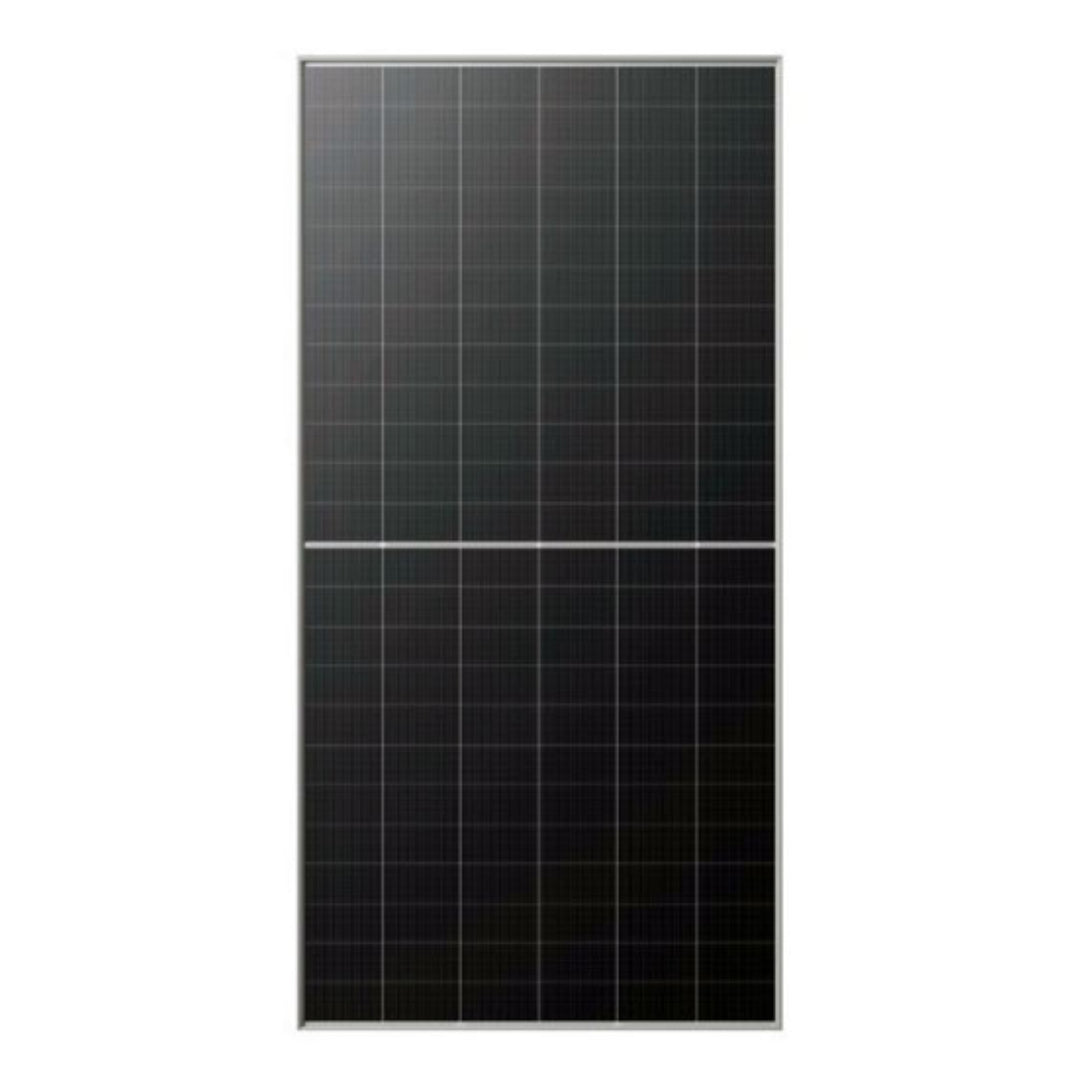

The Jinko Tiger Neo 615W Solar Panel is a high-efficiency N-type monocrystalline bifacial module designed for superior power generation and long-term reliability. Utilizing advanced TOPCon (Tunnel Oxide Passivated Contact) cell technology, this panel delivers higher efficiency, improved low-light performance, and reduced degradation compared to traditional P-type modules.
Its dual-glass bifacial design allows the module to capture sunlight from both the front and rear sides, increasing overall energy yield by using reflected light from surfaces such as roofs, ground, or mounting structures. This makes it an excellent choice for commercial, industrial, and large residential solar installations where maximizing energy output is essential.
Built with durable 2.0 mm tempered glass on both sides, a corrosion-resistant anodized aluminum frame, and an IP68-rated junction box, the panel is designed to withstand harsh environmental conditions and provide reliable performance for decades.
| Parameter | Specification |
|---|---|
| Model | JKM615N-66HL4M-BDV |
| Rated Maximum Power (Pmax) | 615 W |
| Cell Type | N-Type Monocrystalline (TOPCon) |
| Number of Cells | 132 (2 × 66) |
| Module Efficiency | 22.77% |
| Power Tolerance | 0 ~ +3% |
| Maximum Power Voltage (Vmp) | 40.60 V |
| Maximum Power Current (Imp) | 15.15 A |
| Open Circuit Voltage (Voc) | 48.88 V |
| Short Circuit Current (Isc) | 16.02 A |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature Range | -40°C to +70°C |
| Temperature Coefficient (Pmax) | -0.29 %/°C |
| Temperature Coefficient (Voc) | -0.25 %/°C |
| Temperature Coefficient (Isc) | 0.045 %/°C |
| Parameter | Specification |
|---|---|
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm Anti-Reflective Tempered Glass |
| Back Glass | 2.0 mm Heat-Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Connector Type | JK03M / MC4 Compatible |
| Cable Cross Section | 4.0 mm² |
| Cable Length | +400 mm / −200 mm |
| Protection Class | Class II |
| Parameter | Specification |
|---|---|
| Maximum Static Load (Front) | 5400 Pa |
| Maximum Static Load (Rear) | 2400 Pa |
| Fire Rating | Class C |
| Bifaciality Factor | Up to 85% |
| Container Loading | 720 pcs / 40HQ |
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
