Product Description
The Jean Müller KETO-3 Fuse Switch Disconnector is an optimal choice when choosing a DC protection device to be placed between a battery and inverter. It is equipped to accommodate 315A and 400A fuse links.
Specifications
- Size: NH3
- Rated operating voltage: 250 V
- Rated operating current: 630 A
- Switching mode: 2pole switchable
- Overall width: 182mm
- System size: 300mm
- Cable terminal: M10 lugs with cable area from 25-150mm2

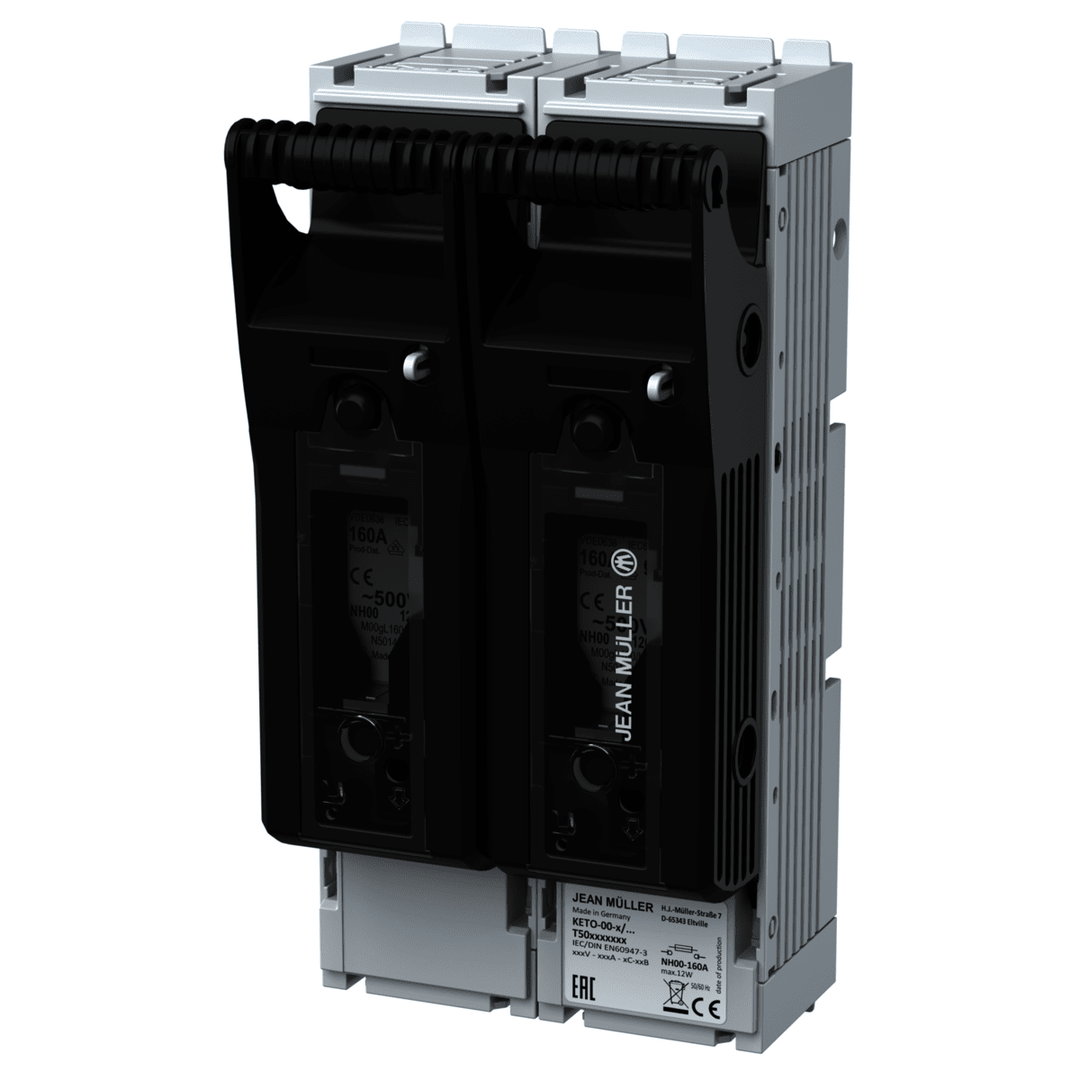

Please note image used is for illustration purposes only.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
