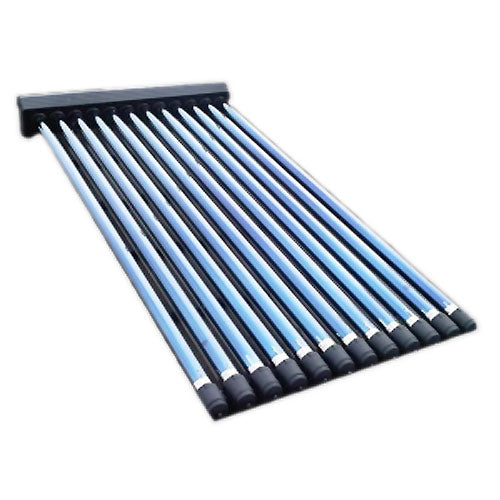

ITS 15 Evacuated Tube Solar Collector
ITS 18 Evacuated Tube Solar Collector

ITS 15 Evacuated Tube Solar Collector

ITS 15 Evacuated Tube Solar Collector

Regular price R 11,039.00 incl. VAT Sale price R 9,198.99 incl. VATSave R 1,840.01
R 7,99912 excl. VAT
incl. VAT/


Tax included. Shipping calculated at checkout.
  • Secure online payments

Key features
• Leading Class efficiency - Through careful design ITS are able to offer leading class efficiency on our collectors. Unlike many of our competitors, we are not only manufacturing a panel that is aesthetically pleasing, but we also utilize the proper materials and material thicknesses on the inside of the collector to ensure a high thermal output even after many decades of operation.
• Sleek low profile design - Designed to be aesthetically pleasing and with minimal visual impact and wind resistance.
• Beautiful finish - ITS uses only high quality finishing materials on our products to ensure the product will even after years of exposure to the outside elements still remain as good looking as the day you bought it.
• Superior corrosion resistance - ITS uses high purity metals and quality finishes in the manufacturing of our collectors to ensure superior corrosion resistance.
• Freeze resistance - ITS collectors are designed to withstand the harshness of European winters and our heat pipe technology has a special environmentally friendly antifreeze solution in ensuring trouble free operation even at temperatures of -40°C.
• Hail resistance - Made from top quality borosilicate glass the tubes of the ITS evacuated tubes collectors can withstand direct hailstone impacts from stones as big as 38mm without any damage.
• Easy installation and maintenance free operation - ITS solar collectors are designed with a mounting frame that is very easy to assemble and have easy clip-closed vacuum tube fastening caps that ensures easy installation. The collector also includes a dedicated temperature sensor pocket for easy integration with a system controller. ITS collectors are designed to be maintenance free.
• 5 year warrantee - ITS evacuated tube technology comes standard with a 5 year warrantee. Due to our glass-to-glass vacuum sealing techniques and high quality material the products have a life expectancy of more than 25 years. ITS solar collectors have survived rigorous testing by both the SABS and Fraunhofer Institut Solare Energie Systeme in Germany.

Technical Specifications
• Number of Tubes - 15.
• Tubes Distance - 75 mm.
• Dimensions - 1250 mm x 2000 mm x 110 mm.
• Aperture Area (m²) - 1.39.
• Absorber Area (m²) - 1.21.
• Total Energy Rating - 4.17 KwHr / m²/ Day.
• Weight (Empty) Kg - 52.
• Pipe Connections - 22.
• Pressure Resistance - 6 Bar.
• Freezing Tolerance - (-) 35 °C.
• Stagnation Temperature - 250 °C.
• Fluid Content - 0.98 l.
• Tile Angle Limited - 15° - 75°.
• Heat Transfer Medium - Water - Glycol Solution.
• Warranty - 5 Years.
• Life Expectancy - 25 Years.

Important:

All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
