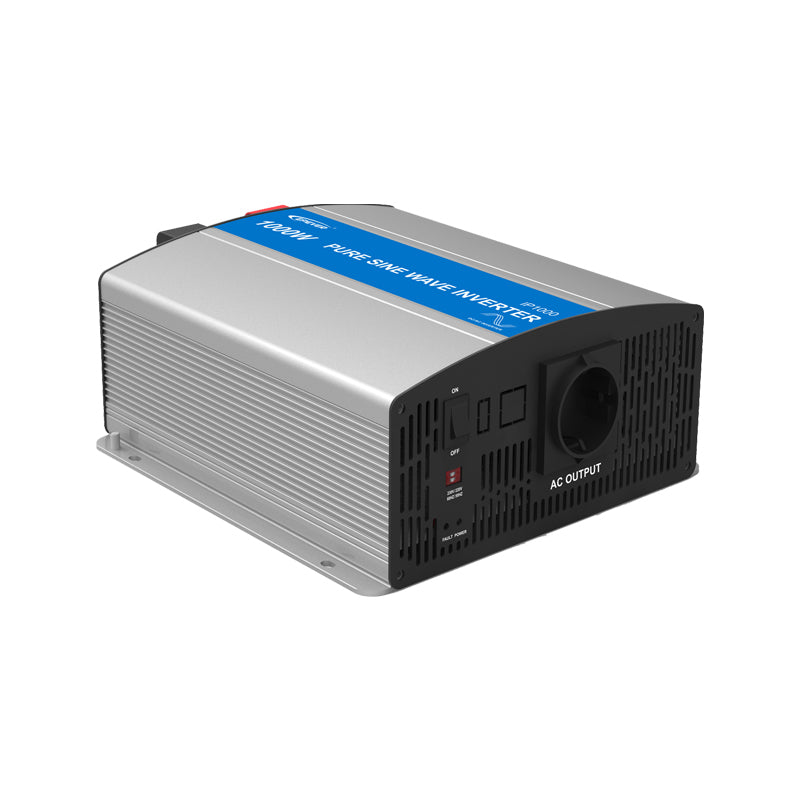

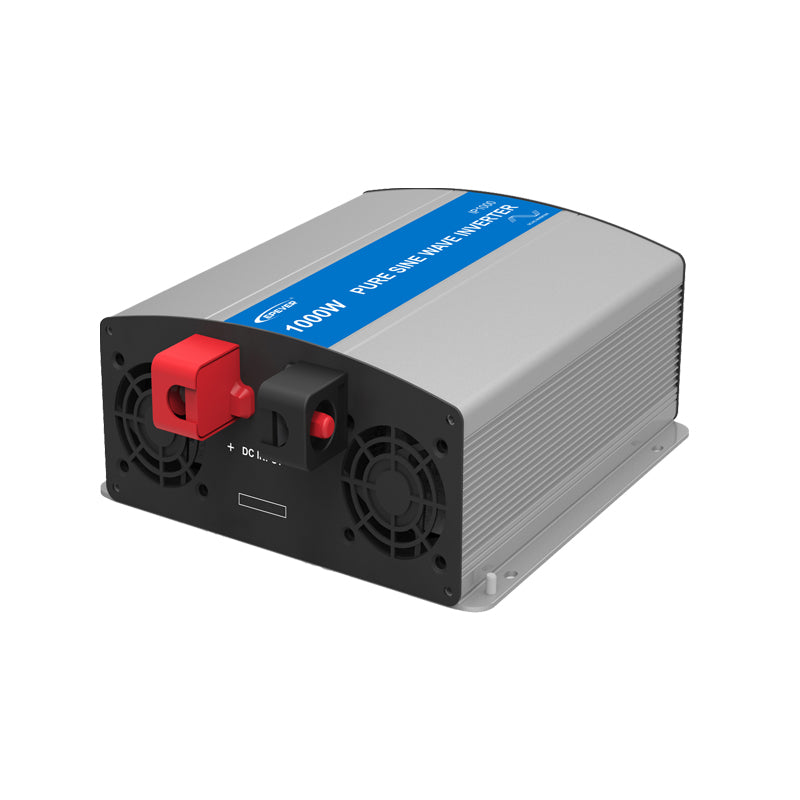

IPower 1000W 24V Inverter
Features
- Safe design with input and output electrical isolation.
- Adoption of advanced SPWM technology, pure sine wave output.
- Optional output voltage 220/230VAC, choosing by DIP switch.
- LED indicators for fault status and working status.
- Lower No-load consumption.
- Max. efficiency up to 95%.
- Input protection: Over voltage protection, low voltage protection.
- Output protection: Overload protection, short circuit protection.
- Over temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off automatically when overheating.
Technical Specification
- Model: IP1000-22.
- Rated Input Voltage: 24VDC.
- Input Voltage Range: 21.6 to 32VDC.
- Input surge voltage: ＜40VDC.
- Output Voltage: 220VAC (± 5%), 230VAC (-10% ~ + 5%).
- Output Frequency: 50/60±0.1Hz
- Output Continuous Power: 800W.
- Power Factor: 0.2-1(VA lower than output continuous power).
- Output Wave: Pure sine wave.
- Overall dimension: 284.7mm × 231.5mm × 98.5mm.
- Net weight: 3.9 kg.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
