Please note that this product is available on a 2-3 week lead time.
Product Description:

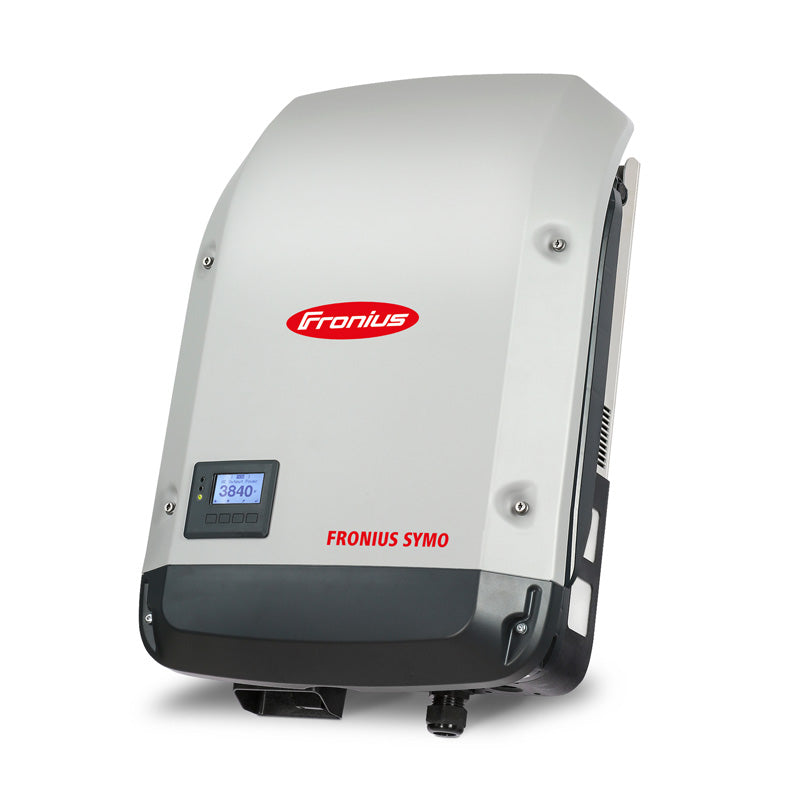

Owing to the SuperFlex Design, the Fronius Symo is the perfect answer to irregularly shaped or multi-oriented roofs. The standard interface to the internet via WLAN or Ethernet and the ease of integration of third-party components make the Fronius Symo one of the most communicative inverters on the market. Furthermore, the meter interface permits dynamic feed-in management and a clear visualisation of the consumption overview.
Features
- Dynamic Peak Manager.
- SnapINverter technology.
- SuperFlex Design.
- Integrated data communication.
- PC board replacement process.
- Smart Grid Ready
-
SA: NRS 097 certified and COCT Certified
Technical Specifications. Input Data
- Max. input current (Idc max) - 27.0 A / 16.5 A.
- Max. array short circuit current - 40.5 A / 24.8 A.
- Min. input voltage (Udc min) - 200 V.
- Feed-in start voltage (Udc start) - 200 V.
- Nominal input voltage (Udc,r) - 600 V.
- Max. input voltage (Udc max) - 1000 V.
- MPP voltage range (Umpp min – Umpp max) - 270 V - 800 V.
- Number of MPP trackers - 2.
- Number of DC connections - 3 + 3.
Output Data
- AC nominal output (Pac,r) - 10000 W / 10.0 kW.
- Max. output power - 10000 VA.
- Max. output current (Iac max) - 16.0 A.
- Grid connection (voltage range) - 3-NPE 400 V / 230 V or 3~NPE 380 V / 220 V (+20 % / -30 %)
- Frequency (frequency range) - 50 Hz / 60 Hz (45 - 65 Hz).
- Total harmonic distortion - < 2 %.
- Power factor (cos φac,r) - 0 - 1 ind. / cap.
General Data
- Dimensions (height x width x depth) - 725 x 510 x 224 mm.
- Weight - 34.8 kg.
- Degree of protection - IP 66.
- Protection class - 1.
- Overvoltage category (DC / AC) - 2 / 3.
- Night-time consumption - < 1 W.
- Inverter concept - Transformerless.
- Cooling - Regulated air cooling.
- Installation - Indoor and outdoor installation.
- Ambient temperature range - -25 - >60 °C.
- Permitted humidity - 0 to 100 %.
- Max. altitude - 2,000 m / 3,400 m (unrestricted / restricted voltage range).
- DC connection technology - 4x DC+ and 4x DC- Screw terminals 2.5 - 16 mm².
- AC connection technology - 4x DC+ and 4x DC- Screw terminals 2.5 - 16 mm².
- Mains connection technology - 5 pole AC screw terminals 2.5 - 16 mm².
- Certificates and compliance with standards - ÖVE / ÖNORM E 8001-4-712, DIN V VDE 0126-1-1/A1, VDE AR N 4105, IEC 62109-1/-2, IEC 62116, IEC 61727, AS 3100, AS 4777-2, AS 4777-3, CER 06-190, G83/2, UNE 206007-1, SI 4777, CEI 0-21.
Effiecency
- Max. efficiency - 98.0 %.
- European efficiency (ηEU) - 97.4 %.
- MPP adaptation efficiency - > 99.9 %.
Protective Devices
- DC insulation measurement - Yes.
- Overload behaviour - Operating point shift. Power limitation.
- DC disconnector - Yes.
Interfaces
- WLAN / Ethernet LAN - Fronius Solar.web, Modbus TCP SunSpec, Fronius Solar API (JSON).
- 6 inputs and 4 digital in/out - Interface to ripple control receiver.
- USB (A socket) - Datalogging, inverter update via USB flash drive.
- 2x RS422 (RJ45 socket) - Fronius Solar Net.
- Signalling output - Energy management (potential-free relay output).
- Datalogger and Webserver - Included.
- External input - S0-Meter Interface / Input for overvoltage protection.
- RS485 - Modbus RTU SunSpec or meter connection.
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
