Product Overview

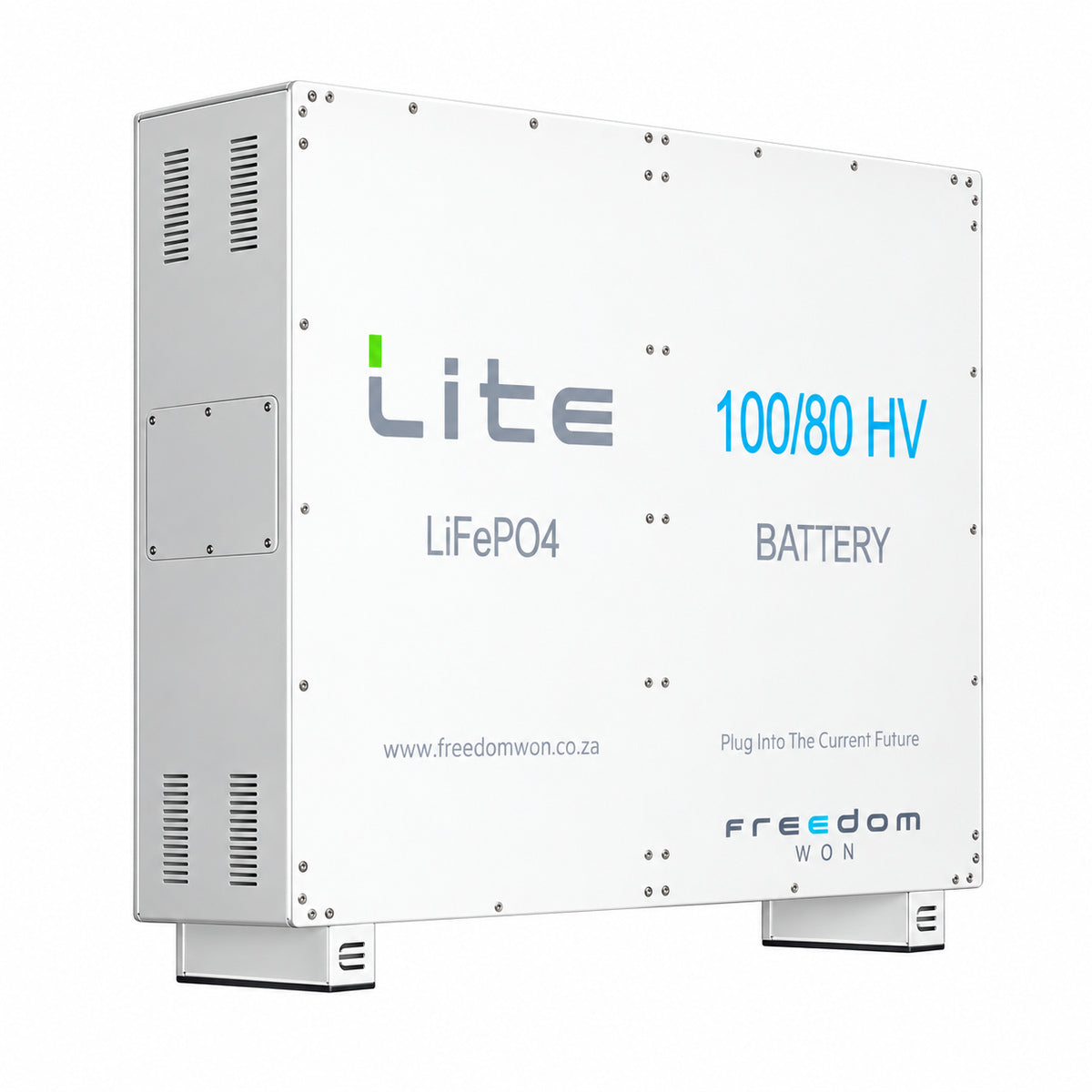

The Freedom Won LiTE 2 Commercial 100/80 HV is a 100 kWh high-voltage lithium iron phosphate (LiFePO4) battery for commercial energy-storage installations. It provides 80 kWh of energy at 80% depth of discharge (DoD), with a nominal voltage of 512 V and 96-97% round-trip efficiency. The HV model is suitable for Freedom Won Encore HPS50, HPS100 and HPS150 hybrid battery inverters.
Designed for indoor use, the battery combines an on-board battery management system (BMS), internal trip protection and a shunt-trip circuit breaker for monitored commercial battery storage applications.
Key Features
- 100 kWh total energy capacity, providing 80 kWh at 80% DoD or 90 kWh at 90% DoD.
- 512 V nominal battery voltage with a 456-568 V operating range.
- 200 A maximum and continuous charge current, with up to 102 kW charge power.
- 300 A maximum / 250 A continuous discharge current, with 154 kW maximum / 128 kW continuous discharge power.
- On-board BMS and internal trip protection, with protection for overcurrent, cell under- and over-voltage, temperature, weak-cell detection and other critical events.
- RJ45 Ethernet connection for eConnect diagnostics, troubleshooting and remote monitoring, plus RJ45 CAN for BMS-to-inverter communication.
- 3 mm powder-coated aluminium, tamper-proof enclosure for indoor installations.
- Natural-convection cooling and a front-panel state-of-charge display, error indication, error-reset button and main breaker.
Applications
- Commercial solar-plus-storage systems using compatible Freedom Won Encore HPS hybrid battery inverters.
- Daily energy shifting and battery-backed supply for commercial facilities.
- High-voltage battery storage installations where high charge and discharge power is required.
Why Choose This Product?
The LiTE 2 Commercial 100/80 HV offers substantial usable energy with a high-voltage architecture and integrated battery controls. Its documented interface, protection and cable configuration support considered commercial system design when paired with the specified compatible inverter range.
Important Notes
- For indoor use only. Allow for the 800 kg battery mass and plan handling, positioning and installation accordingly.
- The HV model is suitable for Freedom Won Encore HPS50, HPS100 and HPS150 hybrid battery inverters. Confirm the complete system design, settings and installation requirements before ordering.
- Maximum discharge current is rated for five minutes in every ten-minute period. A 1.5 x maximum-current overload can be handled for five seconds. Current ratings apply at a battery temperature of 10°C to 25°C; derating applies outside this range.
- Charging below 0°C is not permitted. Extended periods above 30°C are not recommended for optimum battery life.
- Standard DC power cables are 4.0 m long and exit on the right-hand side near the floor. Up to 8 m cables are available at extra cost when specified with the order. A cable trench or cable tray is recommended for routing cables to floor-standing inverters.
- Remote monitoring requires an internet connection. Installation and commissioning should be completed by a qualified professional.
- The standard warranty is 10 years (or 6,000 cycles) at 80% DoD, 0.5C maximum discharge, 0.25C maximum charge and a maximum temperature of 25°C. Refer to the Freedom Won warranty document for full terms.
Technical Specifications
| Specification |
Detail |
| Brand |
Freedom Won |
| Model |
LiTE 2 Commercial 100/80 HV |
| Product Type |
High-voltage lithium iron phosphate commercial battery |
| Battery Chemistry |
Lithium iron phosphate (LiFePO4) |
| Total Energy Capacity |
100 kWh |
| Energy at 80% DoD |
80 kWh |
| Energy at 90% DoD |
90 kWh |
| Current Capacity |
200 Ah |
| Nominal Voltage |
512 V |
| Operating Voltage Range |
456-568 V |
| Maximum / Continuous Charge Current |
200 A |
| Maximum / Continuous Charge Power |
102 kW |
| Maximum / Continuous Discharge Current |
300 A / 250 A |
| Maximum / Continuous Discharge Power |
154 kW / 128 kW |
| Maximum Recommended Inverter Total Rated Power (Continuous) |
120 kVA |
| Short Circuit Current |
5 kA |
| Round-Trip Efficiency |
96-97% |
| Battery Dimensions (H x W x D) |
1,405 x 1,636 x 365 mm (excluding protrusions) |
| Crated Dimensions (H x W x D) |
1,600 x 1,790 x 575 mm |
| Battery Weight |
800 kg |
| Crated Weight |
914 kg |
| DC Connection Power Cables |
1 x 95 sq.mm Helukabel NSGAF detachable power connector per electrode; 4.0 m standard cable length |
| Cooling |
Natural convection |
| Enclosure |
3 mm thick powder-coated aluminium, tamper-proof, indoor use |
| Control Interface |
RJ45 Ethernet for eConnect diagnostics and troubleshooting; RJ45 CAN for BMS and inverter communication |
| Remote Monitoring |
Real-time data logging and remote monitoring over Ethernet; internet connection required |
| Suitable Ambient Temperature |
10°C to 25°C |
| Extreme Operating Temperature |
-20°C to +55°C |
| Warranty |
10 years (or 6,000 cycles) at 80% DoD, 0.5C maximum discharge, 0.25C maximum charge and maximum 25°C |
| Expected Service Life |
More than 16 years (more than 6,000 cycles) at 80% DoD per cycle |
| Battery Standards |
Designed and built according to IEC 62619, IEC 62040, IEC 61000 and UN38.3 |
