Product Overview

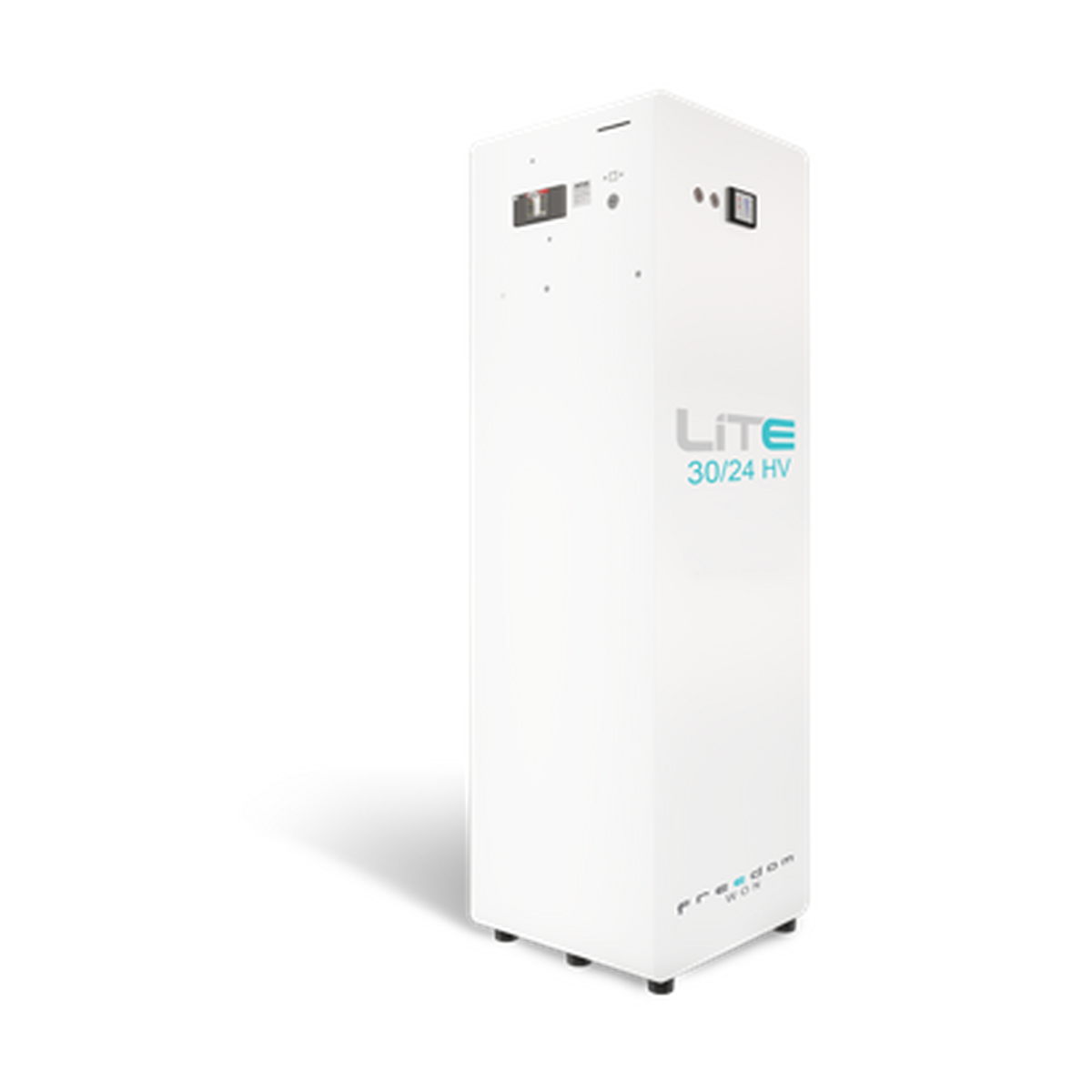

The Freedom Won LiTE Home 30/24 HV is a high-voltage energy-storage battery designed for use with suitable high DC voltage inverters. It offers 30 kWh total energy capacity, with 24 kWh available at 80% depth of discharge and 27 kWh at 90% depth of discharge. Its high-voltage configuration, integrated protection and compact indoor enclosure make it suitable for professionally designed energy-storage installations where substantial battery capacity is required.
Key Features
- 30 kWh total energy capacity for high-capacity energy-storage requirements.
- 24 kWh usable energy at 80% depth of discharge and 27 kWh at 90% depth of discharge.
- 307 V nominal battery voltage for suitable high DC voltage inverter systems.
- 150 A maximum and 100 A continuous discharge current capability.
- 46 kW maximum and 30 kW continuous discharge power, subject to the stated operating conditions.
- White-painted aluminium enclosure with an IP20 rating for indoor or fully protected under-cover environments.
- Integrated shunt-trip circuit breaker and battery protection functions for critical fault conditions.
- State-of-charge display, error light, error reset button and USB programming connection.
Applications
- High-voltage inverter-based energy-storage systems.
- Residential and small commercial installations requiring substantial battery capacity.
- Indoor battery rooms and fully protected under-cover installations.
- Energy-storage systems where high-voltage inverter pairing has been confirmed by Freedom Won.
Why Choose This Product?
The LiTE Home 30/24 HV combines 30 kWh total storage capacity with high-voltage operation, integrated protection and a clear local battery status display. Its compact enclosure and 30 kW continuous discharge capability make it a practical option for correctly specified high-voltage storage systems.
Important Notes
- This battery is suitable for various high DC voltage inverters, but inverter pairing and communication compatibility must be confirmed with Freedom Won before purchase or installation.
- Recommended average daily discharge is up to 80% depth of discharge for extended life. A 50% average depth of discharge is recommended for ultra-long life; the maximum allowable depth of discharge is 90%.
- Maximum discharge current is limited to 5 minutes in every 10-minute period. A 1.5-times maximum overload can be handled for 5 seconds.
- Current limits are rated at a battery temperature of 10°C to 25°C. Derating applies outside this temperature range.
- The enclosure is IP20-rated and intended for indoor or fully protected under-cover environments only.
- Installation, high-voltage DC wiring, inverter communication setup and protection settings should be completed by a qualified installer.
- The stated warranty applies to LiTE units sold after 1 September 2019. Confirm current warranty terms and conditions before purchase.
Technical Specifications
| Specification |
Detail |
| Brand |
Freedom Won |
| Product Range |
LiTE Home HV |
| Model |
LiTE Home 30/24 HV |
| Product Type |
High-voltage energy-storage battery |
| Total Energy Capacity |
30 kWh |
| Energy at 80% DoD |
24 kWh |
| Energy at 90% DoD |
27 kWh |
| Nominal Voltage |
307 V |
| Operating Voltage Range |
273 V minimum to 341 V maximum |
| Maximum Discharge Current |
150 A |
| Continuous Discharge Current |
100 A |
| Maximum Discharge Power |
46 kW |
| Continuous Discharge Power |
30 kW |
| Maximum and Continuous Charge Current |
100 A |
| Short Circuit Current |
5 kA |
| Battery Dimensions (H x W x D) |
1,260 x 490 x 290 mm |
| Battery Weight |
254 kg |
| DC Connection |
1 x 25 sq.mm Permopower fly lead per electrode |
| Fly Lead Length |
1.8 m |
| Enclosure |
White-painted aluminium; IP20; for indoor or fully protected under-cover environments |
| Protection |
Shunt-trip circuit breaker with manual reset; protection for overcurrent, cell under-voltage, cell over-voltage, temperature, weak-cell detection and minimum state-of-charge control |
| Control Interface |
CAN bus for diagnostics and troubleshooting; RJ45 for BMS and inverter communication |
| Human Interface |
0-100% state-of-charge display, error light, error reset button and USB programming connection |
| Standard Warranty |
10 years or 6,000 cycles at 80% DoD, 0.5C maximum discharge, 0.25C maximum charge and maximum 25°C |
| Expected Service Life |
13-15 years and more than 6,000 cycles at 70% DoD; 15-20 years and more than 7,000 cycles at 50% DoD |
