Product Overview

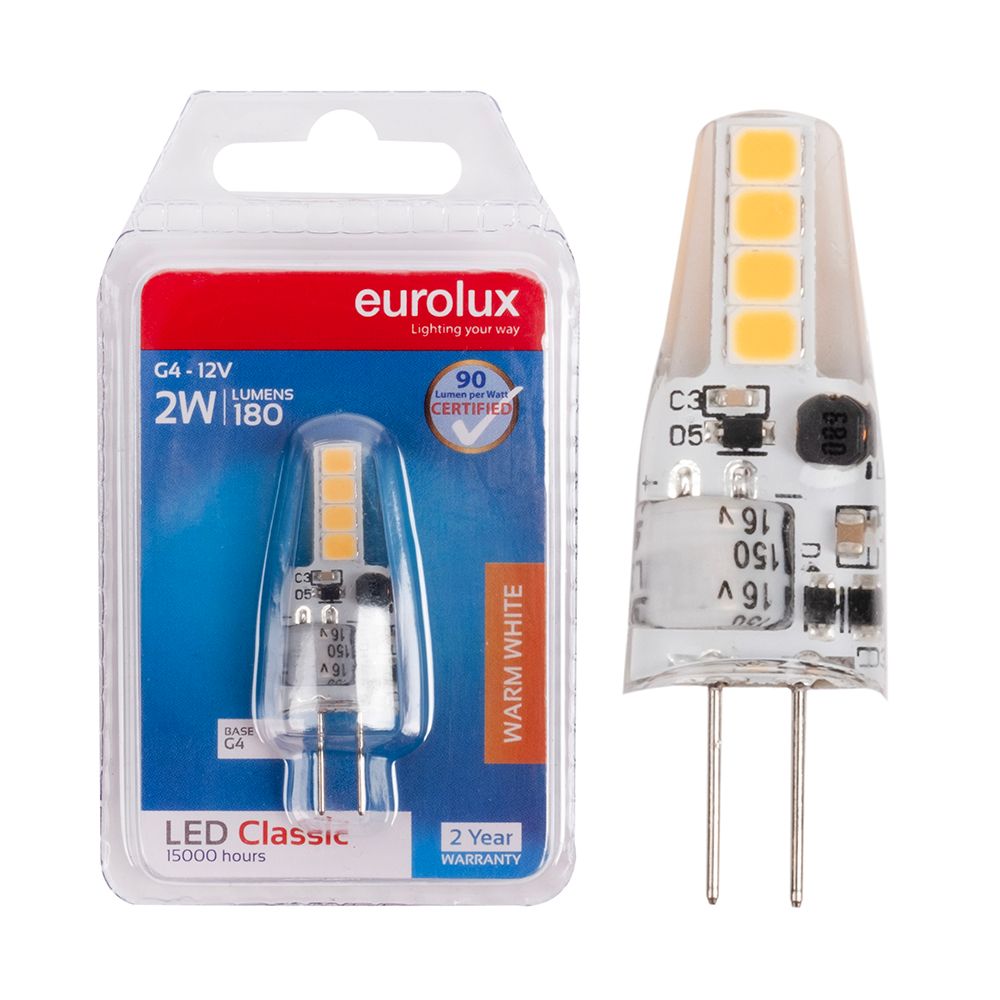

The Eurolux G948WW is a compact 2W G4 LED bi-pin lamp designed for compatible 12V low-voltage fittings requiring warm white 3000K light. It delivers 184lm and is suited to decorative and compact luminaires.
Key Features
- 2W G4 LED lamp with 184lm luminous output.
- Warm white 3000K colour temperature for ambient lighting.
- 12V low-voltage operation for compatible G4 fittings.
- 360° beam angle for broad light distribution.
- 15,000-hour rated lamp life and 2-year warranty.
Applications
- Compatible 12V decorative fittings using G4 lamp holders.
- Cabinet, display and compact accent lighting.
- Replacement applications where transformer and fitting compatibility are confirmed.
Why Choose This Product?
The G948WW provides a compact low-voltage LED option for compatible G4 fittings, with warm white output and broad light distribution.
Important Notes
- Designed for 12V operation only.
- Eurolux recommends magnetic transformers for optimal performance. Electronic transformers may be used after compatibility has been confirmed.
- Not dimmable.
- Confirm transformer and fitting compatibility before installation.
Technical Specifications
| Specification |
Detail |
| Brand |
Eurolux |
| Model |
G948WW |
| Product Type |
G4 LED Bi-Pin Lamp |
| Base |
G4 |
| Rated Power |
2W |
| Voltage |
12V |
| Luminous Flux |
184lm |
| Colour Temperature |
3000K |
| CRI |
70 |
| Beam Angle |
360° |
| Lamp Life |
15,000 hours |
| Length |
30.5mm |
| Width |
11.4mm |
| Depth |
7mm |
| Warranty |
2 years |
| Barcode |
6007328364658 |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
