Product Overview

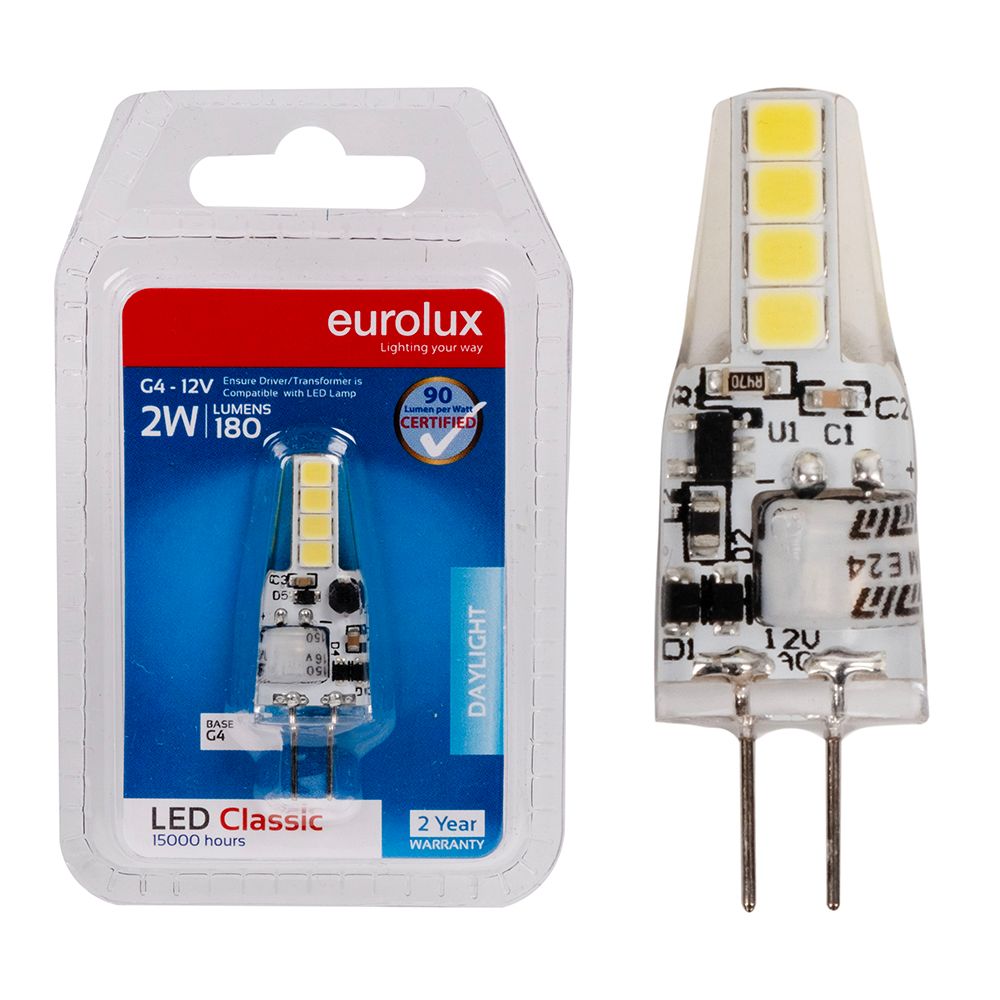

The Eurolux G948DL is a compact 2W G4 LED bi-pin lamp designed for compatible 12V low-voltage fittings requiring daylight light. It delivers 184lm and is suited to decorative and compact luminaires.
Key Features
- 2W G4 LED lamp with 184lm luminous output.
- 6000K daylight colour temperature.
- 12V low-voltage operation for compatible G4 fittings.
- 360° beam angle for broad light distribution.
- 15,000-hour rated lamp life and 2-year warranty.
Applications
- Compatible 12V decorative fittings using G4 lamp holders.
- Cabinet, display and compact accent lighting.
- Replacement applications where transformer and fitting compatibility are confirmed.
Why Choose This Product?
The G948DL provides a compact low-voltage LED option for compatible G4 fittings, with daylight output and broad light distribution.
Important Notes
- Designed for 12V operation only.
- Eurolux recommends magnetic transformers for optimal performance. Electronic transformers may be used after compatibility has been confirmed.
- Not dimmable.
- Confirm transformer and fitting compatibility before installation.
Technical Specifications
| Specification |
Detail |
| Brand |
Eurolux |
| Model |
G948DL |
| Product Type |
G4 LED Bi-Pin Lamp |
| Base |
G4 |
| Rated Power |
2W |
| Voltage |
12V |
| Luminous Flux |
184lm |
| Colour Temperature |
6000K |
| CRI |
70 |
| Beam Angle |
360° |
| Lamp Life |
15,000 hours |
| Length |
30.5mm |
| Width |
11.4mm |
| Depth |
7mm |
| Warranty |
2 years |
| Barcode |
6007328364733 |
