Product Description:

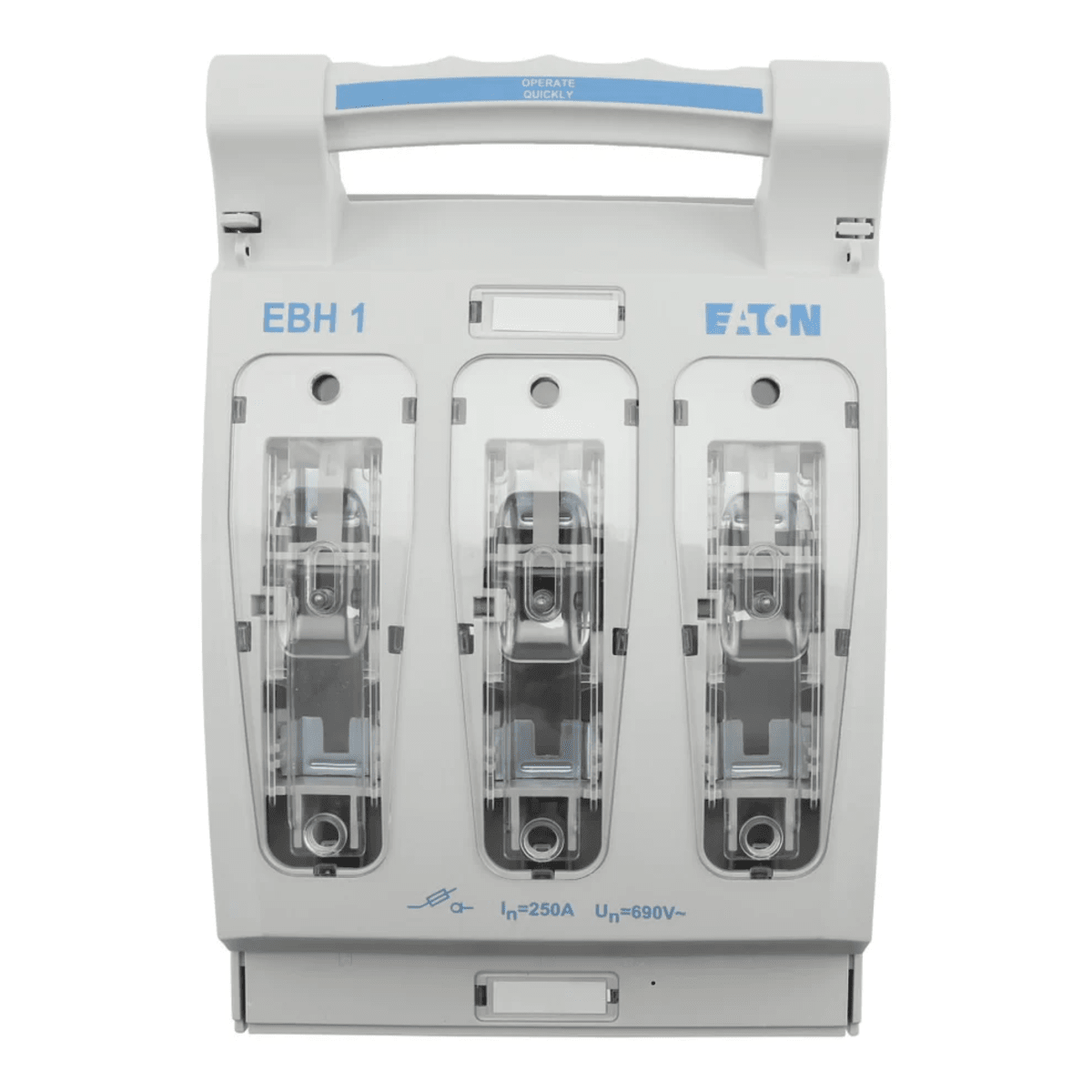

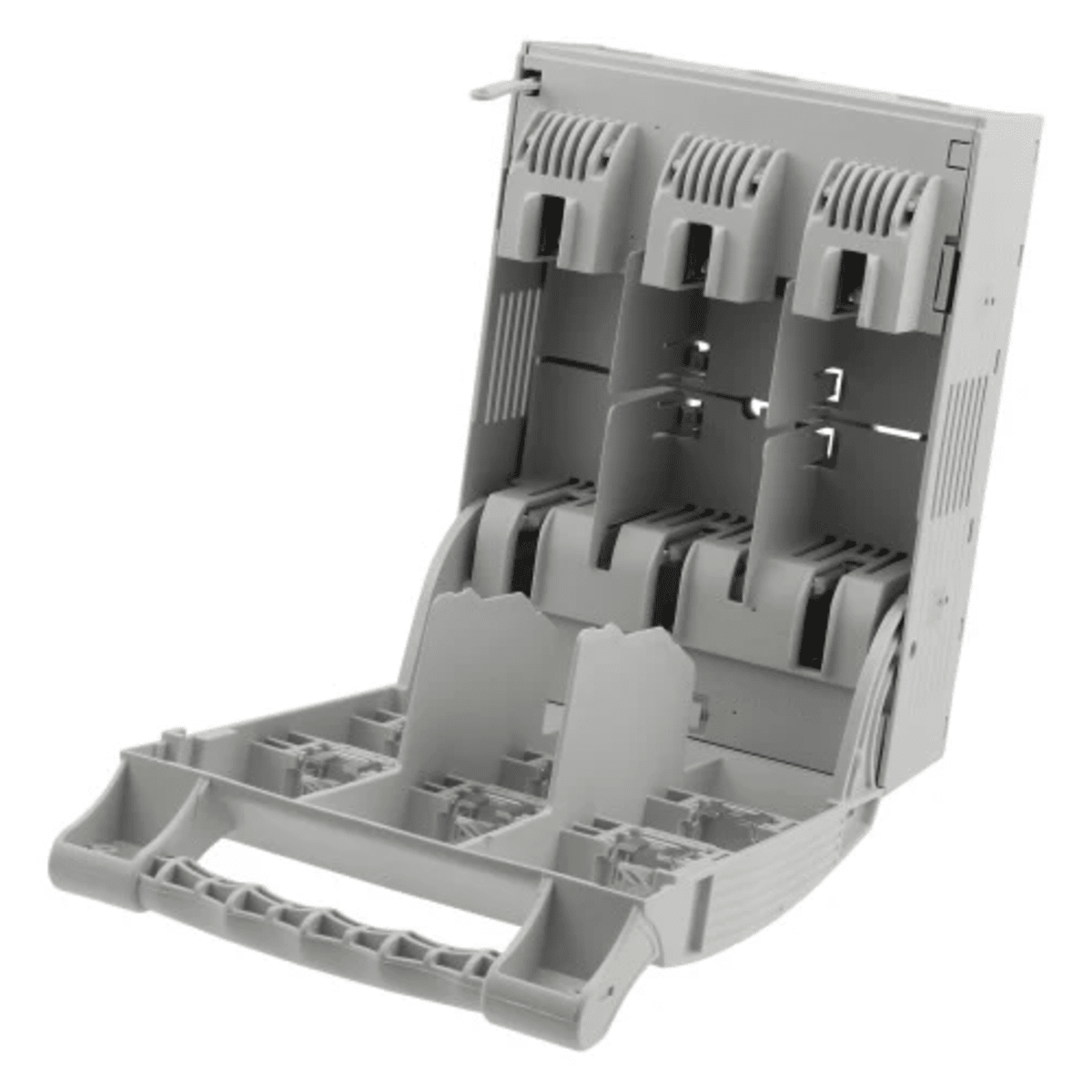

This NH1 is the ideal battery fuse disconnector to be used as DC protection between the battery and inverter. This fuse holder can facilitate various fuse ratings up to 250A
This 125A fuse link provides overcurrent protection for inverter-battery systems. Check the inverter and battery operating limits to ensure the right fuse link is selected. This fuse link is ideal for usage with the NH1 fuse holder.
Specifications:
- Rated voltage:
- 690 V a.c. IEC
- 1000 V a.c. UL for SD1-D only
- Rated current: 160 to 1600 A
- Rated for fuse links with breaking capacity of 120 kA
- Switching mode: 3pole switchable
- Poles: 3
- Construction size NH1
- Rated current A 125
- Rated Voltage: 500V
- Voltage type AC
- Rated switching capacity kA 120 Utilization category gL/gG (cable protection/equipment protection)
- Type of fuse status indicator Combination fuse status indicator
- Insulated metal gripping lugs (IMGL) No
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Sustainable Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
